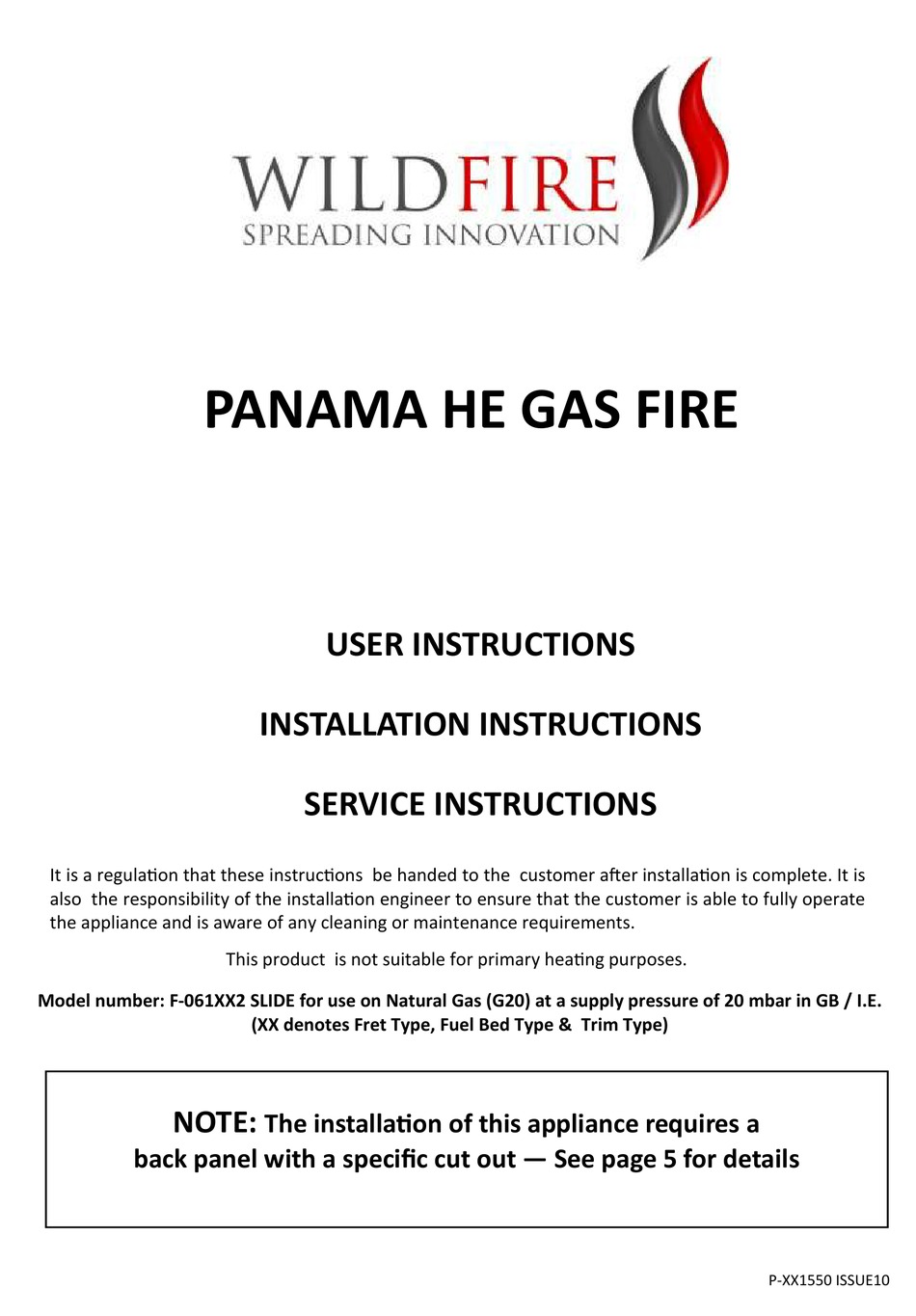

PANAMA HE GAS FIRE

USER INSTRUCTIONS

INSTALLATION INSTRUCTIONS

SERVICE INSTRUCTIONS

It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is
also the responsibility of the installaon engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
This product is not suitable for primary heang purposes.
Model number: F-061XX2 SLIDE for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
(XX denotes Fret Type, Fuel Bed Type & Trim Type)
NOTE:
The installaon of this appliance requires a
back panel with a specific cut out — See page 5 for details
P-XX1550 ISSUE10

Advertisement

loading
Need help?

Need help?

Do you have a question about the PANAMA HE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wildfire PANAMA HE

Summary of Contents for Wildfire PANAMA HE

  • Page 1: User Instructions

     PANAMA HE GAS FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is also the responsibility of the installaon engineer to ensure that the customer is able to fully operate the appliance and is aware of any cleaning or maintenance requirements.
  • Page 2   CONTENTS Regulatory Informaon and Installaon Requirements …………………………... 3 Installaon Requirements (connued) ………………………………………………….. 4 Sing the Appliance ……………………………………………………………………………… 5 Installaon of ‘fixing plate’ assembly …..………………………………………………. 6 Installing the Back Panel …………………………………………………………………………. 7 Fixing the Appliance ……………………………………………………………………………… Connecng the Appliance to the Gas Supply ……………………………………….. Front glass removal and replacement …………………………………………………….
  • Page 3 REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS  THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE. This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in accordance to these installaon instrucons and the GAS SAFETY (Installaon & Use) REGULATIONS 1998 as amended.
  • Page 4 No purpose made venlaon is normally required for this appliance when installed in G.B. If the appliance is  being installed in I.E then refer to I.S 813:1996 (Domesc Gas Installaon—Naonal Standards Authority of  Ireland). Venlaon areas (if applicable) should be checked periodically to ensure there is no obstrucon, even though none is normally required for this appliance.
  • Page 5 SITING THE APPLIANCE Fireplace Opening IMPORTANT NOTE: This appliance DOES NOT seal onto a marble or stone back panel. The fire is installed directly onto the  FIXING PLATE assembly. This is detailed on pages 6 & 7. This FIXING PLATE is also used to support the marble or stone back panel. This back panel should have the following cut- out : WIDTH 560mm—580mm HEIGHT: 585mm—605mm...
  • Page 6 Checking the Flue Use a smoke pellet prior to the appliance installaon to ensure the viability of the flue and check that the smoke can be  seen being emied from the terminal / chimney pot outside. There must be no leakage of smoke through the structure of the chimney/flue during or aer the smoke pellet test and it is important to check inside upstairs rooms adjacent to the chimney/flue.
  • Page 7 Installing the Back Panel  Ideally the back panel should be constructed from a 3 piece panel and reassembled using suitable materials. This type of back panel will ensure that no corner cracking occurs over me. A ’loose’ 3 piece panel can be installed but care should be taken to ensure that the joint line is square.
  • Page 8 Now unroll and fit the rock wool as shown below. This should sit around the perimeter of the FIXING PLATE. Under NO circumstances should this fireplace be commissioned without the installaon of the Rockwool provided.  The mantel can now be fied, and the back panel adjusted into the correct posion.
  • Page 9 Prepare the Appliance for Installaon Remove the glass front panel and the ceramic components from the unit (see glass removal instrucons on page 10).  Remove the burner tray from the appliance. (For instrucons see page 14). If the concealed installaon method is chosen, there are three oponal entry points at the rear/side of the appliance. The relevant ‘knock-out’...
  • Page 10  Removal of the front glass panel. The top glass clamp is held in place with 3 screws. This panel is concealed behind the top cover strip which is held in place by two magnets. The two magnets are fied to the top glass clamp as shown in this diagram.
  • Page 11 Install the ceramics into the appliance according to these instrucons—see pages 17 through to 23. Refit the glass panel and the decorave strip to cover the screws and retaining clamp—See page 10  Test the operang pressure of the appliance by aaching a pressure gauge to the test point of the appliance. This connecon should take place when the appliance is OFF.
  • Page 12 Compleng the Installaon of the Appliance  Remove the protecve covering (if applicable) from the face of the decorave trim. To fit the trim to the appliance the four adjustable mounng features at the rear of the trim need to be set. To allow for a tolerance with the installaon the trim can be adjusted to sit fore and a...
  • Page 13 Appliance Technical Informaon Gas Type : Natural Gas Category : I2H Inlet Pressure: (Cold) 20mbar  Heat Input Gross : 5.3kW Injector : 69 Desnaon Countries : GB/ IE HEALTH AND SAFETY NOTICE This appliance uses fuel effect pieces manufactured from Refractory Ceramic Fibres (RCF). Care must be taken to avoid excessive exposure to these materials as they may cause irritaon to the eyes, skin, nose and throat.
  • Page 14 Cleaning the Appliance (connued)  Trim, Fret and Painted Metal Parts There are a variety of trim and fret opons which may have been supplied with your appliance and these are normally a plated material on a steel substrate. It is important that no abrasive cleaners or chemical agents are used in the cleaning of these components.
  • Page 15 Removal / Replacement of Gas Carrying Components (connued)  Slide Control Valve Remove the locknut from the front of the valve. Undo the three (3) nuts around the periphery of the valve body—Gas Inlet / Burner / Pilot. Remove the thermocouple nut from the back of the valve. The valve can be removed and serviced / replaced as necessary.
  • Page 16 OPERATING INSTRUCTIONS This appliance is available with two operang methods, namely manual control and slide control. The following  instrucons detail both methods of operaon however the basic operaon of the appliance involves the ignion of a pilot burner (See page 11 for spillage monitoring details—ODS), then the control of the main burner with LOW and HIGH sengs.
  • Page 17 FUEL BED LAYOUT The following instrucons detail how the ceramic fuel bed and loose components are to be installed  onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into posion, if it does not fit easily then you are not fing the part correctly.
  • Page 18 Step 3 Fit the Right Hand front ceramic rail in front of the burner as shown in the picture below.  Step 4 Fit Log A onto the fuel bed as shown in the picture below.
  • Page 19 Step 5 Fit Log B onto the fuel bed as shown in the picture below.  Step 6 Fit Log C onto the fuel bed as shown in the picture below.
  • Page 20 Step 7 Fit Log D onto the fuel bed as shown in the picture below.  Step 8 Fit Log E onto the fuel bed as shown in the picture below.
  • Page 21 Step 9 Fit Log F onto the fuel bed as shown in the picture below.  Step 10 Fit Log G onto the fuel bed as shown in the picture below.
  • Page 22 Step 11 Fit Log H onto the fuel bed as shown in the picture below. (Note this log sits parally hidden behind log ‘F’)  Step 12 Fit Log  onto the fuel bed as shown in the picture below.
  • Page 23 Step 13 Fit Log J onto the fuel bed as shown in the picture below.  Now refit the glass panel, retainer and trim cover—see page 10 for details Fit Trim to Appliance The trim has four adjustable fings on the rear face. By winding the screws in and out, the posion of the trim can be adjusted.
  • Page 24  Product Fiche Manufacturer : Hearth Products Ltd Model No. F-061XX2 Fuel Type Natural Gas I2H Energy Efficiency Class Indirect Heang Funconality Direct Heat Output kW 4.2kW Indirect Heat Output kW Useful Energy Efficiency (NCV) High : 87.2% Useful Energy Efficiency (NCV) Nominal Heat Output High : 4.2kW Nominal Heat Output...
  • Page 25  User Replaceable Parts Part Number Descripon P-XX11701 Ceramic Fuel Bed—Driwood P-XX11711 Ceramic Front Rail-LH Driwood P-XX11721 Ceramic Front Rail-RH Driwood P-XX1173A (BCDEFGHIJ) Ceramic Log/Twig A—J (order separately) P-XX1390 Glass Panel (Silk Screened) To order spare parts for your appliance visit www.hearthproducts.co.uk/sparesshop or call us directly on 01785 225401 It is important to note that the above spares are user serviceable components that can be changed by the customer.
