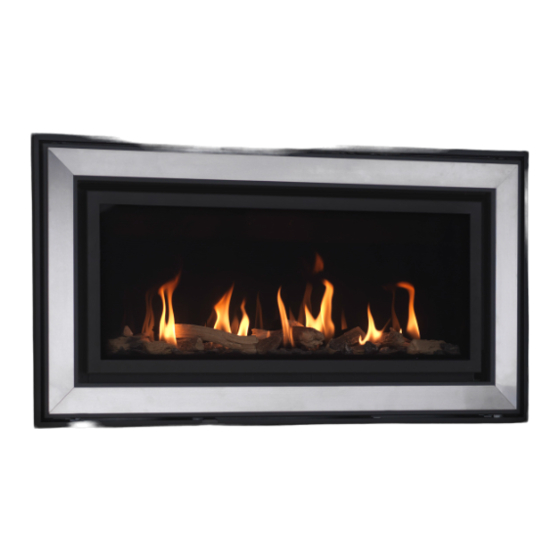

BF960SL BALANCED FLUE
ROOM SEALED GAS FIRE
USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
SERVICE INSTRUCTIONS
Do not use this appliance if the front glass panel is broken, removed or fi ed incorrectly.
It is a regula on that these instruc ons be handed to the customer a er installa on is complete. It is
also the responsibility of the installa on engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
Model numbers: F-111XX2 SLIDE for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
(X denotes trim type)
THESE INSTRUCTIONS ARE TO BE LEFT WITH
THE CUSTOMER AFTER INSTALLATION
P-XX1584 ISSUE 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-111 2 SLIDE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Wildfire F-111 2 SLIDE Series

Summary of Contents for Wildfire F-111 2 SLIDE Series

  • Page 1 BF960SL BALANCED FLUE ROOM SEALED GAS FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS Do not use this appliance if the front glass panel is broken, removed or fi ed incorrectly. It is a regula on that these instruc ons be handed to the customer a er installa on is complete. It is also the responsibility of the installa on engineer to ensure that the customer is able to fully operate the appliance and is aware of any cleaning or maintenance requirements.

  • Page 2: Table Of Contents

    CONTENTS Regulatory Informa on and Installa on Requirements …………………………... 3 Regulatory requirements for Flue Terminal installa on……..…………………….. 4 Si ng the Appliance ……………………………………..………………………………………… 5 Preparing the appliance for installa on ………………………………………………… 6 Opening the glass door ………………………..…………………………………………….. 6 Removing the glass door ………………………..…………………………………………….. 7 Remove the appliance form the outer box ………………………………………………...

  • Page 3: Regulatory Informa On And Installa On Requirements

    REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE. This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in accordance to these installa on instruc ons and the GAS SAFETY (Installa on & Use) REGULATIONS 1998 as amended.

  • Page 4: Regulatory Requirements For Flue Terminal Installa On

    REGULATORY REQUIREMENTS FOR FLUE TERMINAL LOCATION Figure 1 Terminal Posi on Minimum Distance Directly below an opening, airbrick, opening window etc. 300mm Above an opening, air brick, opening window etc. 300mm Horizontally to an opening, air brick opening window etc. 300mm Below gu ers, soil pipes or drains.

  • Page 5: Si Ng The Appliance

    SITING THE APPLIANCE AND PREPARING THE OPENING Figure 2 Figure 2 shows the maximum length flue a ached to the appliance. If the distance from the front face of the inside wall to the outside wall exceeds 725mm the installa on cannot proceed. In most installa ons the flue sec on will need to be cut to the appropriate size.

  • Page 6: Preparing The Appliance For Installa On

    PREPARING THE APPLIANCE FOR INSTALLATION Unpack the appliance carefully from the packaging. This product is supplied in TWO cartons. Ensure it is not damaged and that all of the components are included. The cartons should include: Appliance and (Trim is fi ed to the appliance) - See below for trim removal instruc ons. Ceramic pack (Behind the glass) - See below for glass door opening instruc ons.

  • Page 7: Removing The Glass Door

    REMOVING THE GLASS DOOR With the door open and held firmly, slide the glass assembly to the and it will release from hand hinge. Move this corner towards you so it is clear of the hinge. With the door held firmly, slide the glass assembly to the right and it will release from...

  • Page 8: Remove The Appliance Form The Outer Box

    REMOVING THE APPLIANCE FROM THE OUTER BOX The appliance is installed into an outer box. This box provides the housing for the installa on. The outer box will be installed into the wall/cavity and provides full moun ng features for the appliance and allows easy installa on and removal of the gas appliance at a later me should it be necessary.

  • Page 9: Preparing The Cavity Wall

    PREPARING THE CAVITY WALL It is necessary to install a lintel above the cavity that will be created to install the appliance. The hole which must be created in the block wall should be 1220mm wide by 690mm high. The outer box requires only 1200mm x 670mm however an extra 10mm should be allowed around the perimeter to line the cavity with non combus ble board—this prevents heat from entering the cavity.

  • Page 10: Preparing The Gas Supply

    IPREPARE THE GAS SUPPLY The gas supply can be prepared for a concealed fi ng from the lower right side or rear of the outer-box. . In all installa on condi ons the gas connec on should be provided using 8mm (O/D) copper tubing. The relevant ‘knock-out’...

  • Page 11: Installa On Into Masonry Cavity Wall

    IINSTALLING THE OUTER BOX INTO A MASONRY CAVITY WALL The outer box should be installed temporarily into the new opening to check for fit and alignment. Once this has been established, use the hole at the back of this box to mark the posi on of the flue.
  • Page 12 Remove the outer box and drill the hole for the flue (6” diameter) and drill the securing holes with an appropriate masonry drill. ø When drilling the hole it is advisable that a pilot hole is drilled first. The 6” hole should be drilled to approxi- mately half the brick depth then complete the hole by drilling from the outside of the building, this will ensure that the entry and exit of the hole are clean.

  • Page 13: Installa On Into Studwork

    IINSTALLATION INTO STUDWORK The following drawing details the minimum clearances and installa on requirements from combus ble materials when the appliance is installed into a studded wall. A chamber should be created for the appliance outer box installa on. chamber should manufactured using...

  • Page 14: Fit The Horizontal Flue Sec On To The Appliance

    FIT THE HORIZONTAL FLUE SECTION TO THE APPLIANCE DO NOT CUT THE HORIZONTAL FLUE UNTIL THESE NOTES ABOVE HAVE BEEN READ AND FOLLOWED. The horizontal flue sec on must be securely fi ed to the appliance BEFORE it is fixed into the outer box. Using the informa on below calculate the cut length of this por on of the flue.

  • Page 15: Installing The Appliance Into The Outer Box

    IINSTALLING THE APPLIANCE INTO THE OUTER BOX Once the outer box is installed securely in place and the wall has been made good, final prepara ons to fit the appliance can now be made. A dummy run (see previous page) should be carried out so that the gas supply pipe can be cut to the correct length.

  • Page 16: Fi Ng The Terminal

    FITTING THE TERMINAL The flue terminal cover plate can now be fi ed to the outside wall. Slide the moun ng plate over the outer flue, checking the 3 holes line up with the flue, then mark the 4 posi ons to fix the moun ng plate to the wall.

  • Page 17: Connec Ng The Terminal Guard

    FITTING THE TERMINAL GUARD The terminal guard can now be assembled and fi ed the outside wall. In England and Wales the terminal guard supplied with this appliance must be installed if the terminal could come into contact with people moving around the building or if the terminal could become damaged. If being installed into the republic of Ireland, refer to the current edi on of IS813 ‘Domes c Gas Installa ons’...

  • Page 18: Appliance Data Informa On

    Appliance Data Natural Gas Gas Type Ba ery Type (Electronic Igniter) Inlet Pressure 20mbar ±1mbar Wall Depth (Min)* 270 mm Gas Connec on 8mm pipe Wall Depth (Max)* 725 mm Injector (2 off) Ø 1.37 Fire Depth 186mm P-XX1317 Class 5 Pilot NOx Class Input High Rate (Gross)

  • Page 19: Install The Ceramics And Refit The Glass Door Assembly

    INSTALL THE CERAMICS AND REFIT THE GLASS DOOR ASSEMBLY HEALTH AND SAFETY NOTICE This appliance uses fuel effect pieces manufactured from Refractory Ceramic Fibres (RCF). Care must be taken to avoid excessive exposure to these materials as they may cause irrita on to the eyes, skin, nose and throat. When Handling avoid inhaling and contact with skin and eyes.

  • Page 20: Checking Opera On Of Appliance

    CHECK APPLIANCE OPERATION Ensure that gas is turned on at the gas meter and purge the air from the gas line. Test the opera ng pressure of the appliance by a aching a pressure gauge to the test point of the appliance. This connec on should take place when the appliance is OFF.

  • Page 21: Refit The Outer Trim

    REFIT THE TRIM AND OUTER TRIM Comple ng the Installa on of the Appliance Remove the protec ve covering (if applicable) from the face of the decora ve trim. Fit the trim to the appliance very carefully ensuring the outer trim clip assemblies sit correctly within the outer box. This advice must also be passed onto the consumer to ensure that they are aware of trim removal and reinstalla on for ba ery changes—see page 20 for details of electronic igniter loca on.

  • Page 22: Important Customer Informa On

    IMPORTANT CUSTOMER INFORMATION THE INSTALLER MUST INFORM THE CUSTOMER OF THE FOLLOWING TO COMPLETE THE INSTALLATION Demonstrate the ligh ng of the appliance and the controls to control the heat se ngs. Demonstrate how to ex nguish the fire. Demonstrate the removal of the trim and how to reinstall correctly. Demonstrate igniter ba er replacement procedure.

  • Page 23: General Maintenance

    GENERAL MAINTENANCE Maintenance of the Appliance The following procedures can and should be performed by the customer at regular intervals depending upon use of the appliance. Cleaning the Appliance Ensure the fire is turned off and has been allowed to cool for a period of at least one hour. Metal Parts Metal parts can be cleaned with a slightly damp cloth, once wiped, any moisture should be removed with a so clean cloth.

  • Page 24: Service Instruc Ons

    SERVICE INSTRUCTIONS The following procedures can and should only be performed by a Gas Safe registered installer. This appliance should be serviced annually by a Gas Safe registered installer. Removal / Replacement of Gas Carrying Components. The removal and replacement of all the gas carrying components will require the removal of the outer trim (see page 6) where access can then be gained to all gas carrying components.
  • Page 25 To access the controls, the side module should be released and swung outwards. A er the isolator valve has been restricted, remove the four screws shown in the first diagram. Pull the control module off the loca ng pin as shown in the second diagram. The slide control valve, igniter and both microswitches can now be accessed.
  • Page 26 Control Valve Removal/Replacement Remove the two (2) screws and the inlet tube nut. Remove the gas tube. Remove the corrugated tube nut. Remove the pilot tube nut. Remove the valve locking nut and the two (2) screws. Remove the connector from the valve. Re-assemble in reverse order.
  • Page 27 Replacement of the Pilot Remove the two(2) screws to remove the pilot cover. Undo the pilot gas supply from the base of the pilot. Remove the two (2) screws securing the pilot Remove the thermocouple nut from the back of the valve. Remove the two (2) screws securing the mi- croswitch.
  • Page 28 Replacement of the Injector Remove the four (4) screws to remove the log loca on pins. Remove the side glass and side liners out as shown below. Li the back glass upwards, lt the lower edge outwards. Remove the back glass panels and the back liners.
  • Page 29 Replacement of the Injector—con nued Remove six (6) screws to remove ash-pan. Remove the three screws and the burner can be released. The injectors can now be removed. Only replacement components supplied by the manufacturer should be used in the service of this appliance. Contact details for Hearth Products Ltd can be found on the back page of these instruc ons.

  • Page 30: User Opera Ng Instruc Ons

    USER OPERATING INSTRUCTIONS The appliance is operated using a slide lever which is concealed within the trim assembly to the lower right of the glass door. Press the lever firmly with thumb or index finger and it will pop out towards you. The opera on is de- tailed below.

  • Page 31: Fuel Bed Layout Instruc Ons

    FUEL BED LAYOUT The following instruc ons detail how the ceramic fuel components are to be installed onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into posi on, if it does not fit easily then you are not fi...
  • Page 32 LOG IDENTIFICATION Important note: the picture below shows each log and its iden fying le er which should be used to place the logs detailed in the next few pages. There are two (2) LOG ‘B’ components which are iden cal. This is not a misprint.
  • Page 33 Iden fy and posi on log ‘A’ as shown in the picture Iden fy and posi on log ‘B’ as shown in the picture below. Iden fy and posi on log ‘C’ as shown in the picture below.
  • Page 34 Iden fy and posi on the other log ‘B’ as shown in the picture below. Iden fy and posi on log ‘D’ as shown in the picture below. Iden fy and posi on log ‘E’ as shown in the picture below.
  • Page 35 Iden fy and posi on log ’F’ as shown in the picture below. Iden fy and posi on log ’G’ as shown in the picture below. Iden fy and posi on log ’H’ as shown in the picture below.
  • Page 36 Iden fy and posi on log ’I’ as shown in the picture below. Iden fy and posi on log ’J’ as shown in the picture below. Iden fy and posi on log ’K’ as shown in the picture below.
  • Page 37 Iden fy and posi on log ’L’ as shown in the picture below. Iden fy and posi on log ’M’ as shown in the picture below. Place the ceramic bark around the ash pan base as shown below. Take care not to place any bark around the pilot burner assembly.

  • Page 38: Appliance Commissioning Checklist

    APPLIANCE COMMISSIONING CHECKLIST It is the installers responsibility to complete the following checklist when commissioning this appliance. The informa on recorded on this page may be requested at the me of any warranty call made. If the informa on is not made available it may affect the warranty support for the customers appliance.

  • Page 39: Product Fiche

    Product Fiche Manufacturer : Hearth Products Ltd Model No. F-111XX2 Fuel Type Natural Gas I2H Energy Efficiency Class Indirect Hea ng Func onality Direct Heat Output kW 4.6kW Indirect Heat Output kW Useful Energy Efficiency (NCV) High : 86% Useful Energy Efficiency (NCV) Nominal Heat Output High : 4.6kW Nominal Heat Output...

  • Page 40: Spare Parts List

    User Replaceable Parts Part Number Descrip on P-XX1221-A Ceramic Log A P-XX1221-B Ceramic Log B P-XX1221-C Ceramic Log C P-XX1221-D Ceramic Log D P-XX1222 Volcanic Rock Pack P-XX1223 Ceramic Bark Pack Hearth Products Ltd Unit 14 Tollgate Industrial Estate, Stafford, ST16 3SU Www.hearthproducts.co.uk Tel: 01785 225401 Fax: 01785 225501 Email: info@hearthproducts.co.uk...
