CRESSIDA HE GAS FIRE
USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
SERVICE INSTRUCTIONS
It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is
also the responsibility of the installaon engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
This product is not suitable for primary heang purposes.
Model numbers: F-0510X1 MANUAL for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
Model numbers: F-0510X2 SLIDE for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
(X denotes trim type)
P-XX1540 ISSUE 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRESSIDA HE GAS FIRE and is the answer not in the manual?

Questions and answers

Related Manuals for Wildfire CRESSIDA HE GAS FIRE

Summary of Contents for Wildfire CRESSIDA HE GAS FIRE

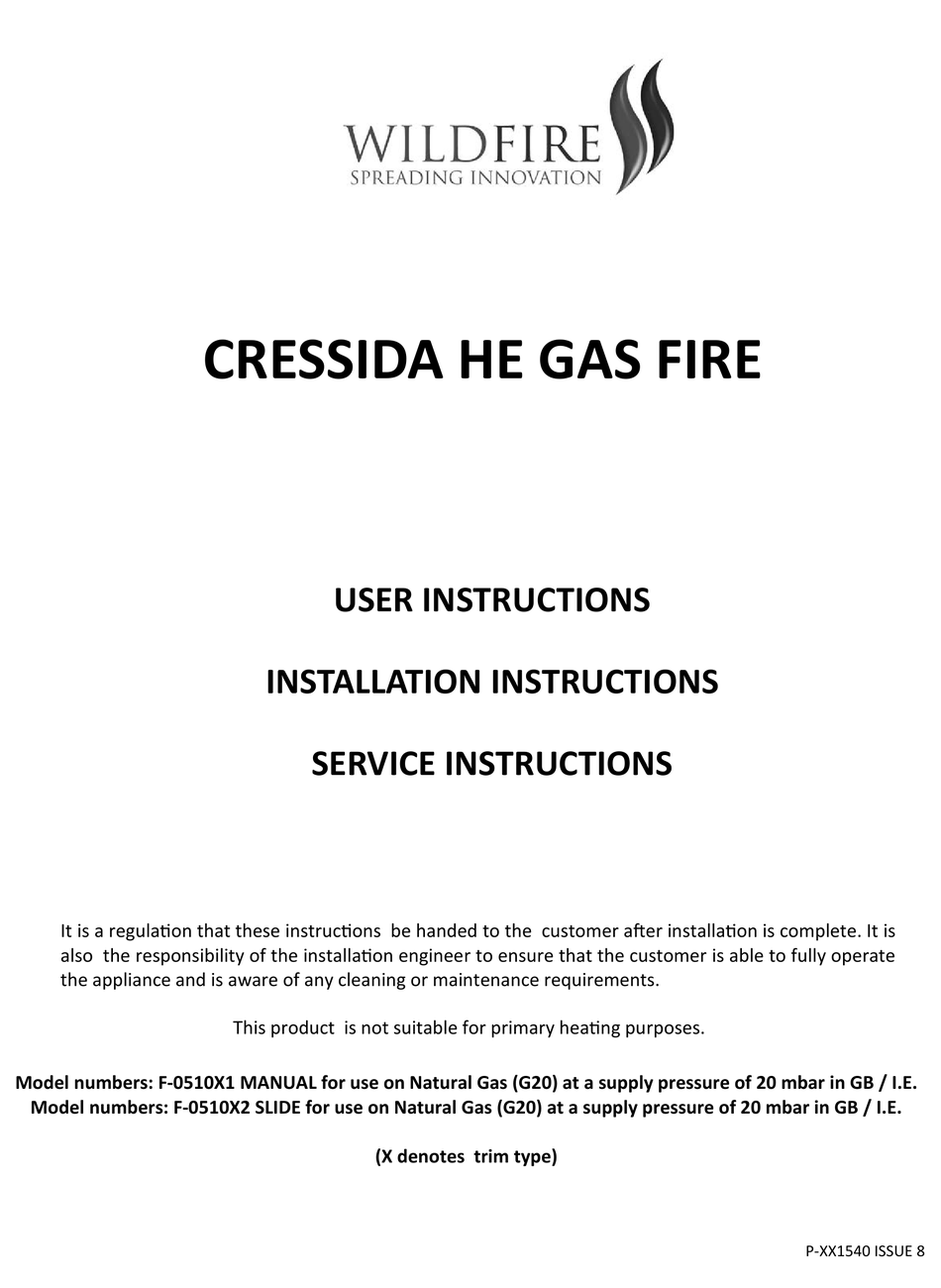

  • Page 1  CRESSIDA HE GAS FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is also the responsibility of the installaon engineer to ensure that the customer is able to fully operate the appliance and is aware of any cleaning or maintenance requirements.

  • Page 2: Table Of Contents

      CONTENTS Regulatory Informaon and Installaon Requirements …………………………... 3 Installaon Requirements (connued) ………………………………………………….. 4 Sing the Appliance ……………………………………………………………………………… 5 Front glass removal and replacement ……………………………………………………. 8 Fixing the Appliance ...………………………………………………………………………...… 7 Connecng the Appliance to the Gas Supply ……………………………………….. 9 Checking Operaon of Appliance …………………………………………………………...

  • Page 3: Regulatory InformaOn And InstallaOn Requirements

    REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS  THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE. This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in accordance to these installaon instrucons and the GAS SAFETY (Installaon & Use) REGULATIONS 1998 as amended.

  • Page 4: InstallaOn Requirements (ConNued)

    No purpose made venlaon is normally required for this appliance when installed in G.B. If the appliance is being installed in I.E then refer to I.S 813:1996 (Domesc Gas Installaon—Naonal Standards Authority of  Ireland). Venlaon areas (if applicable) should be checked periodically to ensure there is no obstrucon, ...

  • Page 5: SiNg The Appliance

    SITING THE APPLIANCE Fireplace Opening  This fire is suitable for fing to non-combusble fireplace back panels with a temperature rang of at least 150 . (This is also known as CLASS”O” - If in doubt please contact the supplier of the back panel supplier to check suitability.
  • Page 6 Fireplace Opening (Hole in the Wall Installaon)  This appliance MUST be installed in accordance with all relevant secons of document ‘J’ of the building regulaons. This appliance may be installed such that the base of the appliance sit on the surface of a fireplace opening at least 110mm up from the floor—this dimension ensures that there is no incandescent material (flame or ceramic impinged by flame) is less than 225mm from the floor.—This is a requirement of document ‘J’of the building regulaons.

  • Page 7: Fixing The Appliance

    Fixing the Appliance. If the appliance is being installed with a spacer kit, this should be aached to the appliance using the screws included and the foam seal which is supplied with the appliance should be affixed to the rear face of the spacer. Do not use any ...

  • Page 8: Front Glass Removal And Replacement

     Removal of the front glass panel. The top glass clamp is held in place with 3 screws. This panel is concealed behind the top cover strip which is held in place by two magnets. The two magnets are fied to the top glass clamp as shown in this diagram.

  • Page 9: ConnecNg The Appliance To The Gas Supply

    Connecng the Appliance to the Gas Supply The gas supply can be connected to the appliance by a concealed fing from the rear. In all installaon condions the gas connecon should be provided using 8mm (O/D) copper tubing. If the concealed installaon method is chosen, there are ...

  • Page 10: CompleNg The InstallaOn

    Compleng the Installaon of the Appliance  Remove the protecve covering (if applicable) from the face of the decorave trim. Fit the trim to the appliance with the magnets provided. One magnet should be placed in each corner of the trim at the top of the appliance and on each side about 120mm from the base of the appliance.

  • Page 11: Appliance Technical InformaOn

    Maintenance of the Appliance The following procedures can and should be performed by the customer at regular intervals depending upon use of the appliance.  Appliance Technical Informaon Gas Type : Natural Gas Category : I2H Inlet Pressure: (Cold) 20mbar Heat Input Gross : 5.3kW Injector : 072 Desnaon Countries : GB/ IE...

  • Page 12: Service InstrucOns

    Cleaning the Appliance (connued) Trim, Fret and Painted Metal Parts  There are a variety of trim and fret opons which may have been supplied with your appliance and these are normally a plated material on a steel substrate. It is important that no abrasive cleaners or chemical agents are used in the cleaning of these components.
  • Page 13 Removal / Replacement of Gas Carrying Components (connued) Manual Control Valve Remove the control knob from the valve.  Remove the locknut from the front of the valve. Undo the three nuts around the periphery of the valve body—Gas Inlet / Burner / Pilot Remove the thermocouple nut from the back of the valve.

  • Page 14: User InstrucOns

    OPERATING INSTRUCTIONS This appliance is available with two operang methods, namely manual control and slide control. The following  instrucons detail both methods of operaon however the basic operaon of the appliance involves the ignion of a pilot burner (See page 7 for spillage monitoring details—ODS), then the control of the main burner with LOW and HIGH sengs.

  • Page 15: Coal Layout InstrucOns

    FUEL BED LAYOUT (COAL) The following instrucons detail how the ceramic fuel bed and loose components are to be installed onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can  easily be broken.
  • Page 16 Step 4  Fit the coal piece B shown in the picture below. The arrow should point towards the back of the fire. Step 5 Fit the coal piece C shown in the picture below. The arrow should point towards the back of the fire.
  • Page 17 Step 6 Fit the coal piece D shown in the picture below. The arrow should point towards the back of the fire.  Step 7 Finally fit the last two loose coals at the back of the fire as shown in the picture below.

  • Page 18: Product Fiche

     Product Fiche Manufacturer : Hearth Products Ltd Model No. F-051XX1 F-051XX2 Fuel Type Natural Gas I2H Natural Gas I2H Energy Efficiency Class Indirect Heang Funconality Direct Heat Output kW 4.2kW 4.2kW Indirect Heat Output kW Useful Energy Efficiency (NCV) High : 87.2% High : 87.2% Useful Energy Efficiency (NCV)

  • Page 19: Spare Parts List

     User Replaceable Parts Part Number Descripon P-XX11601 Ceramic Rear Fuel Bed-Coal and Coals P-XX11611 Ceramic Front Fuel Bed P-XX1380 Glass Panel (Silk Screened) To order spare parts for your appliance visit www.hearthproducts.co.uk/sparesshop or call us directly on 01785 225401 It is important to note that the above spares are user serviceable components that can be changed by the customer.
