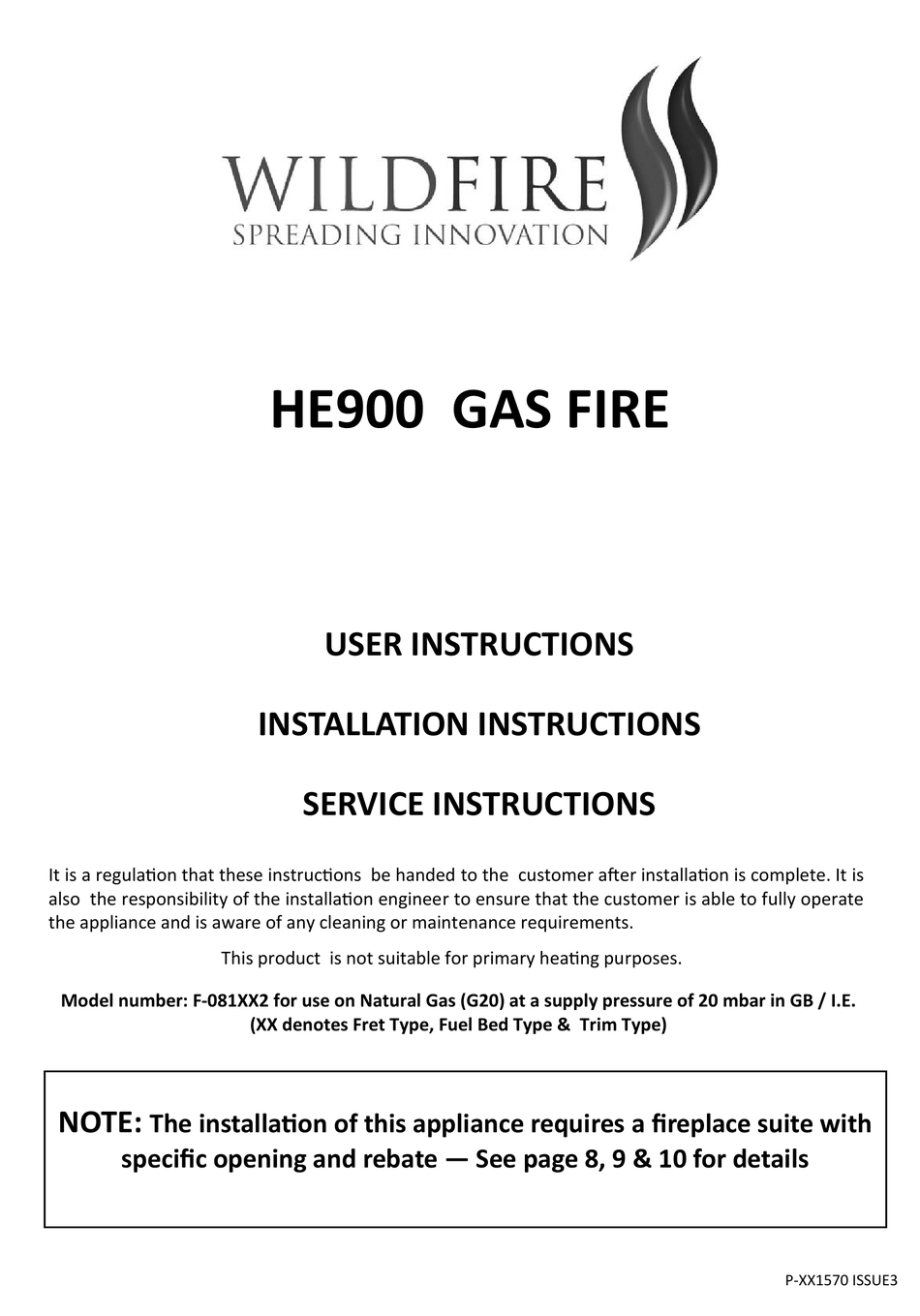

HE900 GAS FIRE

USER INSTRUCTIONS

INSTALLATION INSTRUCTIONS

SERVICE INSTRUCTIONS

It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is
also the responsibility of the installaon engineer to ensure that the customer is able to fully operate
the appliance and is aware of any cleaning or maintenance requirements.
This product is not suitable for primary heang purposes.
Model number: F-081XX2 for use on Natural Gas (G20) at a supply pressure of 20 mbar in GB / I.E.
(XX denotes Fret Type, Fuel Bed Type & Trim Type)
NOTE:
The installaon of this appliance requires a fireplace suite with
specific opening and rebate — See page 8, 9 & 10 for details
P-XX1570 ISSUE3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE900 and is the answer not in the manual?

Questions and answers

Related Manuals for Wildfire HE900

Summary of Contents for Wildfire HE900

  • Page 1: User Instructions

     HE900 GAS FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS It is a regulaon that these instrucons be handed to the customer aer installaon is complete. It is also the responsibility of the installaon engineer to ensure that the customer is able to fully operate the appliance and is aware of any cleaning or maintenance requirements.
  • Page 2 CONTENTS  Regulatory Informaon and Installaon Requirements …………………….. ……. 3 Installaon Requirements (connued) ……………………………………………….….. 4 Methods of Installaon ………………………………………………………………………….. 5 Mantel Crical Dimensions ……………………………………………………………………. 8 Marble Access Cover Dimensions …………………………………………………………... 10 Sing the Appliance ………………………………………………………………………….……. 11 Fixing the Precast Spacer ……………………………………………………………………..… 12 Installing the Fixing Plate (Precast Installaons) ………………………….…………...
  • Page 3 REGULATORY INFORMATION AND INSTALLATION REQUIREMENTS THE FOLLOWING MUST BE NOTED PRIOR TO THE INSTALLATION OF THIS APPLIANCE. This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in  accordance to these installaon instrucons and the GAS SAFETY (Installaon & Use) REGULATIONS 1998 as amended.
  • Page 4 No purpose made venlaon is normally required for this appliance when installed in G.B. If the appliance is  being installed in I.E then refer to I.S 813:1996 (Domesc Gas Installaon—Naonal Standards Authority of  Ireland). Venlaon areas (if applicable) should be checked periodically to ensure there is no obstrucon, even though none is normally required for this appliance.
  • Page 5 INSTALLATION TYPE A  These diagrams detail the installaon of the appliance into a standard 16” x 22” opening. This method of installaon is suitable for both Class 1 and Class 2 installaons. This installaon requires a 900 STANDARD MANTEL. For crical dimensions see page 8. The 900 FIXING PLATE supplied is firmly aached to the builders opening aer the hearth has been installed.

  • Page 6: Mantel CriCal Dimensions

    INSTALLATION TYPE B  These diagrams detail the installaon of the appliance into a Pre Cast Flue block and a 900 STANDARD MANTEL is being fied. For details on 900 STANDARD MANTEL crical dimensions see page 8 The 900 PRECAST SPACER KIT is used to create an interface between the precast flue and the 900 FIXING PLATE.
  • Page 7 INSTALLATION TYPE C  These diagrams detail the installaon of the appliance into a Pre Cast Flue where a 900 PRECAST MANTEL is being fied For details on 900 PRECAST MANTEL crical dimensions see page 9. The 900 PRECAST SPACER KIT is used to create an interface between the precast flue and the 900 FIXING PLATE.
  • Page 8 900 STANDARD MANTEL CRITICAL DIMENSIONS  This Mantel MUST be constructed from Non-Combusble Materials. These diagrams detail the CRITICAL dimensions which must be achieved for correct installaon of the appliance when being installed into a 900 STANDARD MANTEL.. NOTE: Front Lower Marble Access Plate Dimensions and installaon for BOTH 900 STANDARD &...
  • Page 9 900 PRECAST MANTEL CRITICAL DIMENSIONS  This Mantel MUST be constructed from Non-Combusble Materials. These diagrams detail the CRITICAL dimensions which must be achieved for correct installaon of the appliance when being installed into a 900 PRECAST MANTEL NOTE: Front Lower Marble Access Plate Dimensions and installaon for BOTH 900 STANDARD &...
  • Page 10 MARBLE ACCESS COVER CRITICAL DIMENSIONS  This Access Cover MUST be constructed from Non-Combusble Materials. These diagrams detail the CRITICAL dimensions of the MARBLE/STONE ACCESS COVER This informaon is to be used for both 900 STANDARD & 900 PRECAST MANTELS DESCRIPTION mm (min) mm (max)
  • Page 11 SITING THE APPLIANCE Fireplace Opening  IMPORTANT NOTE: This appliance DOES NOT seal onto a marble or stone back panel. The fire is installed directly into the FIXING PLATE assembly. Installaon of this fixing plate is detailed on the preceding pages 5,6 & 7. The mantel should be constructed to the requirements shown on the preceding pages 8,9 &...

  • Page 12: Fixing The Precast Spacer

    Checking the Flue Use a smoke pellet prior to the appliance installaon to ensure the viability of the flue and check that the smoke can be seen being emied from the terminal / chimney pot outside. There must be no leakage of smoke through the structure of the ...
  • Page 13 INSTALLING THE FIXING PLATE (PRECAST INSTALLATIONS ONLY )  For Class 1 and Class 2 installaons see page 14. PRECAST INSTALLATIONS Installing the FIXING PLATE The FIXING PLATE can now be screwed to the PRECAST SPACER. Use the 7 screws supplied with the PRECAST SPACER kit to secure as shown above. Once screwed into posion ensure this FIXING PLATE is sealed airght against the PRECAST SPACER with a suitable heatproof silicone externally around the frame and internally around the fireplace opening using fire cement or other suitable non combusble fondant...
  • Page 14 INSTALLING THE FIXING PLATE (STANDARD INSTALLATIONS )  STANDARD INSTALLATIONS The mantel can now be fied, and the back panel adjusted into the correct posion. Installing the FIXING PLATE The FIXING PLATE can now be screwed to the wall symmetrically around the fireplace opening and hearth. Use the 7 screws and plugs supplied in the appliance installaon kit.

  • Page 15: Installing The Mantel

    INSTALLING THE MANTEL (ALL INSTALLATIONS )  Installing the MANTEL The mantel should be placed symmetrically around the FIXING PLATE . Carefully measure the distance between the mantel opening and the front edge of the FIXING PLATE to double check. Failure to fit the mantel in the correct posion will prevent the front trim assembly from fing properly.

  • Page 16: Installing The Appliance

    INSTALLING THE APPLIANCE AS HIW (Hole In the Wall) THIS APPLIANCE CAN BE INSTALLED AS A HOLE IN THE WALL INSTALLATION. FULL DETAILS OF THIS TYPE OF INSTALLATION ARE  SUPPLIED WITH THE HIW INSTALLATION KIT. THE INSTALLER MUST INFORM THE USER OF THE FOLLOWING IMPORTANT NOTICES AFTER A HOLE IN THE WALL INSTALLATION HAS BEEN UNDERTAKEN.
  • Page 17 GLASS PANEL / FRONT TRIM INSTALLATION Removal and replacement of the front glass panel.  The glass panel is held in place with 10 screws. When removing the screws it is advised to remove the side screws first, and finally the top two screws. Take care to hold the glass panel whilst removing the final screw.

  • Page 18: Spillage Test

    Install the ceramics into the appliance according to these instrucons—see pages 24 through to 27. Refit the glass panel and front trim cover—See page 17 Test the operang pressure of the appliance by aaching a pressure gauge to the test point of the appliance. This connecon ...
  • Page 19 COMPLETING THE INSTALLATION  THE INSTALLER MUST INFORM THE CUSTOMER OF THE FOLLOWING TO COMPLETE THE INSTALLATION Demonstrate the lighng of the appliance and the controls to select the heat sengs. Demonstrate how to exnguish the fire. Demonstrate the removal of the trim and marble access cover and how to reinstall correctly. Demonstrate the locaon of the baery igniter and how to replace the baery.
  • Page 20  Appliance Technical Informaon Gas Type : Natural Gas Category : I2H Inlet Pressure: (Cold) 20mbar  Heat Input Gross : 6.75kW Injector : 74 Desnaon Countries : GB/ IE Efficiency Class: 1 NOx Class: 5 Efficiency Net: 83% HEALTH AND SAFETY NOTICE This appliance uses fuel effect pieces manufactured from Refractory Ceramic Fibres (RCF).
  • Page 21 SERVICING THE APPLIANCE  The following procedures can and should only be performed by a GAS SAFE registered installer. This appliance should be serviced annually by a GAS SAFE registered installer. Removal / Replacement of Gas Carrying Components. The removal and replacement of all the gas carrying components will require the removal of the burner tray. The following informaon details the removal of this tray.
  • Page 22 Removal / Replacement of Gas Carrying Components (connued) Slide Control Valve  Remove the locknut from the front of the valve. Undo the three (3) nuts around the periphery of the valve body—Gas Inlet / Burner / Pilot. Remove the thermocouple nut from the back of the valve. The valve can be removed and serviced / replaced as necessary.
  • Page 23 OPERATING INSTRUCTIONS  SLIDE CONTROL OPERATION Push the control lever to the le to the IGN symbol . The spark generator should cause a repeve spark at the pilot and the pilot and main burner should ignite. If the pilot does not light aer 10 seconds then slide the control lever to the right towards the OFF symbol and wait for 3 minutes.
  • Page 24 FUEL BED LAYOUT The following instrucons detail how the Rockwool, ceramic fuel bed and loose components are to be  installed onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into posion, if it does not fit easily then you are not fing the part correctly.
  • Page 25 Step 4  Fit Log B onto the burner locaon brackets as shown below. Step 5 Fit Central Log C onto the fuel bed as shown in the picture below.
  • Page 26 Step 6 Fit Log D onto the fuel bed as shown in the picture below.  Step 7 Fit Log E onto the fuel bed as shown in the picture below.
  • Page 27 Step 8 Fit Log F onto the fuel bed as shown in the picture below.  Step 9 Fit Log G onto the fuel bed as shown in the picture below. Now refit the glass panel, front trim and marble access cover—see page 17 for details...

  • Page 28: Product Fiche

     Product Fiche Manufacturer : Hearth Products Ltd Model No. F-081XX2 Fuel Type Natural Gas I2H Energy Efficiency Class Indirect Heang Funconality Direct Heat Output kW 5.1kW Indirect Heat Output kW Useful Energy Efficiency (NCV) High : 83.0% Useful Energy Efficiency (NCV) Nominal Heat Output High : 5.1kW Nominal Heat Output...
  • Page 29  User Replaceable Parts Part Number Descripon P-XX1191 Ceramic Front Rail P-XX1191A Ceramic Rear Log A P-XX1191B Ceramic Centre Log B P-XX1191C Ceramic Log C P-XX1191D Ceramic Log D P-XX1191E Ceramic Log E P-XX1191F Ceramic Log F P-XX1191G Ceramic Log G P-XX1191Z Ceramic Gasket Seal for Burner Tray (See page 21) P-XX1191H...
