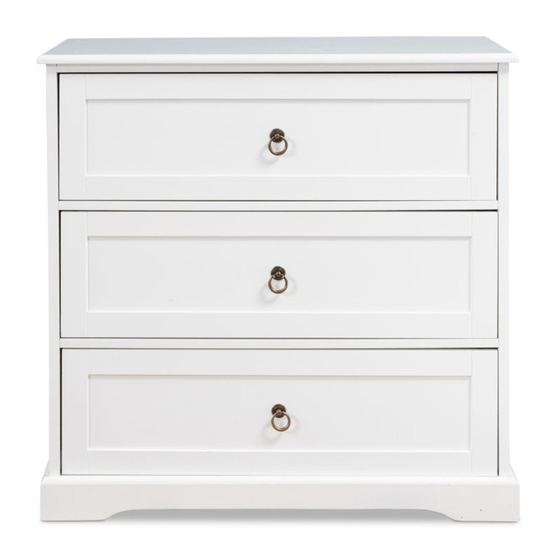

Hamptons Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
C
B
long
bolt
locking
dowel
screw x 4
x41
nut x 41
x22
G
H
handle
L + R
L + R
x 3
slide rail
slide rail
x6
x6

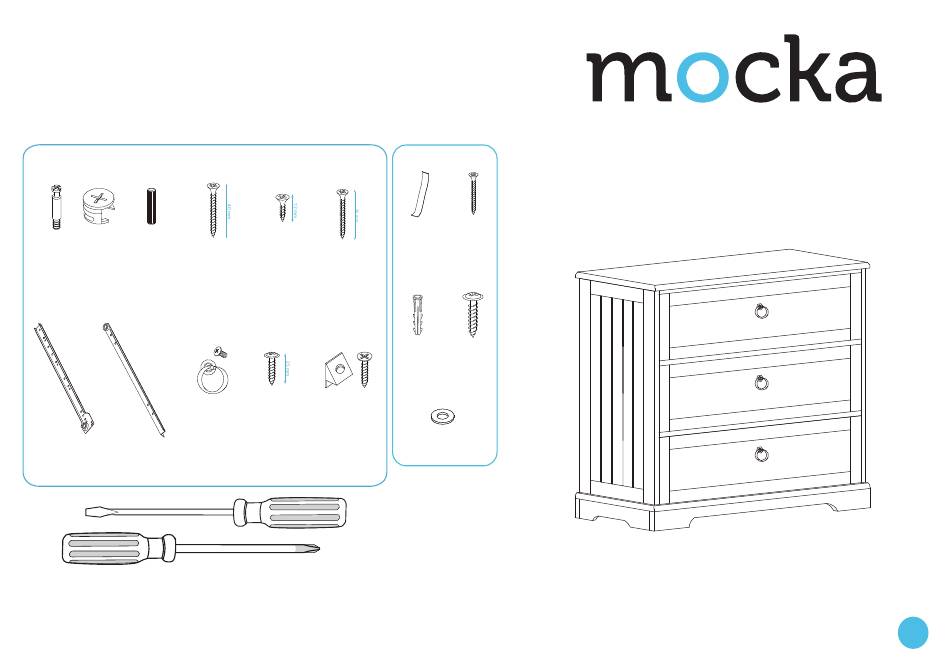

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
F
E
D
small
long
screw x24
screw x 15
I
J
P
1
small
wedge
screw x3
x12
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
W
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Hamptons Three Drawer
Summary of Contents for Mocka Hamptons Three Drawer
- Page 1 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 3 x left slide rails (G) to panel [3] and secure with 6 x small screws (E). Insert 6 x bolts (A) into panel [1]. Attach 3 x screws (J) into panels [6] and [1].
- Page 3 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [5]. Attach panels [5] to panels [3] and [4] Attach 16 x bolts (A) into panels [2] and [16]. Attach 4 x dowels (C) to panels [15] and secure with 4 x locking nuts (B).
- Page 4 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 6 x dowels (C) into panels [2], [15] and [16]. Attach panels [2], [15] Attach panel [7] to panels [2] and secure with 2 x locking nuts (B).
- Page 5 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3] and [4]. Attach panel [1] to panels [3], Slide panels [13] between the grooves on panels [3], [4] and [7] to form the [4] and [7] and secure with 6 x locking nuts (B).
- Page 6 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x3) Drawers (x3) Insert 3 x bolts (A) into panels [8] . Slide panels [9] between the grooves on panels [10] and [11] to form the base of the drawer as shown.
- Page 7 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x3) Drawers (x3) Attach panels [12] to panels [10] and [11], secure with 15 x Attach 6 x slide rails (H) to panels [10] and [11] and secure with 12 x small Tighten with a screwdriver.
- Page 8 Hamptons Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Strap Washer wall anchor wall screw wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (W).
