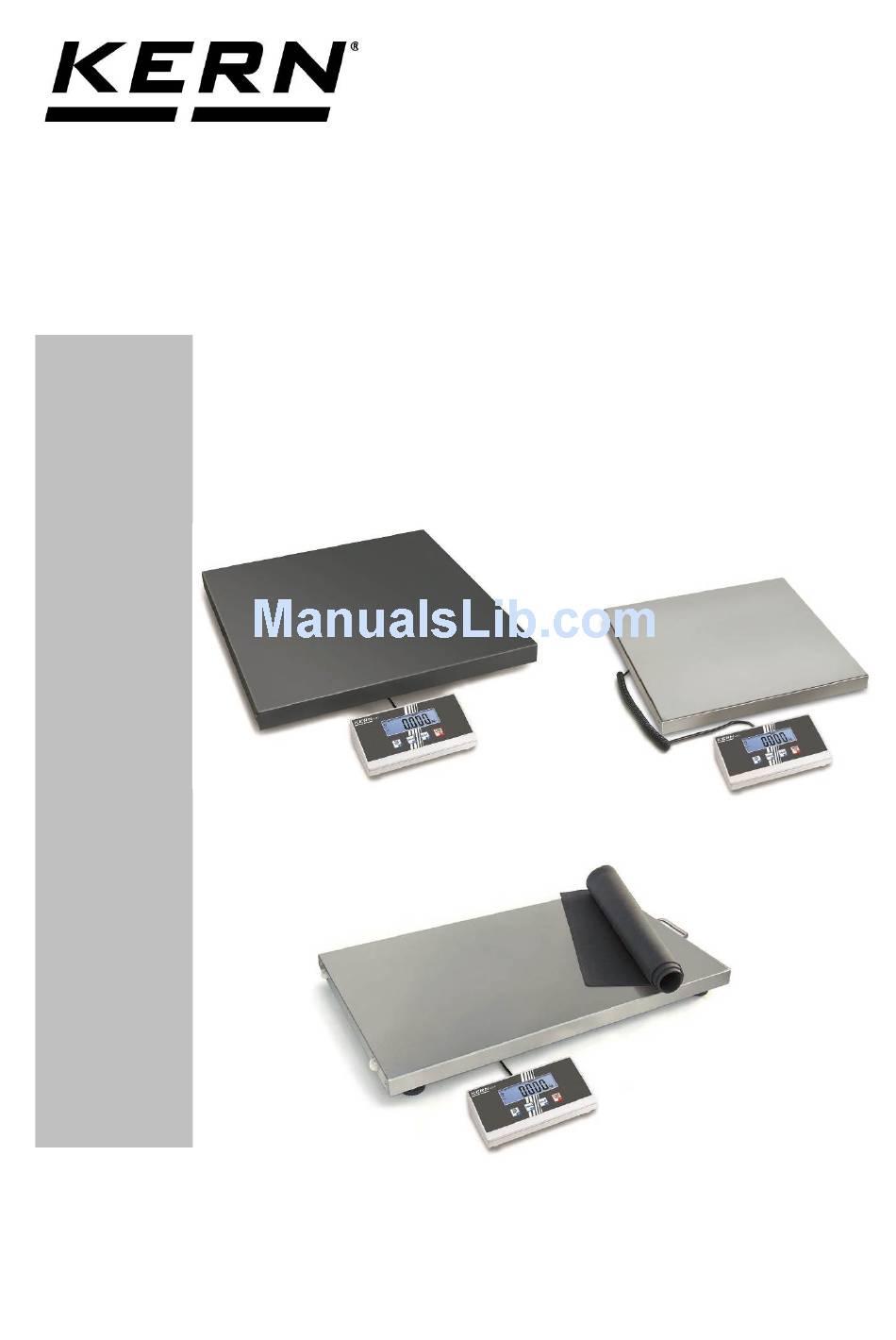

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Platform/floor scales KERN EOB / EOE / EOS Type EOB_B Type EOE_B Type EOS_B Version 4.1 2017-04 EOB / EOE / EOS-BA-e-1741...
- Page 2 KERN EOB / EOE / EOS Version 4.1 2017-04 Operating instructions Platform/floor scales Contents Technical data ....................4 Appliance overview ..................10 Overview of display ....................12 Keyboard overview ....................13 Basic Information (General) ................ 14 Proper use ........................14 Improper Use ......................14 Warranty ........................14...
- Page 3 Menu ......................24 Navigation in the menu .....................24 Menu overview......................24 Servicing, maintenance, disposal .............. 26 10.1 Cleaning ........................26 10.2 Servicing, maintenance .....................26 10.3 Disposal ........................26 Error messages, troubleshooting guide ............ 26 Declaration of conformity ................28 EOB / EOE / EOS -BA-e-1741...
-
Page 4: Technical Data
1 Technical data Models KERN EOB KERN (Type) 10K-3B 30K-2B 60K-2B 60K-2LB Trademark 15K5 35K10 60K20 60K20L Readability (d) 10 g 20 g 20 g Weighing range (max) 15 kg 35 kg 60 kg 60 kg Reproducibility 10 g 20 g... - Page 5 KERN (Type) 100K-2B 100K-2LB 100K-2XLB Trademark 150K50 150K-50L 150K50XL Readability (d) 50 g 50 g 50 g Weighing range (max) 150 kg 150 kg 150 kg Reproducibility 50 g 50 g 50 g Linearity ± 100 g ± 100 g ±...
- Page 6 KERN (Type) 300K-1B 300K-1LB 300K-1XLB Trademark 300K100 300K100L 300K100XL Readability (d) 100 g 100 g 100 g Weighing range (max) 300 kg 300 kg 300 kg Reproducibility 100 g 100 g 100 g Linearity ± 200 g ± 200 g ±...
- Page 7 Models KERN EOE KERN (Type) 10K-3B 30K-2B 60K-2B 60K-2LB 100K-2B Trademark 10K-3 30K-2 60K-2 60K-2L 100K-2 Readability (d) 10 g 20 g 20 g 50 g Weighing range (max) 15 kg 35 kg 60 kg 60 kg 150 kg Reproducibility...
- Page 8 KERN (Type) 100K-2LB 100K- 300K-1B 300K-1LB 300K- 2XLB 1XLB Trademark 300K100XL 150K50L 150K50XL 300K100 300K100L Readability (d) 50 g 50 g 100 g 100 g 100 g Weighing range (max) 150 kg 150 kg 300 kg 300 kg 300 kg...
- Page 9 Models KERN EOS KERN (Type) 100K-2BXL 300K-1BXL Trademark 150K50XL 150K50XL Readability (d) 50 g 100 g Weighing range (max) 150 kg 300 kg Reproducibility 50 g 100 g Linearity ± 100 g ± 200 g Recommended 100 kg 300 kg...
-
Page 10: Appliance Overview
2 Appliance overview Models EOB Weighing pan, stainless steel Models EOE Weighing pan varnished steel EOB / EOE / EOS -BA-e-1741... - Page 11 Models EOS • Weighing pan, stainless steel • Anti-slip rubber mat Comfortable transport due to 2 rollers and 1 grab handle EOB / EOE / EOS -BA-e-1741...
-
Page 12: Overview Of Display
2.1 Overview of display Example EOB: Description Balance zero display: Should the balance not display exactly zero despite empty scale pan, press the TARE button. The balance will be set to zero after a short standby time. Stability display: If the display shows the stability display [0] the balance is in a stable status. If the status is instable the [0] display disappears. -
Page 13: Keyboard Overview
2.2 Keyboard overview Button Function Turn on/off balance Hold/ animal weighing function Tare balance Switch-over weighing unit Back to weighing mode, or to menu EOB / EOE / EOS -BA-e-1741... -
Page 14: Basic Information (General)
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case •... -
Page 15: Monitoring Of Test Resources
Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. -
Page 16: Unpacking, Setup And Commissioning
6 Unpacking, Setup and Commissioning 6.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: •... -
Page 17: Scope Of Delivery / Serial Accessories
Check, whether the voltage acceptance on the scales is set correctly. Do not connect the scales to the power grid unless the information on the scales (sticker) matches the local mains voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN. Important: ... -
Page 18: Adjustment
7 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). - Page 19 The specified adjustment weight is displayed flashing. (example) Place the adjustment weight centrically on the weighing pan and confirm with . "CAL Y" will flash briefly and a signalling tone will sound. Adjustment will be performed. Then the balance returns automatically into the weighing mode.
-
Page 20: Operation
8 Operation 8.1 Start-up Start balance by pressing The balance will carry out a self-test As soon as the weight display appears, the balance is ready for weighing. Should the balance not display exactly zero despite empty weighing pan, press the button. -
Page 21: Taring
8.3 Taring Place an empty weighing container, the weight of the weighing container will be displayed. Press , the zero display appears. The indicator [NET] is displayed. The tare weight is saved until it is deleted. Weigh the material, the net weight will be indicated. The taring process can be repeated any number of times, e.g. -
Page 22: Hold Function (Animal Weighing Function)
8.4 Hold function (animal weighing function) The balance has an integrated animal weighing function (mean value calculation). Using this function it is possible to weigh domestic or small animals exactly (min. load 1% of the max. one), although they do not stand quiet on the weighing pan. Place weighing goods and press . -
Page 23: Determination Of The Number Of Pieces
8.5 Determination of the number of pieces Before it is possible to determine the number of pieces by means of the scales, it is necessary to specify the average piece weight (unit weight), the so-called reference value. In order to do it, one shall place the specific number of pieces being counted up. -
Page 24: Eob / Eoe / Eo -Ba-E-
9 Menu 9.1 Navigation in the menu Press at the same time in weighing mode. [UF 1] is displayed. Press as often as necessary until the required function is displayed. Confirm selected function by . The current setting will be displayed. Select the desired parameter with . - Page 25 Hold function (animal weighing function) Adjustable: Average value is calculated for unstable weighing conditions from approx. 20 d Average value is calculated for unstable weighing conditions from approx. 5 d Average value is calculated for unstable weighing conditions from approx. 10 d Auto Zero Adjustable: ...
-
Page 26: Servicing, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 10.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 10.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. - Page 27 In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Help: Fault Possible cause • The balance is not switched on. The displayed weight does not glow.
-
Page 28: Declaration Of Conformity
12 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce EOB / EOE / EOS -BA-e-1741...
