- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Industrial Scales KERN EOC Version 2.0 2019-06 EOC-BA-e-1920...
-
Page 2: Table Of Contents
KERN EOC Version 2.0 2019-06 Operating manual Platform balance Contents Technical data .................... 4 Appliance overview .................. 12 Overview of display ......................15 Keyboard overview ......................16 2.2.1 Numerical input via the navigation buttons ................17 Basic Information (General) ..............18 Proper use........................... - Page 3 Data output RS232C ................. 48 10.1 Technical data ........................48 10.2 Printer mode ........................48 10.3 Remote control instructions ..................... 49 10.4 KERN Communications Protocol (KERN Interface Protocol) ........50 Instant help ....................51 Declaration of conformity ................ 52 EOC-BA-e-1920...
-
Page 4: Technical Data
1 Technical data KERN EOC 6K-3 EOC 6K-4A EOC 10K-3 Readability (d) 1 g / 2 g 0.5 g 2 g / 5 g Weighing range (max) 3 kg / 6 kg 6 kg 6 kg / 12 kg Reproducibility 1 g / 2 g 0.5 g... - Page 5 KERN EOC 10K-3A EOC 10K-4 EOC 20K-3A Readability (d) 0,2 g / 0,5 g Weighing range (max) 12 kg 6 kg / 15 kg 24 kg Reproducibility 0.2 g / 0.5 g Linearity ± 3 g ± 0.6 g / 1.5 g ±...
- Page 6 - 10° C ..+ 40° C Humidity of air max. 80 % (not condensing) Terminal (B x D x H) mm 268 x 115 x 80 Platform (B x D x H )mm 300x300x110 300x300x110 500x400x120 500x400x120 Weight kg (net) EOC-BA-e-1920...
- Page 7 KERN EOC 60K-2 EOC 60K-2L EOC 60K-3 Readability (d) 10 g / 20 g 10 g / 20 g 1 g / 2 g Weighing range (max) 30 kg / 60 kg 30 kg / 60 kg 30 kg / 60 kg...
- Page 8 KERN EOC 60K-3A EOC 60K-3L EOC 100K-2 Readability (d) 1 g / 2 g 20 g / 50 g Weighing range (max) 60 kg 30 kg / 60 kg 60 kg / 150 kg Reproducibility 1 g / 2 g...
- Page 9 KERN EOC 100K-2L EOC 100K-2A EOC 100K-2XL Readability (d) 20 g / 50 g 10 g 20 g / 50 g Weighing range (max) 60 kg / 150 kg 120 kg 60 kg / 150 kg Reproducibility 20 g / 50 g...
- Page 10 KERN EOC 100K-2XXL EOC 100K-3 EOC 100K-3L Readability (d) 20 g / 50 g 2 g / 5 g 2 g / 5 g Weighing range (max) 60 kg / 150 kg 60 kg / 150 kg 60 kg / 150 kg...
- Page 11 KERN EOC 300K-2 EOC 300K-2L EOC 300K-3 Readability (d) 50 g / 100 g 50 g / 100 g 5 g / 10 g Weighing range (max) 150 kg / 300 kg 150 kg / 300 kg 150 kg / 300 kg...
-
Page 12: Appliance Overview
2 Appliance overview 1. Weight display 2. Weighing unit 3. Keyboard 4. Connection of mains adapter 5. RS232 6. Input connection load cell cable 7. Battery compartment 8. Guide rail support base / stand EOC-BA-e-1920... - Page 13 Support base/Wall fixture Balance EOC with assembly plate EOC-A03 (optional): 1. Platform 2. Fitting panel 3. Display Unit EOC-BA-e-1920...

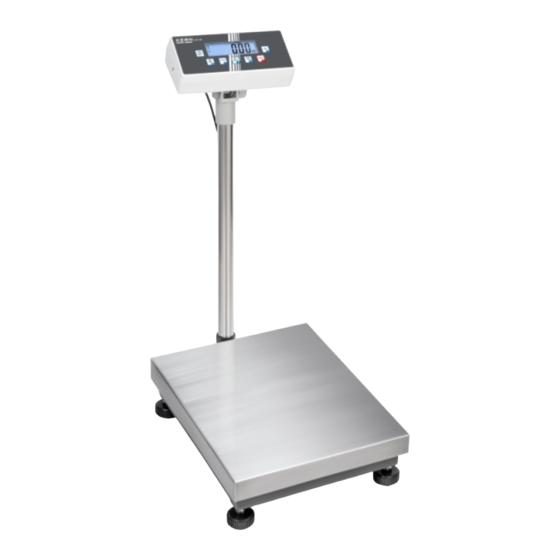

- Page 14 Balance with tripod EOC-A05 (optional): Flip/Flop evaluation device: May be positioned in many ways, e.g. self-supporting or screwed into the wall (optional). By turning the upper housing shell, the angle of the display as well as the exit position of the cables can be changed.
-
Page 15: Overview Of Display
2.1 Overview of display Display Significance Weighing range 1 Weighing range 2 Battery very low Stability display Zero indicator GROSS Gross weight Net weight Pre-Tare hold Hold function Parts counting Weighing unit Totalization Indicators for weighing with tolerance range EOC-BA-e-1920... -
Page 16: Keyboard Overview
• Calculate weighing data via interface • Delete • Change between gross and net weight • Back to menu/weighing mode • Call up mean value function • Call up weighing with tolerance range • Delete total added memory EOC-BA-e-1920... -
Page 17: Numerical Input Via The Navigation Buttons
To change the selected (flashing) digit, press repeatedly until the desired value is displayed. Then press to access further digits and change them by Complete your entry by EOC-BA-e-1920... -
Page 18: Basic Information (General)
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case •... -
Page 19: Monitoring Of Test Equipment
In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. 4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual... -
Page 20: Unpacking, Setup And Commissioning
(e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference. 6.2 Unpacking Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. EOC-BA-e-1920... -
Page 21: Scope Of Delivery
Before connecting or disconnecting of additional devices (printer, PC) to the data interface, always disconnect the balance from the power supply. With your balance, only use accessories and peripheral devices by KERN, as they are ideally tuned to your balance. -
Page 22: Adjustment
„P3 CAL“ will be displayed. Confirm with ; press repeatedly until „CAL“ appears. Acknowledge using , the current setting is displayed. Press to confirm; press to select the desired setting. noLin = adjustment LineAr = linearization, see chap. 6.9 EOC-BA-e-1920... - Page 23 After the adjustment the balance will carry out a self-test. Remove adjusting weight during selftest, balance will return into weighing mode automatically. An adjusting error or incorrect adjusting weight will be indicated by the error message; repeat adjustment procedure. EOC-BA-e-1920...
-
Page 24: Linearisation
(max) carefully in the centre of the weighing platform. Wait for stability display, then press After a successful linearisation the balance will carry out a self-test. Remove adjustment weight during selftest, balance will return into weighing mode automatically. EOC-BA-e-1920... -
Page 25: Operation
Resetting to zero corrects the influence of light soiling on the weighing plate. The unit is equipped with an automatic zero setting function. Therefore the unit can be reset to zero at any time as follows: Unload the balance Press and zero display as well as indicator will appear. EOC-BA-e-1920... -
Page 26: Decimal Point
, the last saved decimal points will be displayed: Example: „0.000 kg“ Press to change through the different decimal places. Press to confirm the desired position of the decimal point. „deCi“ is displayed. Return to weighing mode using EOC-BA-e-1920... -
Page 27: Simple Weighing
(on) or to disable (oFF) the displayed unit. Acknowledge with . The display change automatically to the next unit. to enable (on) or to disable (oFF) the displayed unit. Repeat sequence for each weighing unit. Return to weighing mode using EOC-BA-e-1920... -
Page 28: Weighing With Tare
(add-on weighing). The limit is reached when the taring range capacity (see type plate)is full. To change between gross weight and net weight, press To delete the tare value, remove load from weighing plate and press EOC-BA-e-1920... -
Page 29: Weighing With Tolerance Range
Target quantity / target weight within tolerance range Target quantity / target weight exceeds maximum tolerance limit The settings for tolerance check may be called up either via menu block „P0 CHK“ (see chap. 8.2) or faster via the key combination EOC-BA-e-1920... -
Page 30: Tolerance Check For Target Weight
, the current setting for the upper limit will be displayed. Press the navigation keys (see chap. 2.2.1) to enter the upper limit, e.g. 10.000 kg; the currently enabled digit will be flashing. Confirm input by Press repeatedly until „BEEP“ will be displayed. EOC-BA-e-1920... - Page 31 Load below specified Load within specified Load exceeds specified tolerance tolerance tolerance • The tolerance control is not active when the weight is under 20d. • To delete limits, enter “00.000 kg“. EOC-BA-e-1920...
-
Page 32: Tolerance Check For Target Quantity
„PCS H“ appears. Press , the current setting for the upper limit will be displayed. To enter the upper limit, e. g. 100 items, press the navigation buttons (see chap. 2.2.1); the currently enabled digit will be flashing. Confirm input by EOC-BA-e-1920... - Page 33 Load below specified Load within specified Load exceeds specified tolerance tolerance tolerance • The tolerance control is not active when the weight is under 20d. • To delete limits, enter „00000 PCS“. EOC-BA-e-1920...
-
Page 34: Manual Totalizing
Add more loads as described before. Please note that the weighing system must be unloaded between the individual weighing procedures. This process may be repeated 99 times or till such time as the capacity of the weighing system has been exhausted. EOC-BA-e-1920... - Page 35 Printout example: ******************** No.: NT: 6.20oz TW: 0.00oz GW: 6.20oz ******************** ******************** No.: NT: 9.40oz TW: 0.00oz GW: 9.40oz ******************** ******************** Total No.: Total: 15.60oz ******************** First weighing Second weighing Number of weighings / total EOC-BA-e-1920...
-
Page 36: Automatic Adding-Up
This process may be repeated 99 times or till such time as the capacity of the weighing system has been exhausted. Display and delete the weighing data, as well as printout example see chap. 7.8. EOC-BA-e-1920... -
Page 37: Parts Counting
. The weighing scales calculate the reference weight. The current quantity (such as 100 items) will be displayed. Remove reference weight. The balance is from now in parts counting mode counting all units on the weighing plate. Back to Weighing mode by EOC-BA-e-1920... -
Page 38: Percentage Weighing
Put away the reference load. „0.0%” shall be displayed again. Put the controlled object. The percentage value of the controlled object mass shall be displayed with regard to the reference load. (example) Return to the weighing mode, pushing button, again. EOC-BA-e-1920... -
Page 39: Animal Weighing
Whilst the function is enabled the keyboard will self-lock after no key has been pressed for 10 minutes. „K-LCK“ will be displayed as soon as a key is pressed. To disable the lock, press hold plus (2 s) until „U LCK“ appears. EOC-BA-e-1920... -
Page 40: Display Background Illumination
Continuous background lighting bl off Background illumination off bl Auto Automatic background illumination on when weighing pate is loaded or key pressed. Either save by or cancel by pressing Back to Weighing mode by EOC-BA-e-1920... -
Page 41: Automatic Switch-Off Function „Auto Off
Weighing system will be turned off after 5 min. of 15 Weighing system will be turned off after 15 min. of 30 Weighing system will be turned off after 30 min. Either save by or cancel by pressing Back to Weighing mode by EOC-BA-e-1920... -
Page 42: The Menu
Change settings To change to the available settings, press the navigation keys (see chap. 2.2.1). Acknowledge setting / exit the menu Either save by pressing or cancel by pressing Return to weighing mode Press repeatedly to exit menu. EOC-BA-e-1920... -
Page 43: Menu Overview
S0 on Interface One output for stable weighing value parameters Continuous data output of stable weighing values Output after pressing Manual totalizing, see chap. 7.9. Press and the weighing value will be added to the summation memory and issued. EOC-BA-e-1920... - Page 44 Capacity 2nd weighing range noLin Adjustment, see chap. 6.7 LinEr For linearisation see chapter 6.9 not documented Keyboard lock enabled P4 otH LoCK oFF* Keyboard lock disabled Animal weighing enabled, see chap. 7.12 oFF* Animal weighing disabled EOC-BA-e-1920...
- Page 45 No.: 5.000kg 5.000kg No.: 5.000kg 5.000kg TW: 5.000kg 5.000kg TOTAL: 10.000kg GW: 10.000kg GW: 10.000kg ******************* ********************** TOTAL: 10.000kg ******************* ********************** GS / GW Gross weight Number weighing processes Net weight TOTAL Total of all individual weighings Tare weight EOC-BA-e-1920...
-
Page 46: Servicing, Maintenance, Disposal
• Do not use aggressive detergents (solvents or similar). 9.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 9.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 47: Error Messages
Keyboard locked Keyboard unlocked Capacity of batteries exhausted. (Battery voltage below 5.7 V, automatic shutdown happens at less than 5.4 V) Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. EOC-BA-e-1920... -
Page 48: Data Output Rs232C
• Use a suitable cable to connect the display unit to the interface of the printer. Faultless operation requires an adequate KERN interface cable. • Communication parameters (baud rate, bits and parity) of display unit and printer must match. -
Page 49: Remote Control Instructions
Weighing value for the weight (stable or US,GS 1.342KG unstable) is sent via the RS232 interface ST,GS 1.000KG No data are sent, the balance carries out the tare function. No data are sent, the zero-display appears. Quantity will be sent via the RS232-interface 10PCS EOC-BA-e-1920... -
Page 50: Kern Communications Protocol (Kern Interface Protocol)
10.4 KERN Communications Protocol (KERN Interface Protocol) I0 0 "I0" Shows all implemented KCP commands I0 0 "I1" Showing KCP level and KCP version I0 0 "I2" Sending weighing data I0 0 "I3" Inquiry software version I0 0 "I4" Inquiry serial number I0 0 "S"... -
Page 51: Instant Help
• The balance is on an uneven surface. • Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) Should other error messages occur, switch balance off and then on again. If the error message remains inform your specialist dealer. EOC-BA-e-1920... -
Page 52: Declaration Of Conformity
12 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce EOC-BA-e-1920...
