w w ww.microhpro.com

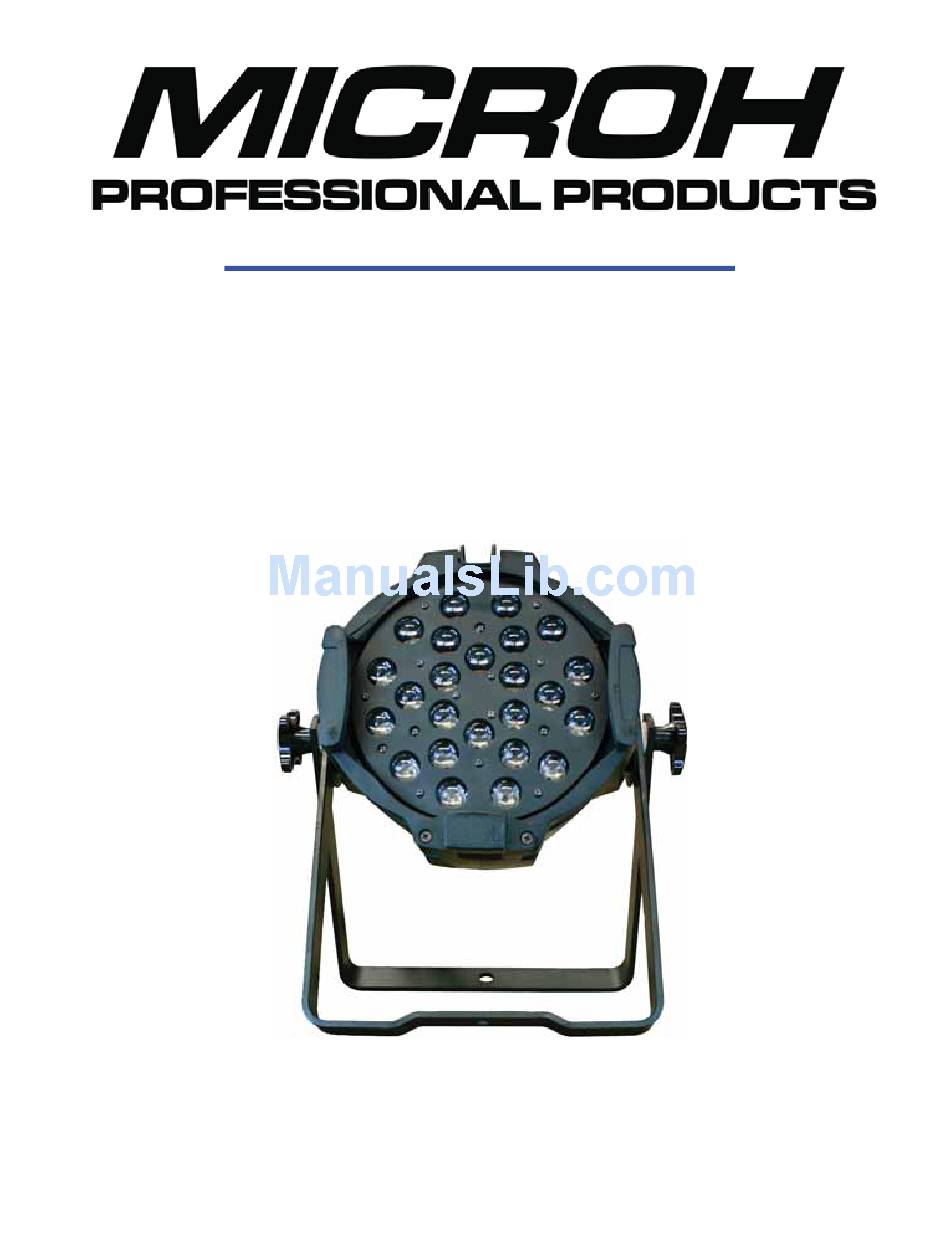

LED MAX ZOOM QUAD
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED MAX ZOOM QUAD and is the answer not in the manual?

Questions and answers

Related Manuals for Microh LED MAX ZOOM QUAD

Summary of Contents for Microh LED MAX ZOOM QUAD

  • Page 1 LED MAX ZOOM QUAD USER MANUAL...

  • Page 2: Introduction And Unpacking

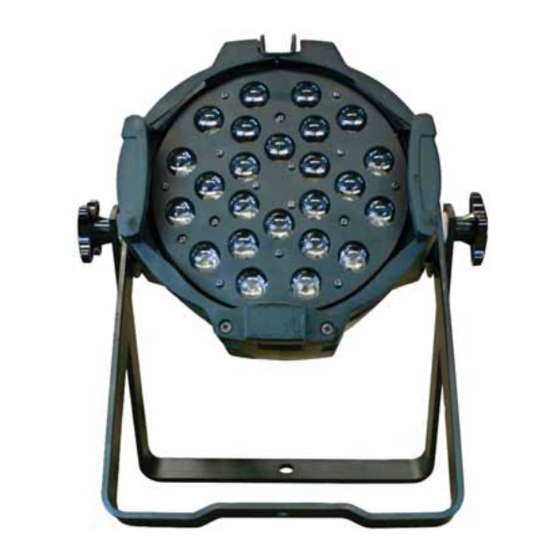

    Meanwhile, please keep this manual for future reference. The MICROH LED MAX ZOOM QUAD wash fixture is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos.
  • Page 3 2. Press UP or DOWN to select static colour 0-15, the strobe speed in the strobe mode and the beam angle from big too small. 0-Off Strobe 1-Lowest Speed 15-Highest Speed Auto-Run Program Two Auto-Run programs are built into the LED Max Zoom Quad – Colour Snap program (AJ-X), Colour Mixing (AF-X).
  • Page 4 Press UP or DOWN to set the DMX address. You can set 508 pcs.at most when the LED Max Zoom Quad is in 5 channel DMX mode, 507 pcs. at most when it is in 6 channel DMX mode, 506 pcs at most when it is in 7 channel DMX mode, 505 pcs at most when it is in 8 channel DMX mode. The LED display will flicker when there is no controller signal.

  • Page 5: Mounting And Installation

    DMX-Protocol: The LED Max Zoom Quad can be controlled using 5, 6, 7 or 8 channels. 5 Channel Mode controls Red, Green, Blue, White and Zoom. 6 Channel Mode controls Red, Green, Blue, White, Master Dimmer and Zoom. 7 Channel Mode controls Red, Green, Blue, White, Master Dimmer, Strobe and Zoom.
  • Page 6 Regardless of the rigging option you choose for your MICROH LED MAX ZOOM QUAD wash fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
  • Page 7 PIN 3 PIN 2 6. SETUP MENU MODE SET UP manual UP/DOWN manual instruction manual Address Sets the DMX starting address The unit occupies 5 DMX channels MODE The unit occupies 6 DMX channels Channels The unit occupies 7 DMX channels The unit occupies 8 DMX channels Zoom direction Zoom direction up: the bigger DMX value, the bigger...
  • Page 8 Display LED digital tube display always on on/off LED digital tube display off SETUP Display LED digital tube display normal MODE normal/inversed LED digital tube display inversed Initialization Initialize the unit at the extra factory setting mode Reset mode Reset the position of the electric machine 7.
  • Page 9 000~255 Zoom, adjust the beam angle from the smallest to biggest when it is set to Zoom, adjust the beam angle from the biggest to smallest when it is set to 8 Channel Mode Configuration MODE FUNCTION VALUE 0-255 White Blue Green bright)

  • Page 10: Photometric Data

    - Gel Frame Included - Built-in microphone - 4-Button LED Digital Display (MODE, SETUP, UP, DOWN) 10. TECHNICAL SPECIFICATIONS MODEL: LED MAX ZOOM QUAD LAMP: 24 x 5W Quad LEDs OPERATING TEMPERATURE: -25°C to 45°C VOLTAGE: 120VAC 60Hz 125W FUSE: 3A...

  • Page 11: Maintenance And Cleaning

    In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this...
