Procedure B. Antenna Mounting and Cable Connection
Step

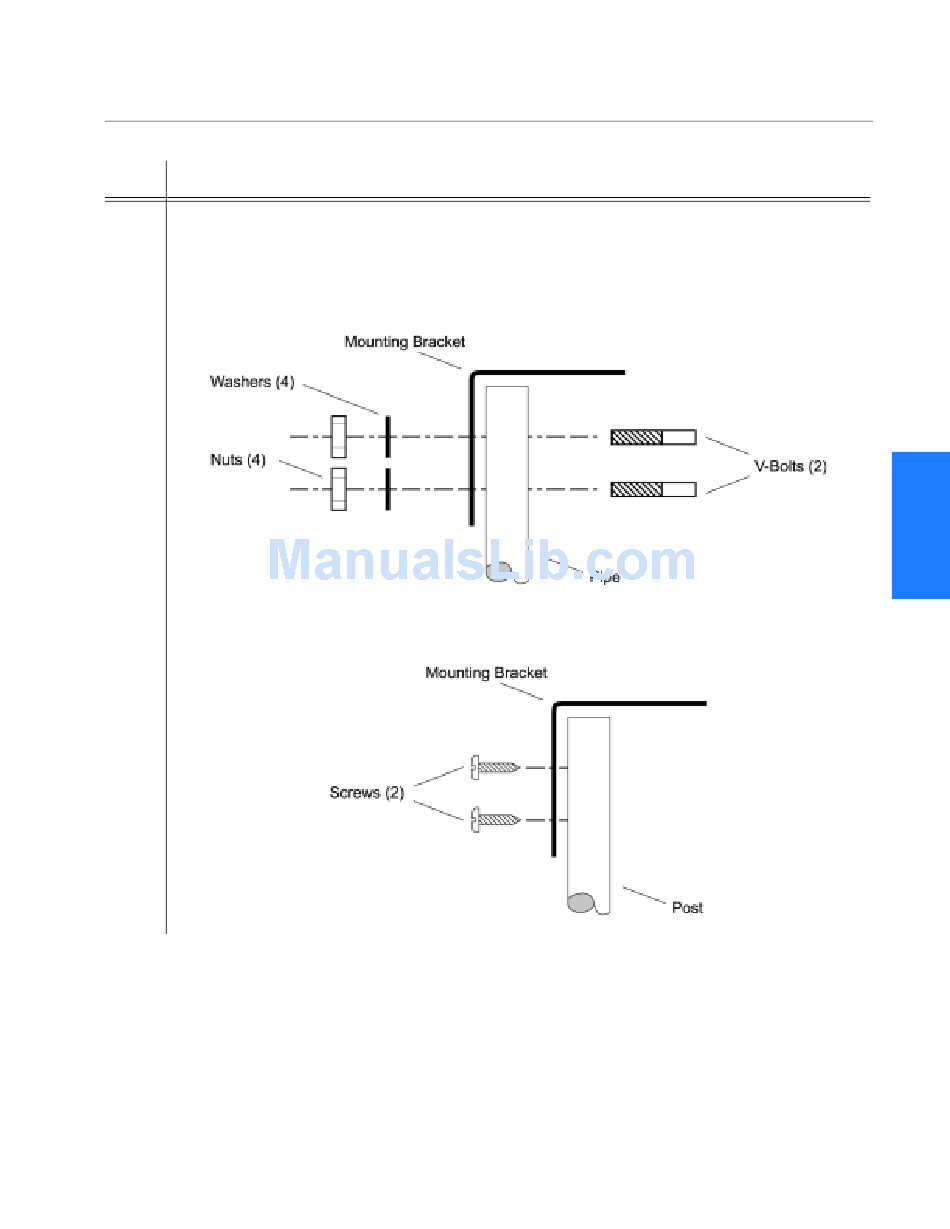

1 Attach the antenna mounting bracket to a pipe (1 in. diameter) or a wood post.
• If mounting the bracket to a pipe, slide the two V-bolts over the pipe, and through the
mounting bracket slots; then place the provided four washers and four nuts over the V-
bolts, against the mounting bracket. Leave the V-bolts loose enough to allow for final
adjustments.
• If mounting the bracket to a wood post, use the provided two self-tapping screws in two
diagonally positioned mounting bracket slots, and attach to the post.
