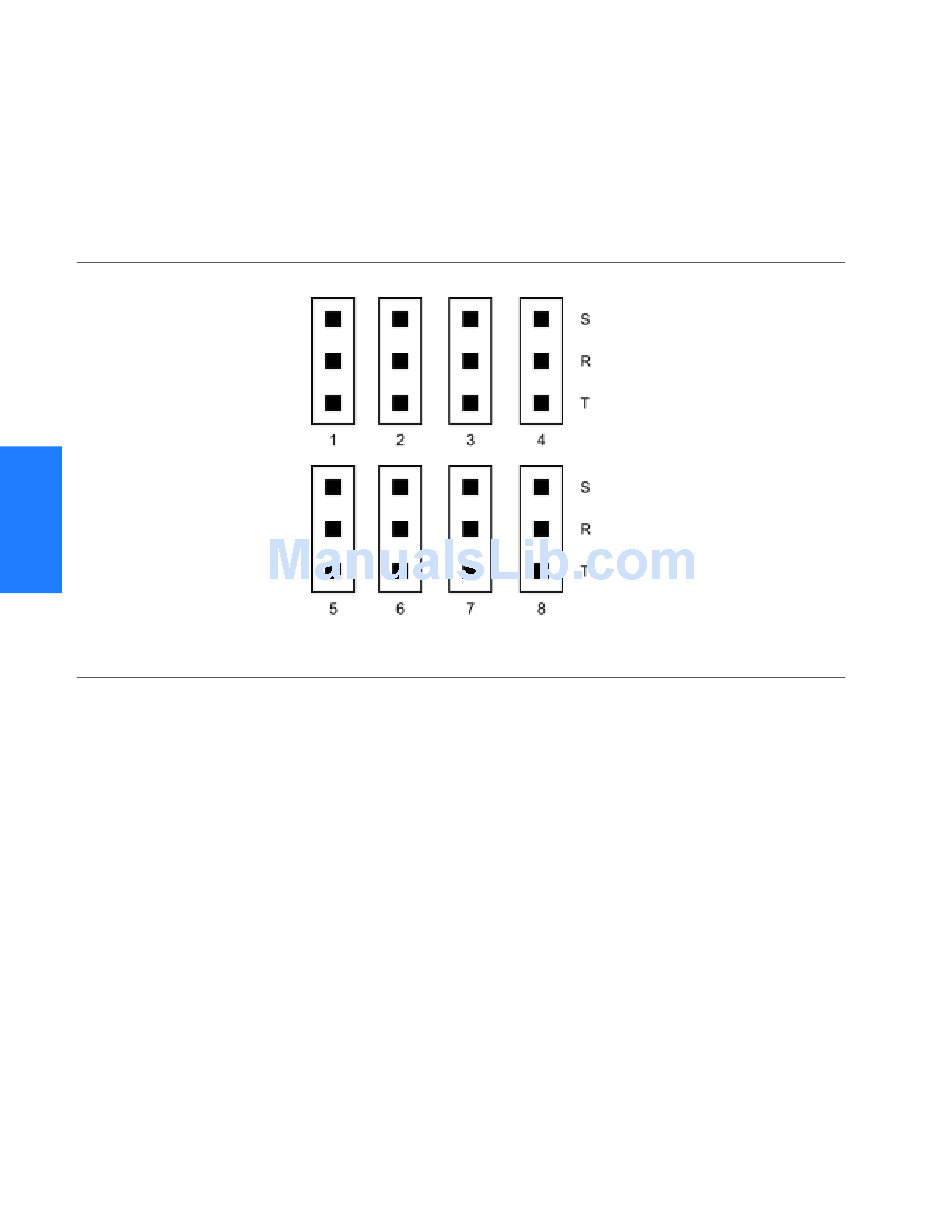

Figure 14 Eight T1, Mixed E1/T1, Mixed T1/CCK, and Composite Clock Connections
3
62
S S S S S S S S S

Additional T1 Outputs

If using the additional T1 outputs, connect the optional eight T1 outputs at the I/O Options
wire-wrap pins. See Figure 11 for the connector location, and Figure 14 for the connections.
The additional T1 outputs option is indicated by the 72010-02 part number on the shelf front
panel.
Composite Clock (CCK) Outputs
If using the optional composite clock outputs, connect the composite clock outputs from the
I/O Options wire-wrap pins to network elements requiring composite clock timing. Refer to
Figure 11 for the connector location and Figure 14 for the connections. The CCK outputs
option is indicated by the 72010-03 part number on the shelf front panel.
S S S S S S S S S S S S S S S S S S
TimeSource 3000
097-72000-02 Issue 6: October 2003
