Figure 4. The Found New Hardware Wizard Welcome Screen - ZiLOG Z51F0811 MCU User Manual

Z8051 family of 8-bit microcontrollers

Table of Contents

Z51F0811 MCU Evaluation Kit

User Manual

1. Connect the OCD hardware to the USB port of your PC by connecting the A-Male end

2. After the PC detects the new hardware, it will display the

3. The next dialog box, shown in Figure 5, prompts you to enter a path or navigate to the

Install the Z8051 OCD Software and Documentation

of one of the two USB A (male)-to-Mini-B cables with the host PC's USB port, and

connect the Mini-B end to the OCD device.

ard

dialog box, shown in Figure 4. Select

; then click

(Advanced)

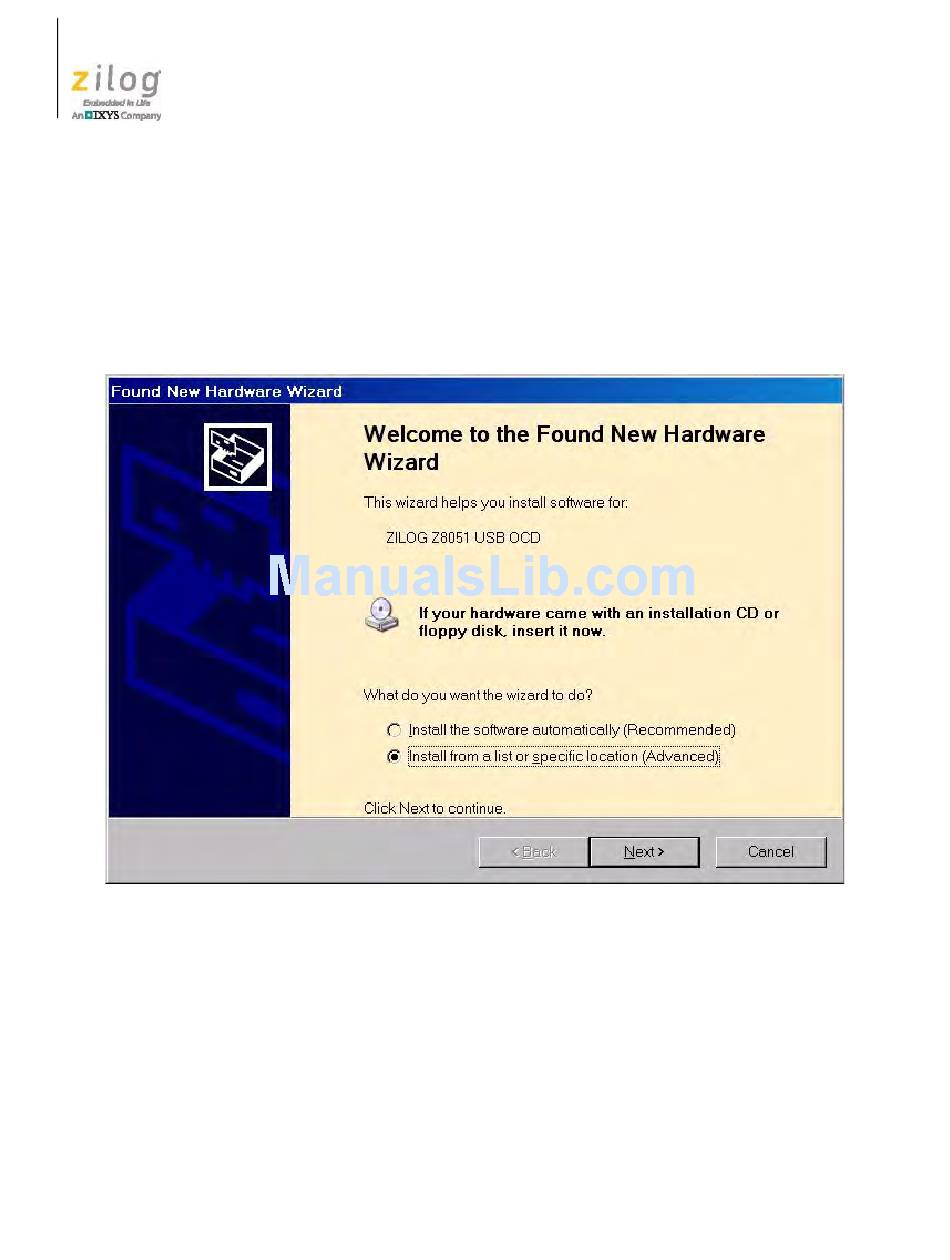

Figure 4. The Found New Hardware Wizard Welcome Screen

directory in which the

.inf

use (32- bit or 64-bit), use the

and click the

button, leaving all other selections at their default settings.

–

On 32-bit machines, use the following path:

<Z8051 Installation>\Z8051_<version>\device drivers\OCD USB\x32

–

On 64-bit machines, use the following path:

<Z8051 Installation>\Z8051_<version>\device drivers\OCD USB\x64

Install from a list or specific location

file was installed. Depending on the type of computer you

button to navigate to one of the following paths

Browse

Found New Hardware Wiz-

UM024201-0212

Table of Contents
