Figure 11. A Typical On-Chip Debugger Window - ZiLOG Z51F0811 MCU User Manual

Z8051 family of 8-bit microcontrollers

Table of Contents

Z51F0811 MCU Evaluation Kit

User Manual

F.P.O.

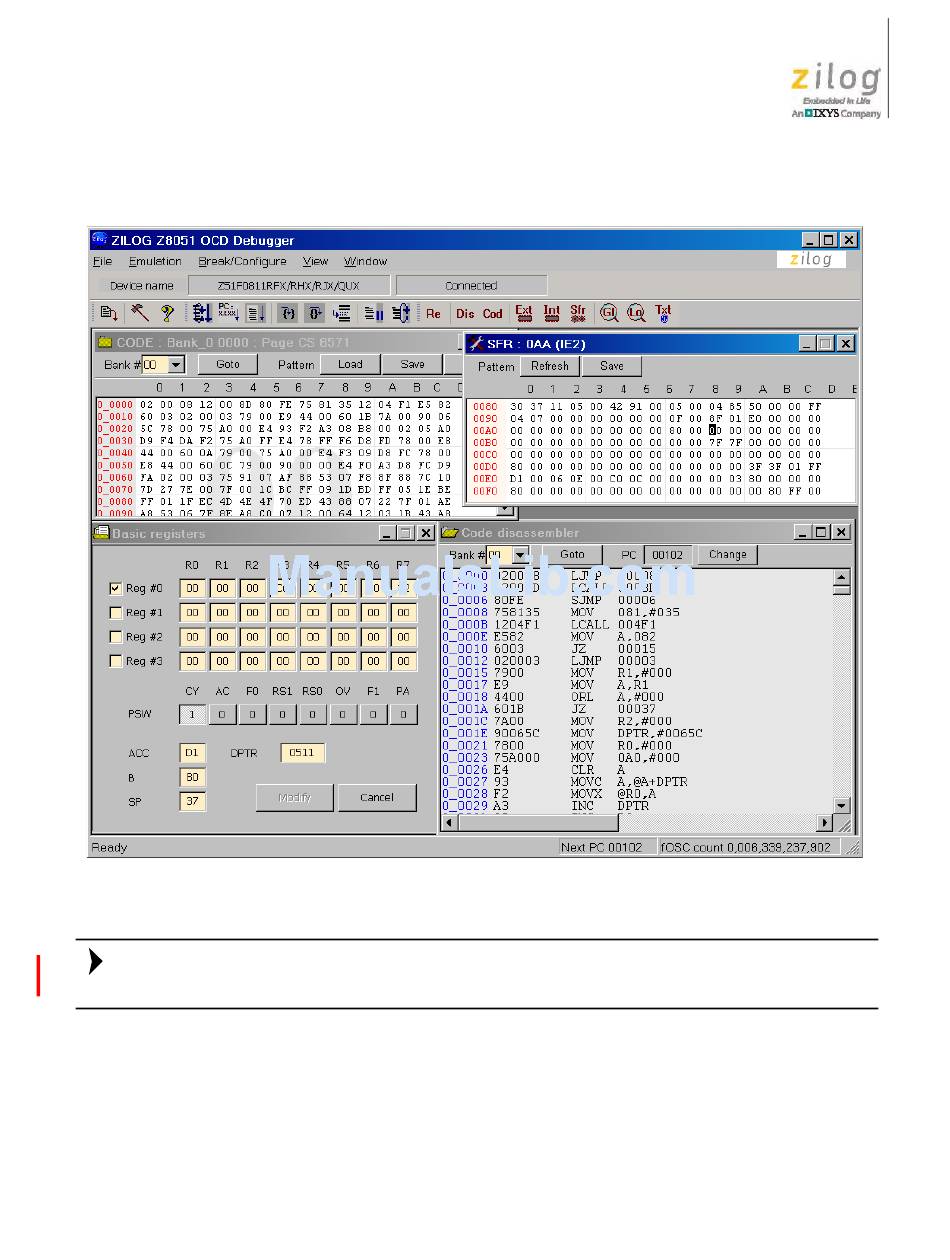

Figure 11. A Typical On-Chip Debugger Window

Note:

If the

dialog does not appear in the Z8051 OCD Debugger, navigate

Code Disassemble

via the

View

menu to select

Code Disassemble

9. Click the

toolbar icon, shown in Figure 12. As a result, the LEDs on the

Reset & Go

Z51F0811 Board will blink in sequence.

UM024201-0212

Build and Run the Z51F0811 Demo Project
