Z51F0811 MCU Evaluation Kit
User Manual
16
10. Similar projects that you can use as references are listed in

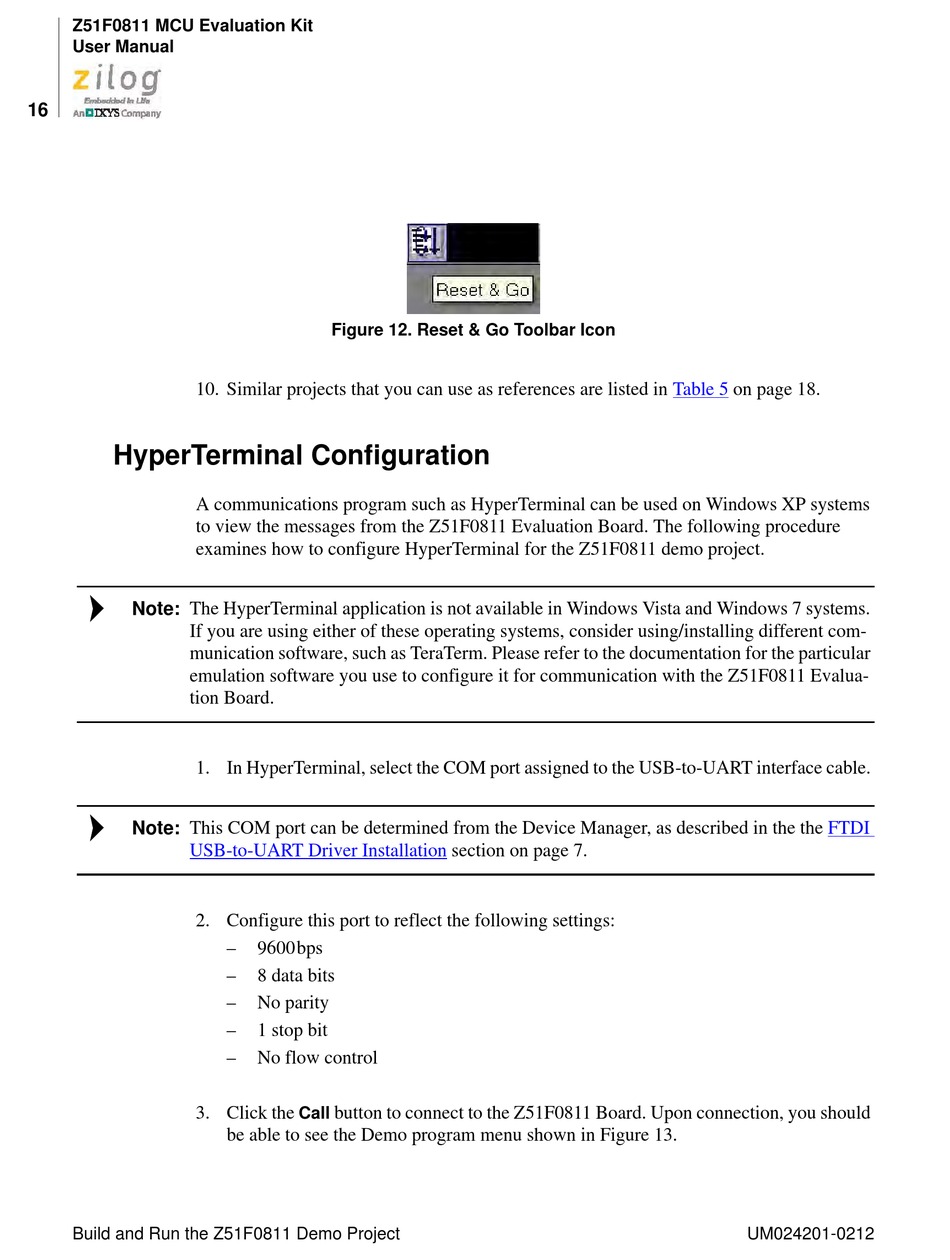

HyperTerminal Configuration
A communications program such as HyperTerminal can be used on Windows XP systems
to view the messages from the Z51F0811 Evaluation Board. The following procedure
examines how to configure HyperTerminal for the Z51F0811 demo project.
Note:
The HyperTerminal application is not available in Windows Vista and Windows 7 systems.
If you are using either of these operating systems, consider using/installing different com-
munication software, such as TeraTerm. Please refer to the documentation for the particular
emulation software you use to configure it for communication with the Z51F0811 Evalua-
tion Board.
1. In HyperTerminal, select the COM port assigned to the USB-to-UART interface cable.
Note:
This COM port can be determined from the Device Manager, as described in the the
USB-to-UART Driver Installation
2. Configure this port to reflect the following settings:
3. Click the
Build and Run the Z51F0811 Demo Project
Figure 12. Reset & Go Toolbar Icon
–
9600 bps
–
8 data bits
–
No parity
–
1 stop bit
–
No flow control
button to connect to the Z51F0811 Board. Upon connection, you should
Call
be able to see the Demo program menu shown in Figure 13.
section on page 7.
Table 5
on page 18.
FTDI
UM024201-0212
