ProForm PFBE64490 User Manual page 9

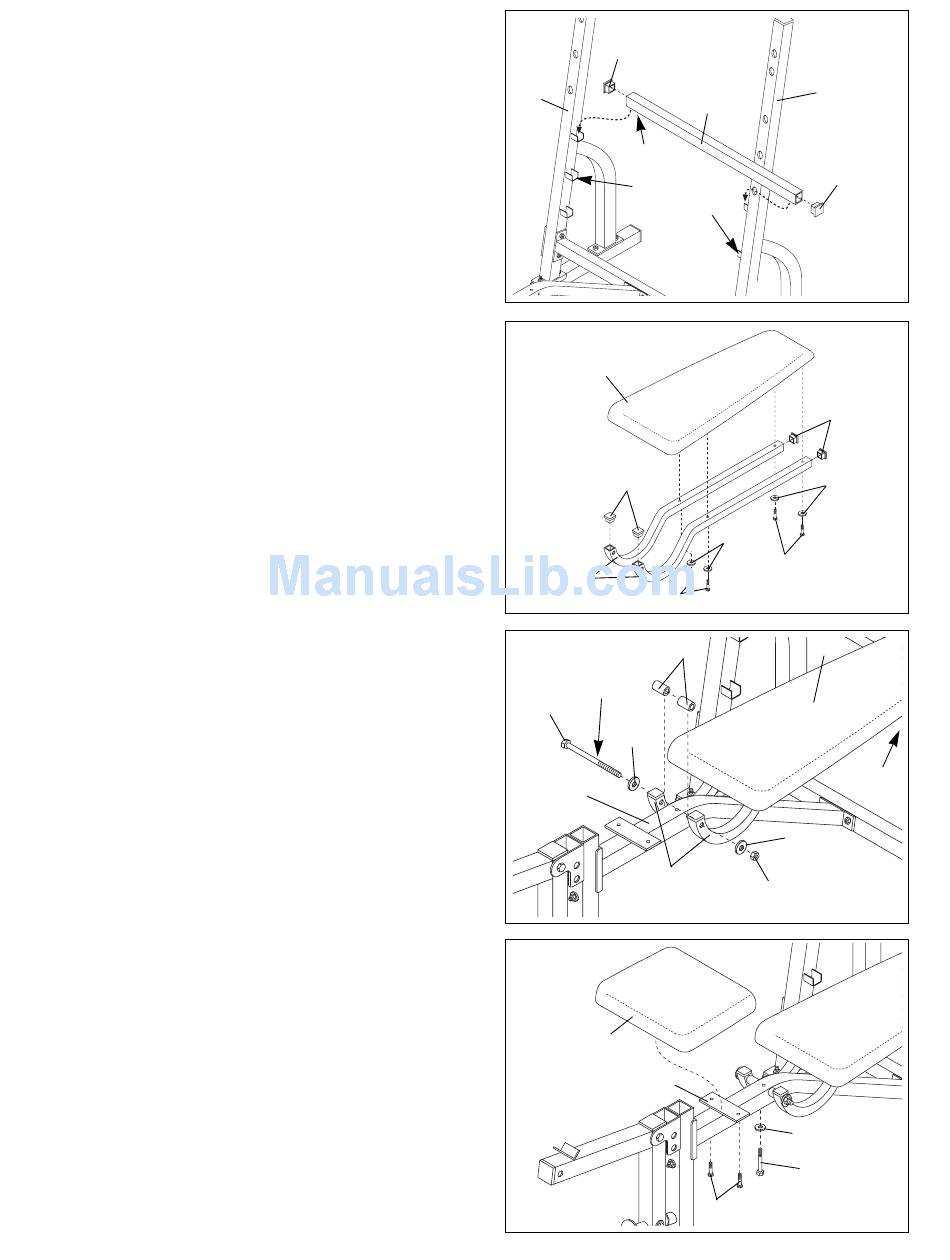

8. Press a 30mm Square Inner Cap (55) into each end
of the Adjustment Tube (29).
Place the Adjustment Tube (29) in one set of adjust-
ment brackets on the Uprights (1, 37). Make sure
that the pins on the Adjustment Tube are inserted
into the slots in the adjustment brackets.
9. Press 1Ó Square Inner Caps (28) into the ends of both
Backrest Tubes (27).
Attach the Backrest Tubes (27) to the Backrest (15)
with four M6 x 38mm Screws (4) and four M6
Washers (30). Do not tighten the four Screws yet.
10. Slide an M10 Washer (6) onto the M10 x 155mm Bolt
(22). Lubricate the Bolt.
Rest the Backrest (15) on the Adjustment Tube (29).
Insert the M10 x 155mm Bolt (22) through the right
Backrest Tube (27) and then slide a 16mm x 18.5mm
Spacer (8) onto the Bolt.
Next, insert the M10 x 155mm Bolt (22) into the
Bench Frame (5) until the tip is barely visible on the
other side. Hold a 16mm x 18.5mm Spacer (8)
between the Bench Frame and the left Backrest Tube
(27) and insert the Bolt through the Spacer and the
Backrest Tube. Secure the Bolt with an M10 Washer
(6) and an M10 Nylon Locknut (11). Do not over-
tighten the Nylon Locknut. You must be able to
freely pivot the Backrest. Tighten the four M6 x
38mm Screws (4) used in step 9.
11. Attach one end of the Seat (14) to the Bench Frame
(5) with an M6 x 63mm Screw (7) and an M6 Washer
(30). Do not tighten the Screw yet.
Attach the other end of the Seat (14) to the bracket
on the Bench Frame (5) with two M6 x 16mm Screws
(3).
Tighten the M6 x 63mm Screw (7).
