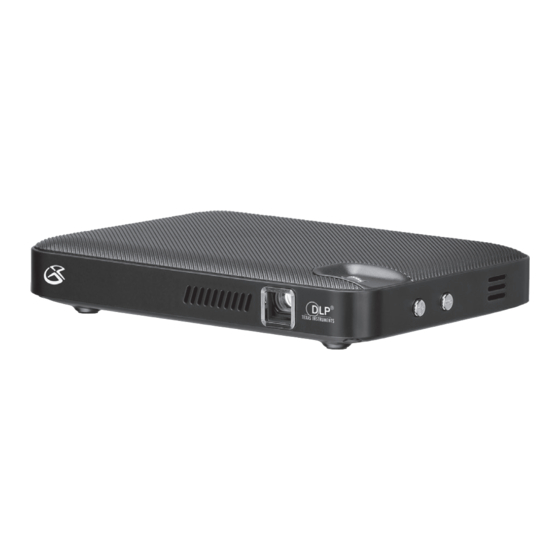

- Page 1 Micro Projector User’s Guide for Model PJ608 v2000-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
- Page 2 Table of Contents Overview Features – 3 Includes – 3 Front View – 4 Rear View – 5 Setup Power – 6 Projector Placement – 7 Connecting to Other Devices Devices with an HDMI Output – 8 Connecting to a Streaming Stick – 9 Mobile Devices Requiring an HDMI Adapter –...
-
Page 3: Features
Overview Features Includes • DLP display technology • HDMI cable • Supports 480p, 720p, 1080i, 1080p • Micro-USB to USB cable • Native Resolution: 640 x 360 • Brightness: 500 lumens • HDMI input • Up to 100" viewable screen size •... -
Page 4: Front View
Overview Front View Cooling Vents Built-in Speakers x2 Projector Lens Power Switch Screw-type Tripod Mount (underside) Cooling vents are located on all sides of the unit. Take care not to block any of the vents. -
Page 5: Rear View
Rear View Indicator Lights Red - Charging Green - Full Charge Blue - Starting Up Focus Adjust Micro-USB Power Input Volume HDMI Input 3.5mm Audio Output Reset USB Power Output USB Output power rating: 1A 5V. Check your device’s power requirements before connecting. Note: USB Output does not support video play. -
Page 6: Power
Setup Power Using a Micro-USB to USB cable (included), connect the DC IN (Micro-USB power input) on the projector to a USB port on a powered on computer or USB charging adapter (not included). -
Page 7: Projector Placement
Projector Placement • For best results, place the projector in a dark room or other dimly lit area with a dedicated projector screen. • If placing the projector behind the viewing screen (facing/projecting toward viewers), a special screen will be required. •... -
Page 8: Devices With An Hdmi Output
Connecting to Other Devices Devices with an HDMI Output Requires an HDMI cable (included) and a device with an HDMI output. • Press the Power button to power on the unit. • Using an HDMI cable, connect the HDMI input on the projector to the HDMI output on your media player. -
Page 9: Connecting To A Streaming Stick
Connecting to a Streaming Stick Requires a streaming video device with HDMI plug or adapter (not included). • Press the Power button to power on the unit. • Connect the streaming stick to the HDMI input on the projector and use the controller for the streaming stick to select and play media. -
Page 10: Mobile Devices Requiring An Hdmi Adapter
Connecting to Other Devices Mobile Devices Requiring an HDMI Adapter Requires an HDMI cable (included) and an HDMI adapter that is compatible with your mobile device. All adapters and their power supplies are sold separately and are not included with the projector. •... - Page 11 Android devices with a USB-C output will require a USB-C to HDMI adapter. Android devices with a SlimPort will require a SlimPort to HDMI adapter.
-
Page 12: Audio Output
Connecting to Other Devices Audio Output Note: External speakers must have their own power supply. Requires a 3.5 mm to RCA stereo cable or 3.5mm audio cable (not included). • Press the Power button to power on the unit. • Using the appropriate audio cable, connect the Audio Out on the projector to external powered speakers or headphones. - Page 13 To avoid hearing damage, be sure the volume on the projector is turned down before connecting headphones, then gradually increase the volume to a comfortable level. 3.5mm audio cable Connect to Headphone Jack...
-
Page 14: Troubleshooting
Troubleshooting Image is Blurry • Turn the Focus Adjustment wheel left or right to bring the image into focus. • Be sure the surface you are projecting onto is smooth and non-reflective. • Be sure the projector lens is not obscured, dirty, or scratched. Image is Not Square •... - Page 15 "No Signal" Message • Be sure you are connecting to an HDMI output on your device. • Be sure the HDMI cable is firmly connected to the HDMI ports on both the projector and the connected device. • If connecting to a computer, check the display settings. Be sure the computer is set to display to other devices ("mirror display, duplicate display,"...
-
Page 16: Customer Support
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com... -
Page 17: Safety Instructions & Warnings
Safety Instructions & Warnings • Read these Instructions. has been exposed to rain or moisture, does not operate normally, or has been dropped. • Keep these Instructions. • Use only with a cart, stand, tripod, bracket, • Heed all Warnings. or table specified by the manufacturer, or •... - Page 18 ADDITIONAL WARNINGS receiver is connected. AND PRECAUTIONS • Consult the dealer or an experienced radio/ TV technician for help. • Do not look directly into the projector light. BATTERY WARNINGS • Use in well ventilated area with ambient temperature between 41°F~104°C •...
- Page 19 – Power supply or power cord is regarding use of the remote. If the unit is damaged. displaying erratic behavior move away from any fluorescent lighting, as it may be • Do not use the projector in places where the cause.
- Page 20 WARNING: To reduce the CAUTION risk of electric shock, do not RISK OF ELECTRIC SHOCK DO NOT OPEN remove cover (or back). No ATTENTION user-serviceable parts inside. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR Refer servicing to qualified service personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating...
