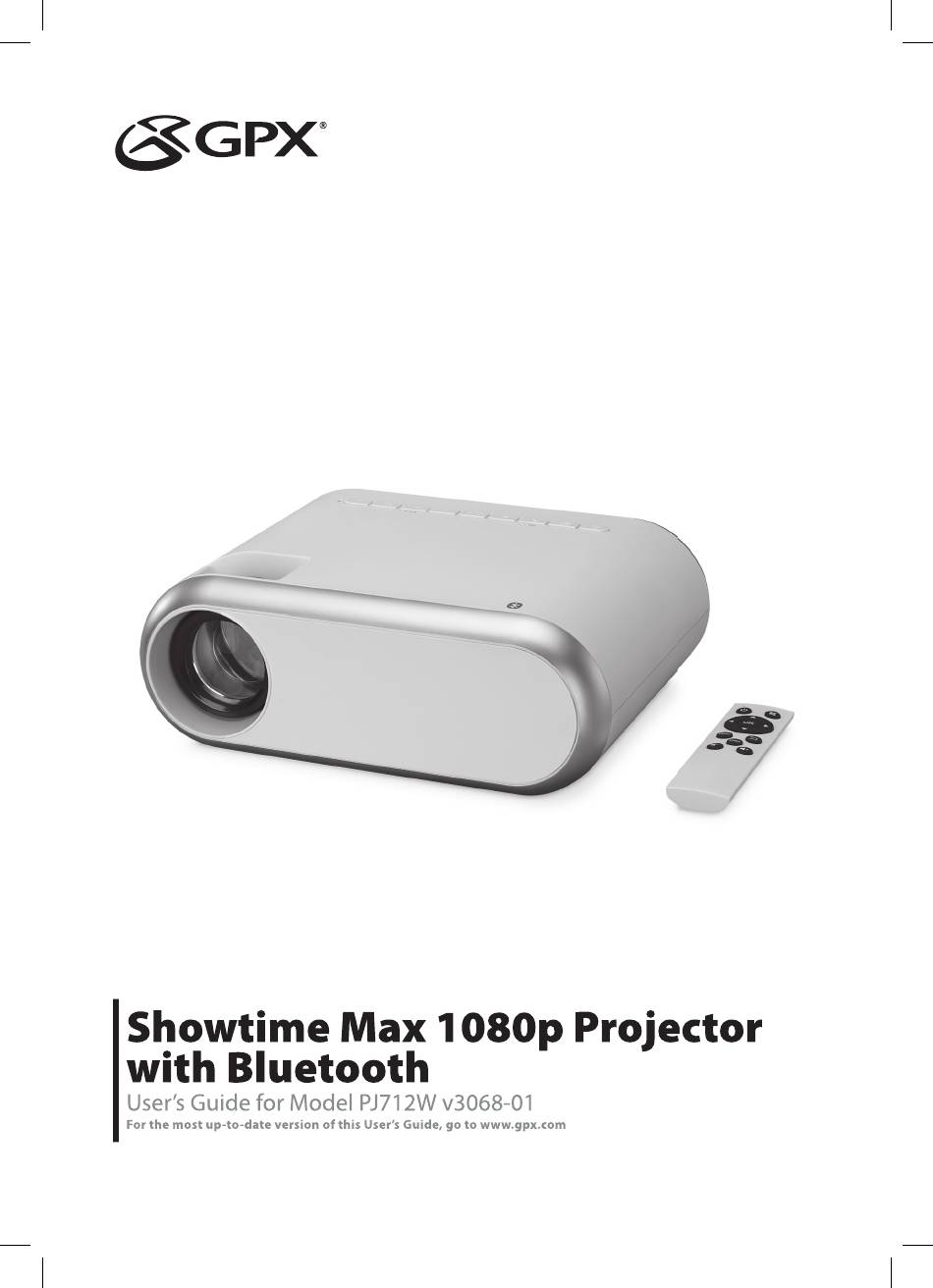

Summary of Contents for GPX Showtime Max
- Page 2 Safety Instructions & Warnings Important Safety Instructions Battery Warnings • Read these Instructions. • WARNING: Do not ingest battery, Chemical Burn Hazard. • Keep these Instructions. • If the remote control supplied with this product contains a coin/button cell battery and the coin/button cell battery is •...
- Page 3 • If the air vents become clogged or dirty, use a vacuum or air WARNING: To reduce the risk of electric CAUTION compressor and nozzle to clean. Do not use canned air, as the RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN gas may leave a residue inside the enclosure.
-
Page 4: Table Of Contents
Table of Contents Overview Features - 5 Includes - 5 Projector Features & Inputs - 6–7 Remote Functions - 8 Batteries - 8 Projector Setup Power - 9 Projector Placement - 9 Angle Adjustment - 9 Viewing Options - 10 Image Adjustment - 10 Ceiling Mount - 11 Menu Options... -
Page 5: Features
Overview Features Includes • Native Resolution: 1920 x 1080 (1080p) • Remote control: requires 2 AAA batteries • Supports 480p, 720p, 1080i, 1080p (not included) • Aspect Ratio: 16:9, 4:3 • AC/DC power adapter • Brightness: 280 ANSI lumens • User's Guide •... -
Page 6: Projector
Projector Features & Inputs 1. Projector Lens 6. HDMI 1 Port 2. Angle Adjustment Knob - Turn 7. DC In Port to raise or lower the projector 8. IR Sensor - Sensor for receiving height and angle. remote commands. 3. Micro SD Slot 9. - Page 7 Projector 11. Focus Adjust Knob - Turn to 17. OK - Press to select a menu option adjust screen focus by changing and confirm menu selections. the image size. 18. Navigate Down - Press to 12. Keystone Adjust Knob - Turn to navigate options on the menu adjust image distortion.
-
Page 8: Remote
Remote Functions Operation Indicator Mute Press to mute volume. Power Press to power ON. Press to power OFF. Arrows/OK Press to navigate and confirm selections in Settings and other menu(s). Menu Exit MENU Press to access projector Settings. Press to exit menu(s). Source SOURCE Press to select media source... -
Page 9: Projector Setup
Projector Setup Power Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the rear of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON. Projector Placement For best results, place the projector in a dark room or other dimly lit area. -
Page 10: Viewing Options
FRONT TABLE Projector Setup Viewing Options The projector can be used to project onto a wall or screen. It can be mounted from a ceiling or placed on a table. FRONT CEILING Be sure to aim the remote at the sensor on the front or rear of the projector. See page 6 for sensor locations on the projector. -
Page 11: Ceiling Mount
Projector Setup Ceiling Mount To mount the projector from the ceiling, you will need mounting hardware as recommended by a professional. Mounting hardware and instructions are not included. Before mounting, be sure the ceiling structure can support the weight of the projector and the mount itself. It is recommended to have this unit mounted by a professional. -
Page 12: Menu Options
Menu Options Change projector settings by pressing the Menu button on top of the projector. Note: Not all settings are user adjustable. Picture Menu Picture mode Standard Contrast Brightness Color Sharpness Color Temperature Medium Menu 1. Picture Mode Use the Navigation Buttons to select Standard, Dynamic, Mild, or User (custom). The User setting allows you to adjust Contrast, Brightness, Color, and Sharpness. -
Page 13: Sound Menu
Menu Options Sound Menu Sound Mode Standard Treble Bass Balance BT Setting Menu 1. Sound Mode Select Standard, Movie, Music, Sports, and User (custom). The User setting allows you to adjust the Treble and Bass levels. 2. Treble Set the treble level between 0 and 100 using the Arrow buttons. 3. -
Page 14: Options Menu
Options Menu OSD Language English Flip Front Table Aspect Ratio 16:9 Restore Factory Default Software Update (USB) Menu 1. OSD Language Select English, French, or Spanish for the On Screen Display. 2. Flip Use the Arrow buttons to select Front Table, Front Ceiling, Rear Table, or Rear Ceiling. 3. -
Page 15: Connecting To Other Devices
Connecting to Other Devices HDMI HDMI offers superior sound and picture quality and is the easiest way to play media from a computer, Blu-Ray player, or other device with an HDMI output. Requires an HDMI cable (not included) and a device with an HDMI output. 1. -
Page 16: Audio/Video Input
Connecting to Other Devices Audio/Video Input Requires a 3.5mm to RCA audio/video cable (not included). 1. Press the Power button on the projector to enter Standby mode. 2. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit. 3. -
Page 17: Pairing To Bluetooth Wireless Speakers Or Sound Bar
Connecting to Other Devices Pairing to Bluetooth Wireless Speakers or Sound Bar NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or OFF from the Sound Menu (steps 2 and 3 below). 1. -
Page 18: Microsd & Usb Storage Devices
Connecting to Other Devices MicroSD & USB Storage Devices Supports MicroSD cards and USB drives up to 256GB NTFS format. Supports mpeg1, mpeg2, mpeg4, mp3, and jpeg file formats. 1. Press the Power button on the projector to enter Standby mode before inserting a USB drive or MicroSD card. Then, insert into the appropriate port or slot and turn the unit on. -
Page 19: Customer Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com...
