Summary of Contents for GPX PJ609B
- Page 1 尺寸：210*145ＭＭ 80克书纸 黑白印刷...

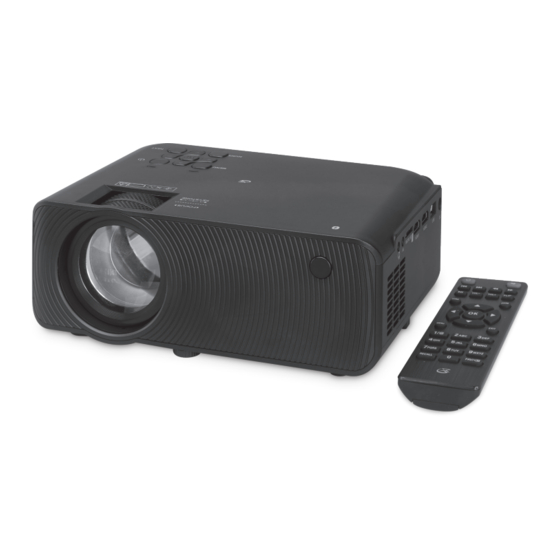

- Page 2 Mini Projector User’s Guide for Model PJ609B v2294-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
- Page 3 Safety Instructions & Warnings Important Safety Instructions Battery Warnings • Read these Instructions. • WARNING: Do not ingest battery, Chemical Burn Hazard. • Keep these Instructions. • If the remote control supplied with this product contains a coin/button cell battery and the coin/button cell battery is • Heed all Warnings. swallowed, it can cause severe internal burns in just 2 hours • Follow all instructions. and can lead to death. • Do not use this apparatus near water. • Keep new and used batteries away from children. If the • Clean only with a dry cloth. battery compartment does not close securely, stop using the • Do not block any ventilation openings. Install in accordance product and keep it away from children. with the manufacturer’s instructions. • If you think batteries might have been swallowed or • Do not install near any heat sources such as radiators, heat placed inside any part of the body, seek immediate medical registers, stoves, or other apparatus (including amplifiers) attention.
- Page 4 • If the air vents become clogged or dirty, use a vacuum or air WArNINg: To reduce the risk of electric CAUTION compressor and nozzle to clean. Do not use canned air, as the RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN gas may leave a residue inside the enclosure. user-serviceable parts inside. Refer servicing ATTENTION • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH to qualified service personnel. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. The exclamation point within an equilateral • Mains plug is used as disconnect device and it should remain triangle is intended to alert the user to readily operable during intended use. In order to disconnect the presence of important operating and the apparatus from the mains completely, the mains plug maintenance (servicing) instructions in the should be disconnected from the mains socket outlet literature accompanying the appliance. completely. • CAUTION: Use of controls or adjustments or performance The lightning flash with arrowhead symbol, of procedures other than those specified may result in within an equilateral triangle, is intended to...
-
Page 5: Table Of Contents
Table of Contents Overview Features - 5 Includes - 5 Projector Features & Inputs - 6 Remote Functions - 8 Batteries - 8 Menu Options Picture Menu - 9 Sound Menu - 10 Options Menu - 11 Projector Setup Power - 12 Projector Placement - 12 Angle Adjustment - 12 Viewing Options - 13... -
Page 6: Features
Overview Features Includes • Supports 480p, 720p, 1080i, 1080p • Remote control: requires 2 AAA batteries • Native Resolution: 1280 x 720 (720p) (not included) • Aspect Ratio: 16:9, 4:3 LB • 3.5mm to 3 x RCA audio/video cable • Brightness : 150 ANSI lumens • AC/DC power adapter • Bluetooth wireless • User's Guide... -
Page 7: Projector
Projector Features & Inputs 1. Projector Lens 8. MicroSD Card Port 2. Front Remote Sensor 9. DC Power Port 3. Angle Adjustment Knob 10. USB Port 4. PC VGA Input 11. HDMI Input 1 & 2 5. Rear Remote Sensor 12. - Page 8 MENU SOURCE EXIT Menu Power Press to access Press to power on MENU on-screen menu(s) the projector. and options. Press and hold to power OFF. Source Exit SOURCE EXIT Press to change Press to return to media source a previous page or mode.
-
Page 9: Remote
Remote Functions Power Mute Press to power ON. Press to mute volume. Press to power OFF. Back / Fwd Previous / Next Press to search through an individual Press to skip between chapters or tracks. chapter or track. FLIP VOL – VOL + Stop Vol + / Vol −... -
Page 10: Menu Options
Menu Options Change projector settings by pressing the Menu button and selecting the Setup icon. Note: Not all settings are user adjustable. Picture Menu Picture Mode Standard Contrast Brightness Color Sharpness Tint Color Temperature Medium Aspect Ratio Auto Noise Reduction Middle Screen Select... -
Page 11: Sound Menu
Menu Options Sound Menu Sound Mode Standard Treble Bass Balance Surround Sound Select Menu Adjust 1. Sound Mode Select Music, Movie, User (custom), Sports, or Standard. 2. Treble & Bass Set Sound Mode to "User" to adjust these settings. 3. Balance Adjust the audio balance. -
Page 12: Options Menu
Options Menu OSD Language English BlueTooth Restored Factory Default Panel Rotate Select Menu Adjust 1. OSD Language Select English, French, or Spanish for the On Screen Display. 2. Bluetooth Turn Bluetooth ON or OFF. 3. Restore Factory Default Reset the projector and restore all of the default settings. 4. -
Page 13: Projector Setup
Projector Setup Power Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the rear of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON. Projector Placement For best results, place the projector in a dark room or other dimly lit area. -
Page 14: Viewing Options
FRONT TABLE Viewing Options The projector can be used to project onto a wall or screen. It can be mounted from a ceiling or placed on a table. FRONT CEILING Be sure to aim the remote at the sensor on the front or rear of the projector. See page 6 for sensor locations on the projector. -
Page 15: Ceiling Mount
Projector Setup Ceiling Mount To mount the projector from the ceiling, you will need mounting hardware as recommended by a professional. Mounting hardware and instructions are not included. Before mounting, be sure the ceiling structure can support the weight of the projector and the mount itself. It is recommended to have this unit mounted by a professional. -
Page 16: Connecting To Other Devices
Connecting to Other Devices Pairing to Bluetooth Wireless Speakers or Sound Bar NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or OFF from the OPTIONS Menu. 1. Enable Bluetooth on the receiver (external speakers, sound bar, etc.) to which you wish to connect. Devices such as smartphones, tablets, or computers are not Bluetooth receivers and will not connect to the projector. -
Page 17: Audio/Video Input
Connecting to Other Devices Audio/Video Input Requires a 3.5mm to RCA audio/video cable (included). 1. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit. 2. Connect the 3.5mm to RCA audio/video cable to the RCA stereo audio outputs and composite video output on the media player. -
Page 18: Computer Video (Vga)
Computer Video (VGA) Note: VGA connections do not support audio. You will need to use the computer's speakers to hear audio. Requires a VGA cable (not included) and a desktop PC or laptop with a VGA output. 1. Using a VGA cable, connect the VGA input on the projector to the VGA output on your computer. 2. -
Page 19: External Audio
Connecting to Other Devices External Audio Requires a 3.5mm to RCA audio/video cable (included). Note: Speakers must have their own power supply. 1. Using a 3.5mm to RCA stereo cable (included), connect the external powered speakers to the Headphone Jack on the projector. -
Page 20: Customer Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com...
