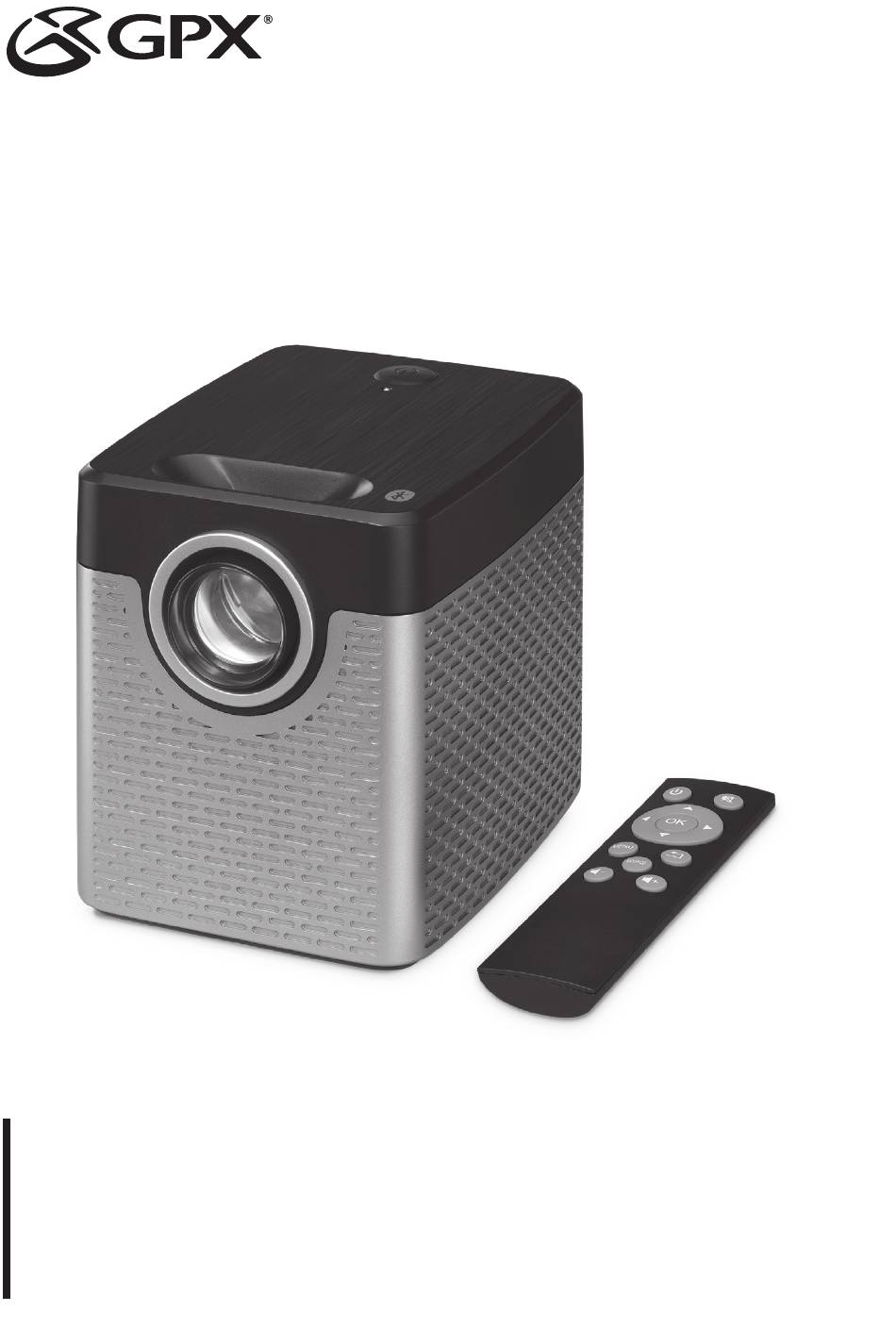

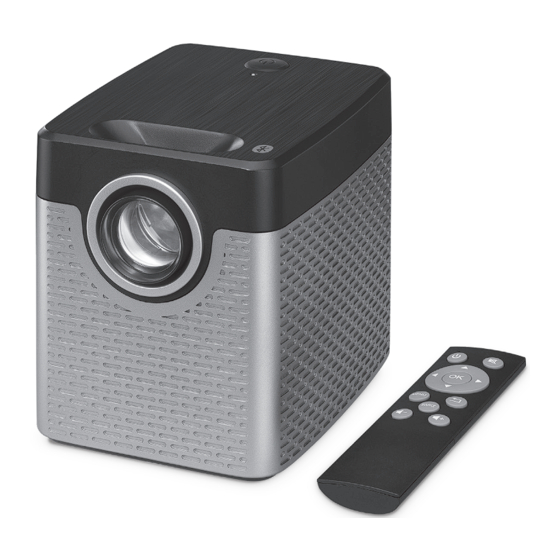

  • Page 1 Movie + Projector with Bluetooth User’s Guide for Model PJ504 v3168-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
  • Page 2 Safety Instructions & Warnings Important Safety Instructions Additional Warnings and Precautions • Read these Instructions. • Do not look directly into the projector light. • Keep these Instructions. • Use in well-ventilated area with ambient temperature between 41°F–104°C (5°C–40°C). • Heed all Warnings. •...
  • Page 3 • Objects filled with liquids, such as vases, shall not be placed WARNING: To reduce the risk of electric CAUTION on the apparatus. shock, do not remove cover (or back). No RISK OF ELECTRIC SHOCK DO NOT OPEN • Do not place any objects, heavy or otherwise, on the user-serviceable parts inside.
  • Page 4: Table Of Contents

    Table of Contents Overview Features - 5 Includes - 5 Projector Features & Inputs - 6–7 Remote Functions - 8 Batteries - 8 Projector Setup Power - 9 Projector Placement - 9 Angle Adjustment - 9 Viewing Options - 10 Image Adjustment - 10 Ceiling Mount - 11 Menu Options...
  • Page 5: Features

    Overview Features Includes • Native Resolution: 1280 x 720 (720p) • Remote control: requires 2 AAA batteries • Supports 480p, 720p, 1080i, 1080p (not included) • Aspect Ratio: 16:9, 4:3, Full, Panorama, Just scan • AC/DC power adapter • Brightness: 100 ANSI lumens •...
  • Page 6: Projector

    Projector Features & Inputs 1. Audio Out Port 4. HDMI Port 2. AV In Port 5. USB Port 3. IR Sensor - Sensor for receiving 6. DC In Port remote commands. 7. Speaker...
  • Page 7 Projector 8. Focus Adjust Knob - Turn to 11. Power Button - Press once to turn adjust screen focus by changing the projector on. Press and hold to the image size. enter standby mode. 9. Keystone Adjust Knob - Turn to 12.
  • Page 8: Remote

    Remote Functions Note: This projector does not have any operation buttons on the unit itself other than the power button. It can only operate using the remote. Operation Indicator Mute Press to mute volume. Power Press to power ON. Press to power OFF. Arrows/OK Press to navigate and confirm selections in Settings and other menu(s).
  • Page 9: Projector Setup

    Projector Setup Power Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the rear of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON. Projector Placement For best results, place the projector in a dark room or other dimly lit area.
  • Page 10: Viewing Options

    Projector Setup Viewing Options The projector can be used to project onto a wall or screen. It can be mounted from a ceiling or placed on a table. FRONT CEILING Be sure to aim the remote at the sensor on the front or rear of the projector. See page 6 for sensor locations on the projector.
  • Page 11: Ceiling Mount

    Projector Setup Ceiling Mount To mount the projector from the ceiling, you will need mounting hardware as recommended by a professional. Mounting hardware and instructions are not included. Before mounting, be sure the ceiling structure can support the weight of the projector and the mount itself. It is recommended to have this unit mounted by a professional.
  • Page 12: Menu Options

    Menu Options Access the projector settings menu by pressing the Menu button on the remote. Note: Not all settings are user adjustable. Picture Menu Picture mode Standard Contrast Brightness Color Sharpness Color Temperature Medium Menu 1. Picture Mode Use the Arrow Buttons on the remote to select Standard, Dynamic, Mild, or User (custom). The User setting allows you to adjust Contrast, Brightness, Color, and Sharpness.
  • Page 13: Sound Menu

    Menu Options Sound Menu Sound Mode Standard Treble Bass Balance BT Setting Menu 1. Sound Mode Select Standard, Movie, Music, Sports, and User (custom). The User setting allows you to adjust the Treble and Bass levels. 2. Treble Set the treble level between 0 and 100 using the Arrow buttons on the remote. 3.
  • Page 14: Options Menu

    Options Menu OSD Language English Flip Front Table Aspect Ratio 16:9 Restore Factory Default Software Update (USB) Menu 1. OSD Language Select English, French, or Spanish for the On Screen Display. 2. Flip Use the Arrow buttons on the remote to select Front Table, Front Ceiling, Rear Table, or Rear Ceiling.
  • Page 15: Connecting To Other Devices

    Connecting to Other Devices HDMI HDMI offers superior sound and picture quality and is the easiest way to play media from a computer, Blu-Ray player, or other device with an HDMI output. Requires an HDMI cable (not included) and a device with an HDMI output. 1.
  • Page 16: Audio/Video Input

    Connecting to Other Devices Audio/Video Input Requires a 3.5mm to RCA audio/video cable (not included). 1. Press and hold the Power button on the projector to enter Standby mode. 2. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit. 3.
  • Page 17: Pairing To Bluetooth Wireless Speakers Or Sound Bar

    Connecting to Other Devices Pairing to Bluetooth Wireless Speakers or Sound Bar NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or OFF from the Sound Menu (steps 2 and 3 below). 1.
  • Page 18: Usb Storage Devices

    Connecting to Other Devices USB Storage Devices Supports USB drives up to 256GB NTFS format. Supports mpeg1, mpeg2, mpeg4, mp3, rm, rmvb, avi, mov, divx, mkv, bmp, png, and jpeg 1. Press and hold the Power button on the projector to enter Standby mode before inserting a USB drive. Then, insert into the USB port and turn the unit on.
  • Page 19: Customer Support

    To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com...
