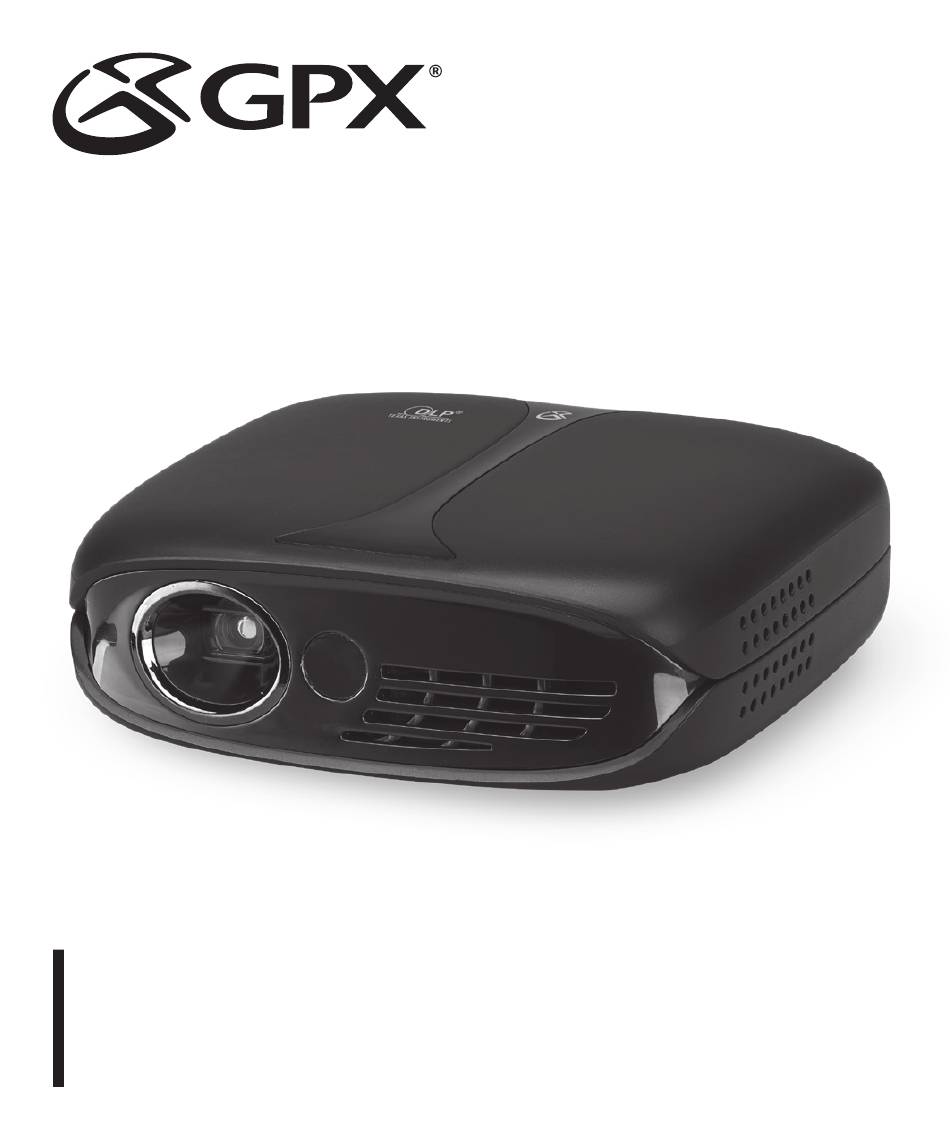

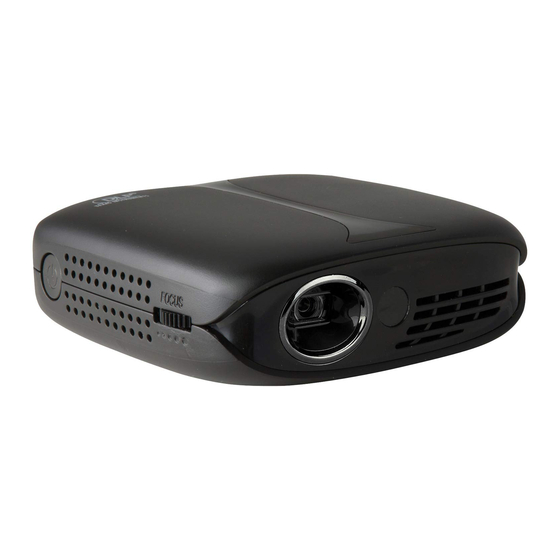

  • Page 1 Micro Projector User’s Guide for Model PJ809B v2248-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
  • Page 2 Safety Instructions & Warnings • Read these Instructions. has been exposed to rain or moisture, does not operate normally, or has been dropped. • Keep these Instructions. • Use only with a cart, stand, tripod, bracket, • Heed all Warnings. or table specified by the manufacturer, or •...
  • Page 3 ADDITIONAL WARNINGS receiver is connected. AND PRECAUTIONS • Consult the dealer or an experienced radio/ TV technician for help. • Do not look directly into the projector light. BATTERY WARNINGS • Use in well ventilated area with ambient temperature between 41°F~104°C •...
  • Page 4 –  Power supply or power cord is regarding use of the remote. If the unit is damaged. displaying erratic behavior move away from any fluorescent lighting, as it may be • Do not use the projector in places where the cause.
  • Page 5 WARNING: To reduce the CAUTION risk of electric shock, do not RISK OF ELECTRIC SHOCK DO NOT OPEN remove cover (or back). No ATTENTION user-serviceable parts inside. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR Refer servicing to qualified service personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating...
  • Page 6: Table Of Contents

    Table of Contents Safety Instructions & Warnings Connecting to Other Devices – 2 Connecting via Miracast – 18 Connecting via iOS Cast – 19 Overview Devices with an HDMI Output – 20 USB Drive – 22 Features – 7 Audio Output – 24 Includes –...
  • Page 7: Overview

    Overview Features Includes • DLP projector • HDMI Cable • Supports 480p, 720p, 1080i, 1080p • Remote • Native Resolution: 854 x 480 • Tripod • Brightness: 800 lumens • Micro-USB to USB cable • 3D display mode • AC/DC USB power adapter •...
  • Page 8: Front View

    Overview Front View Power Button Press to power ON or OFF (MASTER SWITCH MUST BE IN Cooling Vents ON POSITION). Focus Adjust Projector Lens Take care not to block any cooling ventilation.
  • Page 9: Rear View

    Rear View Battery Charge Indicator Light Built-in Speaker USB Port HDMI Input Master Remote Receiver Switch 3.5mm Audio Output DC Power Input...
  • Page 10: Remote

    Overview Remote Use the remote to make menu selections and adjust settings. Be sure to aim at the forward or rear facing remote receiver on the projector. 1. Power ON/OFF 2. Menu: Press to access play controls and menus in different play modes and apps.
  • Page 11: Remote Batteries

    Remote Batteries Requires 2 AAA batteries (not included)
  • Page 12: Setup

    Setup Charging the Battery Using a Micro-USB to USB cable (included), connect the DC IN (Micro-USB power input) on the projector to a USB port on a powered on computer or USB charging adapter (included). When the Master Switch is in the OFF position, the Battery Indicator Light will display a blue light while charging, and turn off when the battery is fully charged.
  • Page 13: Tripod Attachment

    Tripod Attachment Tripod included (1/4˝ thread diameter). Tripod Mount (underside)
  • Page 14: Projector Placement

    Setup Projector Placement • For best results, place the projector in a dark room or other dimly lit area with a dedicated projector screen. • If placing the projector behind the viewing screen (projector facing toward the viewers), a special rear projection screen will be required. •...
  • Page 15: Connecting To A Wi-Fi Network

    Connecting to a Wi-Fi Network • From the Main Menu, choose Setup. • Under the Network Menu, select Wi-Fi > Scan. • Select your Wi-Fi network from the list and enter your password using the remote. When finished entering your password, press the Return button on the remote to exit the keyboard, then press Confirm.
  • Page 16: Main Menu

    Setup Main Menu • Media: View files on a connected USB drive. • HDMI: Play media from a connected HDMI media source. • Miracast/iOS Cast: Play media from a connected Android or Apple device. Note: Netflix is not currently compatible with iOS Cast/Screen Mirroring on Apple devices. •...
  • Page 17: Setup Screen

    Setup Screen • Network: Wi-Fi Scan/Auto IP/Static IP • Projection: Brightness Mode/Mounting Mode/Automatic Trapezoid/Keystone Correction • Advanced: Language/Boot Source. Local Update/ Online Update. Restore Factory • Information: View projector information and software version IDs...
  • Page 18: Connecting To Other Devices

    Connecting to Other Devices Connecting via Miracast To use screen casting with the projector, it must first be connected to a Wi-Fi network. • From the Main Menu, select Miracast. • Open the screen casting display function of the Android device you wish to connect.
  • Page 19: Connecting Via Ios Cast

    Connecting via iOS Cast To use screen casting with the projector, it must first be connected to a Wi-Fi network. Note: Not all media apps or streaming services support screen casting via Apple devices. • Select iOS Cast from the Main Menu. Note: iOS devices and the projector must be connected to the same network.
  • Page 20: Devices With An Hdmi Output

    Connecting to Other Devices Devices with an HDMI Output Requires an HDMI cable (included) and a device with an HDMI output. • Using an HDMI cable, connect the HDMI input on the projector to the HDMI output on a compatible media player. •...
  • Page 21 Image from HDMI source will be seen here. Image Mode Aspect Ratio 3D Mode Brightness Contrast Color Image Sound Press the Menu button on the remote to access the above options during HDMI play.
  • Page 22: Usb Drive

    Connecting to Other Devices USB Drive • Connect a USB drive to the USB port on the rear of the unit. • From the Main Menu, select Media, then select Movie, Music, or Photo, depending on the type of media on the USB drive. •...
  • Page 23 Image Format JPG, JPEG, BMP, PNG Audio Format MP3, WMA, MP2, OGG, M4A, MA4, FLAC, 3GP, WAV, M3U, RM, WMV Video Format MP4, MOV, 3GP, AVI, FLV, ISO, M2TS, MKV, MPG, RMVB, TP, TRP, TS, MWV, VOB, DAT, ASF.H.265...
  • Page 24: Audio Output

    Connecting to Other Devices Audio Output Note: External speakers must have their own power supply. Requires a 3.5 mm to RCA stereo cable or 3.5mm audio cable (not included). • Using the appropriate audio cable, connect the Audio Out on the projector to external powered speakers or headphones.
  • Page 25 To avoid hearing damage, be sure the volume on the projector is turned down before connecting headphones, then gradually increase the volume to a comfortable level. 3.5mm audio cable Connect to Headphone Jack...
  • Page 26: Troubleshooting

    Troubleshooting Image is Blurry • Turn the Focus Adjustment wheel left or right to bring the image into focus. • Be sure the surface you are projecting onto is smooth and non-reflective. • Be sure the projector lens is not obscured, dirty, or scratched. Image is Misaligned •...
  • Page 27 "No Signal" Message • Be sure you are connecting to an HDMI output on your device. • Be sure the HDMI cable is firmly connected to the HDMI ports on both the projector and the connected device. • If connecting to a computer, check the display settings. Be sure the computer is set to display to other devices ("mirror display, duplicate display,"...
  • Page 28: Customer Support

    Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com...
