Reset Button - Aruba Networks AP-324 Installation Manual

accepting 56V DC (nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE),
such as a PoE midspan injector, or network infrastructure that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the access point. These ports have RJ45 female
connectors with the pin-outs shown in
Figure 5
Kensington Lock Slot
The 320 Series is equipped with a Kensington lock slot for additional security.
USB Interface
The 320 Series is equipped with a USB port for connectivity with cellular modems and other USV client devices.
When powered by an 802.3at or DC source the USB port can supply up to 5W. The USB is disabled with powered
by an 802.3af PoE source.
Figure 6

Reset Button

The reset button can be used to return the access point to factory default settings. To reset the access point,
refer to the following steps:
1. Power off the access point.
2. Press and hold the push button using a small, narrow object, such as a paper clip.
3. Power-on the access point without releasing the push button. The System Status LED will flash within 5
seconds.
4. Release the reset button.
The system status LED will flash again within 15 seconds indicating that the reset is completed. The access point
will now continue to boot with the factory default settings.
Power
The E0 and E1 ports support PoE-in, allowing the device to draw power from an 802.3at source (recommended)
or an 802.3af source. When both PoE and DC power sources are available, the access point defaults to using the
DC power source.
If PoE is not available, the 320 Series has a single 12V/30W DC power jack socket to support the AP-AC-12V30UN
AC-to-DC adapter kit (sold separately).
Power Modes
The 320 Series can operate in two power modes. The modes are not configurable and are determined by the
access point based on the amount of power available.
Aruba 320 Series Access Points

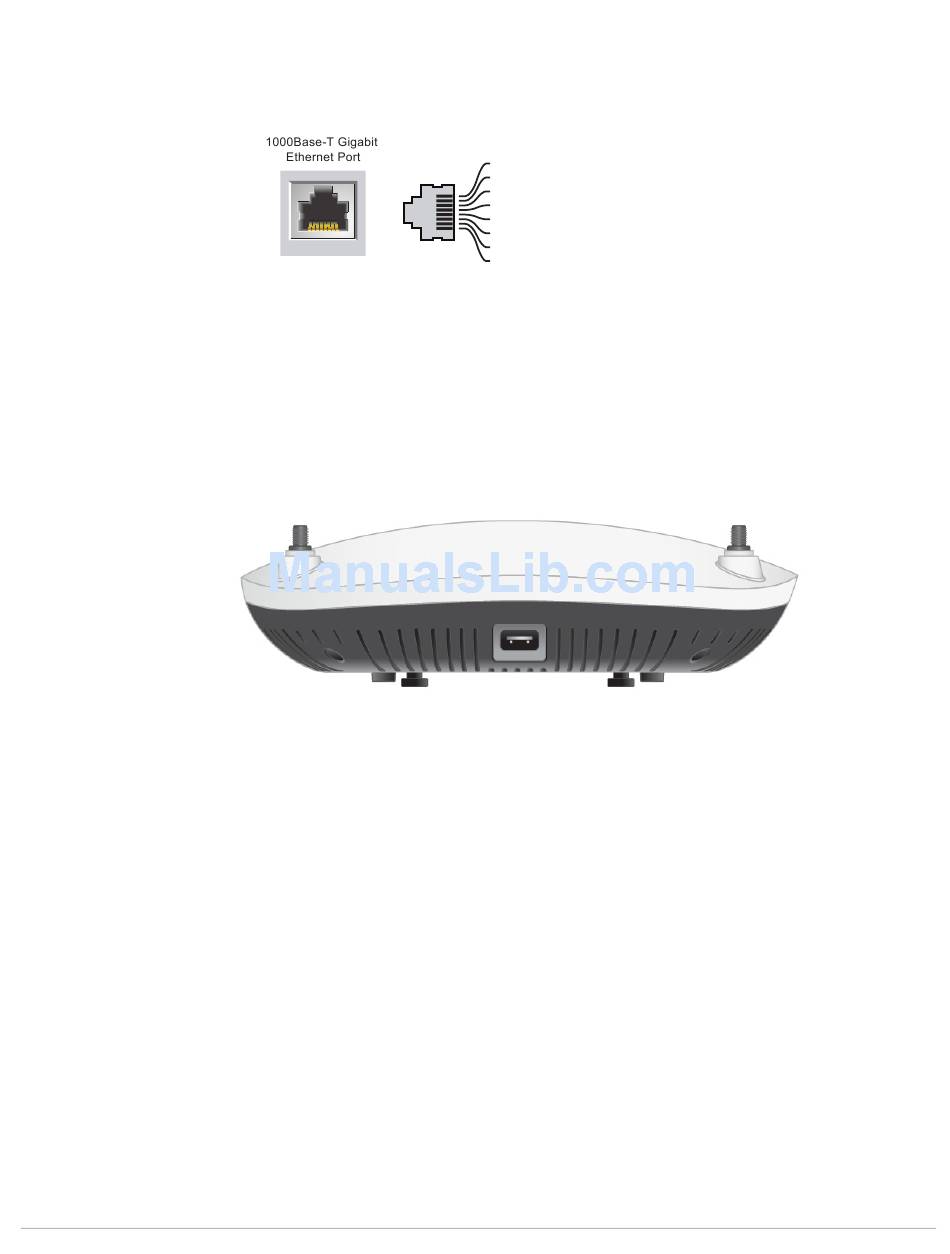

Gigabit Ethernet Port Pin-Out
USB Port
| Installation Guide
Figure 5.
Signal Name
RJ-45 Female
Pin-Out
BI_DA+
1
BI_DA-
2
BI_DB+
3
BI_DC+
4
BI_DC-
5
BI_DB-
6
BI_DD+
7
BI_DD-
8
Function
Bi-directional pair +A
Bi-directional pair -A
Bi-directional pair +B
Bi-directional pair +C
Bi-directional pair -C
Bi-directional pair -B
Bi-directional pair +D
Bi-directional pair -D
5
