AP-90 Series Mounting Kit
Installation Guide
The AP-90 Series mounting kit provides a wall mounting option and additional ceiling mounting options
for the AP-90 Series wireless access points (AP). The mounting kit includes the following items:
Wall mounting adapter
Adapter for 15/16-inch (2.4-cm) ceiling tile rails. Use this adapter to mount the AP on rails that are
recessed above the surface of the ceiling tile
Adapter for 9/16-inch (1.4 cm) ceiling tile rails. Use this adapter to adapt the integrated mounting
tabs to narrower rails (recessed or flush)

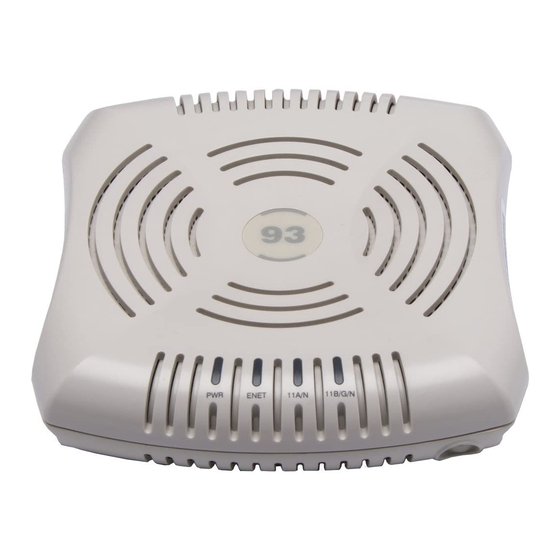

For complete information about selecting the location and setting up the AP, see the AP-92 and AP-93
Wireless Access Point Installation Guide.

Using the Wall Mount Adapter

The AP-90 Series wall mount adapter allows you to securely attach your AP-90 Series access point to a
wall.
1. Begin by attaching the wall mount adapter to the wall as shown in
a. Install any necessary wall anchors. Wall anchors are not included in this kit.
b. Align the screw holes in the mounting bracket with the previously installed anchors or
c. Insert the screws to secure the mounting bracket. Screws are not included in this kit.

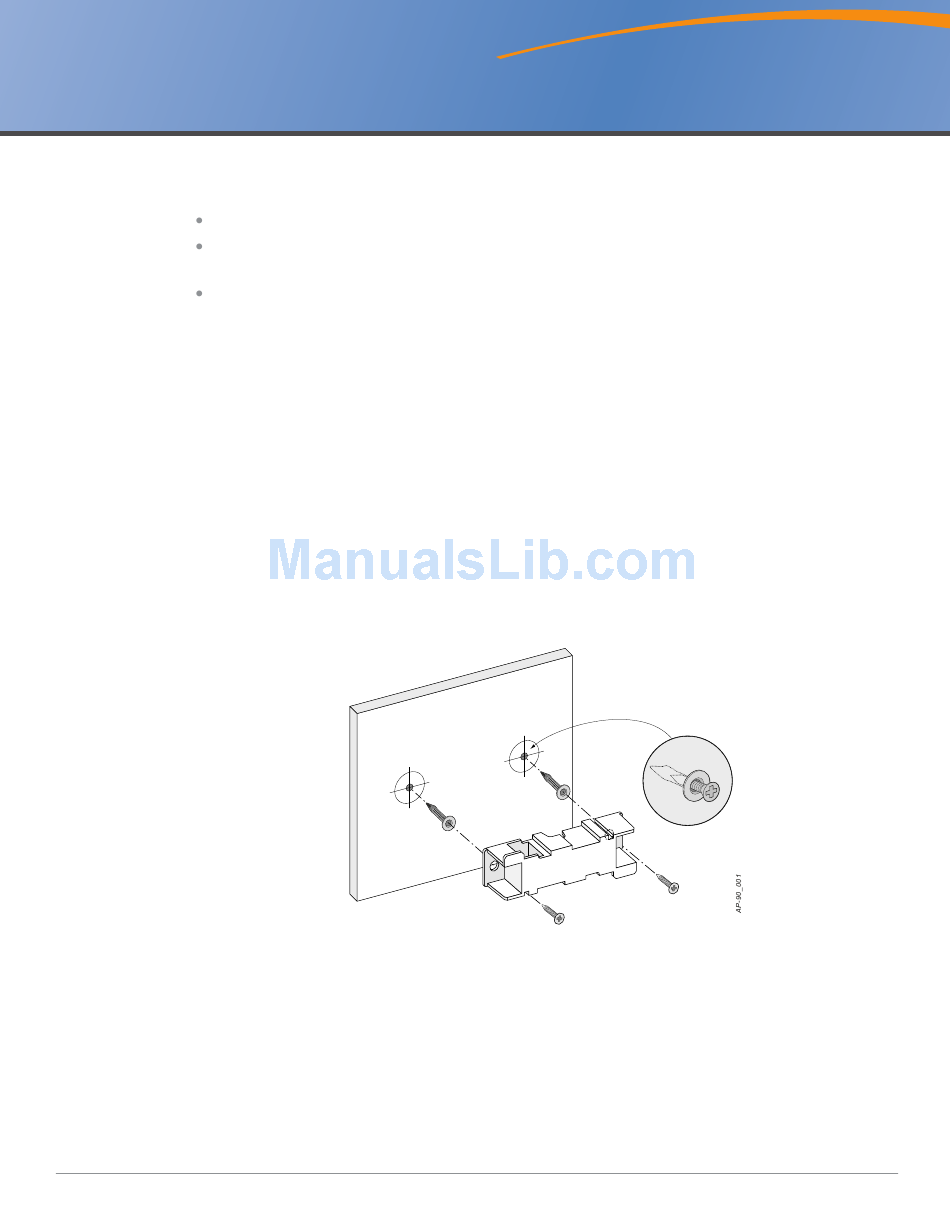

Figure 1 Attaching the Adapter to a Wall
2. Insert the necessary cables into the ports on the AP. Optionally, you can route the cables through
the cut-out in the adapter if they are coming from below the AP.
3. Attach the AP to the secured mounting adapter as shown in
a. Align the AP with a mounting adapter, placing the AP so that it's mounting tabs are at an angle of
b. Pushing toward the wall, rotate the AP counter-clockwise until it clicks into place (see
0510737-01 | June 2010
demarcated screw points.
approximately 30 degrees to the adapter.
Figure 1.
Figure 2.
Figure 2)
