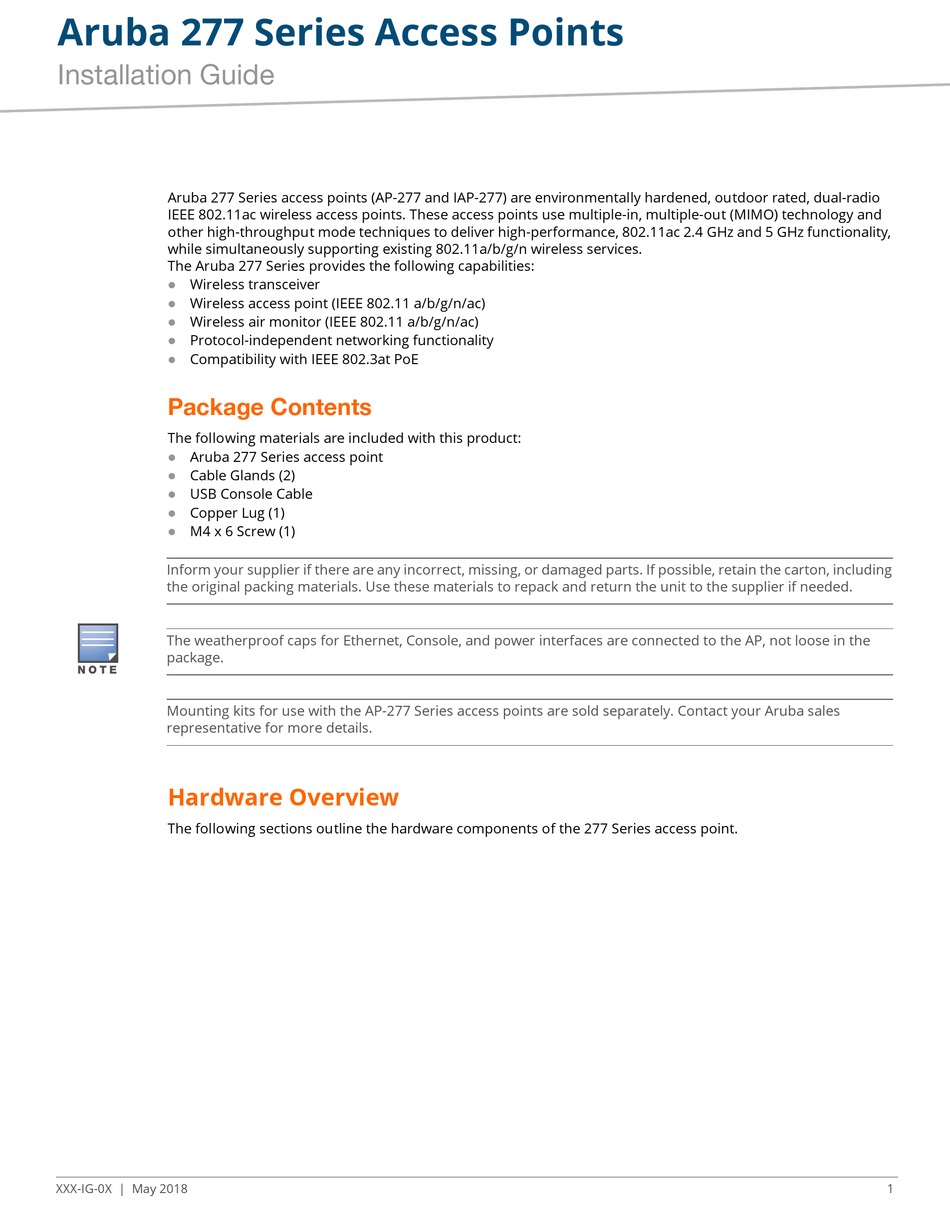

Aruba 277 Series Access Points

Installation Guide

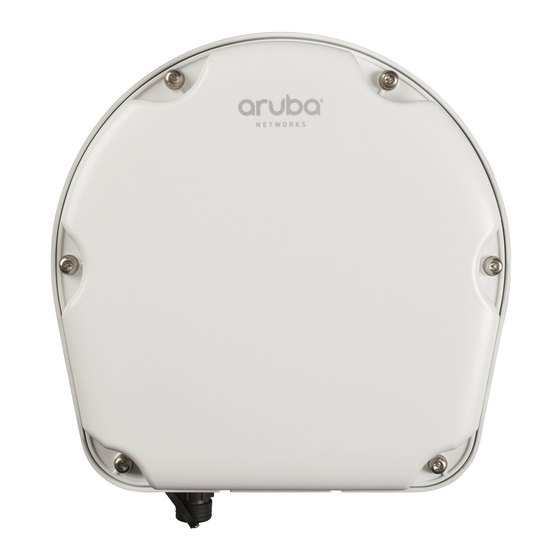

Aruba 277 Series access points (AP-277 and IAP-277) are environmentally hardened, outdoor rated, dual-radio
IEEE 802.11ac wireless access points. These access points use multiple-in, multiple-out (MIMO) technology and
other high-throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz functionality,
while simultaneously supporting existing 802.11a/b/g/n wireless services.
The Aruba 277 Series provides the following capabilities:
Wireless transceiver

Wireless access point (IEEE 802.11 a/b/g/n/ac)

Wireless air monitor (IEEE 802.11 a/b/g/n/ac)

Protocol-independent networking functionality

Compatibility with IEEE 802.3at PoE


Package Contents

The following materials are included with this product:
Aruba 277 Series access point

Cable Glands (2)

USB Console Cable

Copper Lug (1)

M4 x 6 Screw (1)

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
The weatherproof caps for Ethernet, Console, and power interfaces are connected to the AP, not loose in the
package.
Mounting kits for use with the AP-277 Series access points are sold separately. Contact your Aruba sales
representative for more details.

Hardware Overview

The following sections outline the hardware components of the 277 Series access point.
