Aruba Networks 370P Series Installation Manual

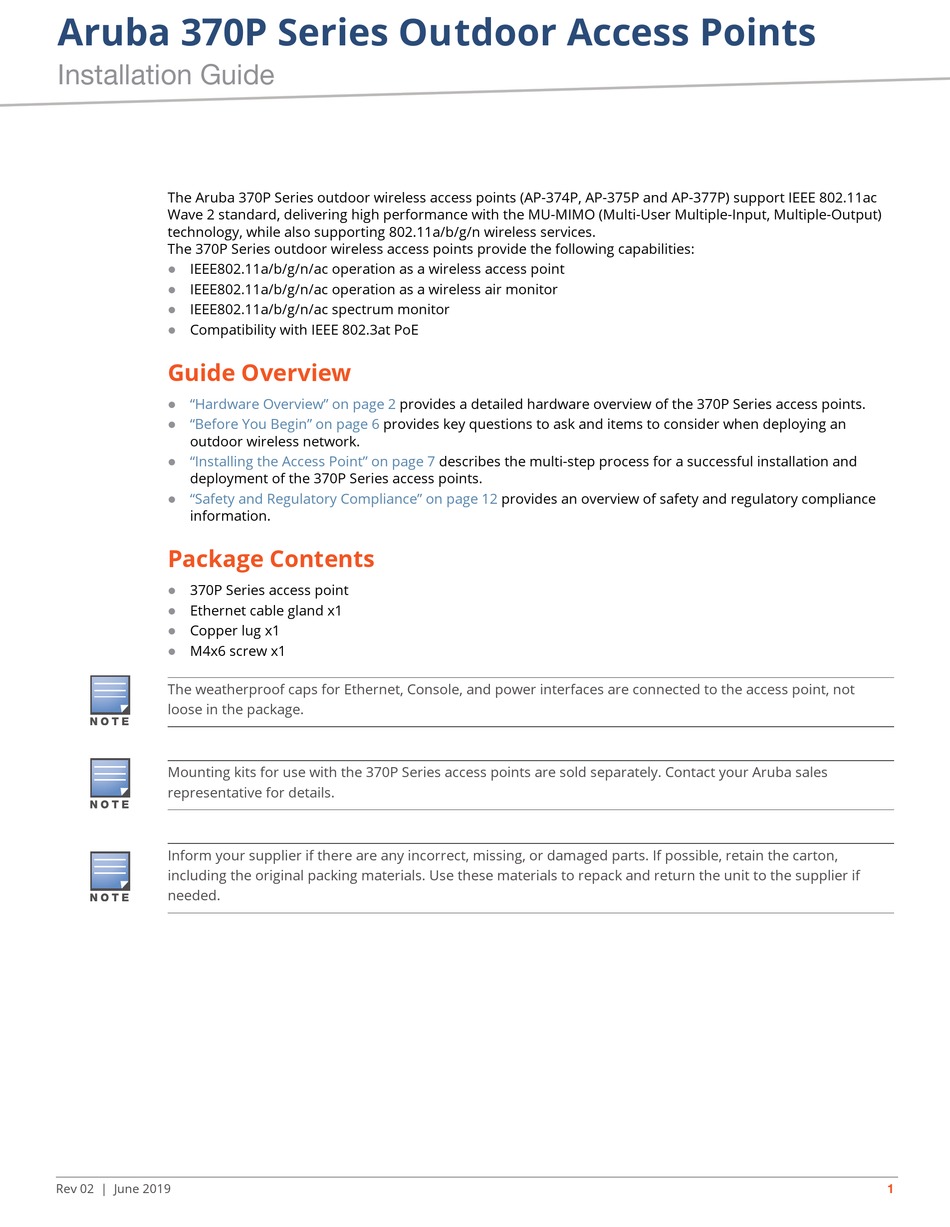

Aruba 370P Series Outdoor Access Points
Installation Guide

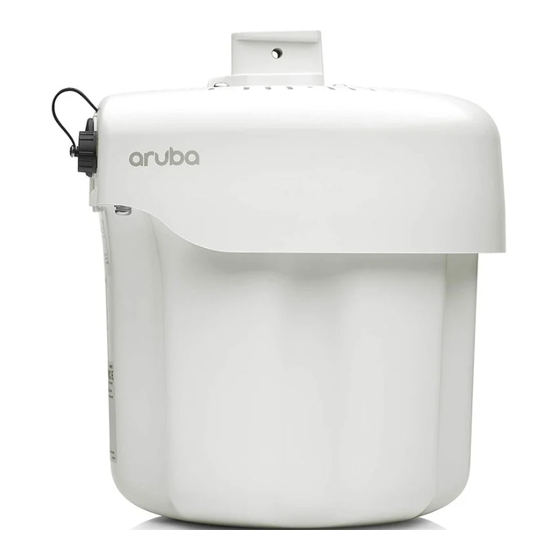

The Aruba 370P Series outdoor wireless access points (AP-374P, AP-375P and AP-377P) support IEEE 802.11ac
Wave 2 standard, delivering high performance with the MU-MIMO (Multi-User Multiple-Input, Multiple-Output)
technology, while also supporting 802.11a/b/g/n wireless services.
The 370P Series outdoor wireless access points provide the following capabilities:
IEEE802.11a/b/g/n/ac operation as a wireless access point

IEEE802.11a/b/g/n/ac operation as a wireless air monitor

IEEE802.11a/b/g/n/ac spectrum monitor

Compatibility with IEEE 802.3at PoE

Guide Overview
"Hardware Overview" on page 2

"Before You Begin" on page 6

outdoor wireless network.
"Installing the Access Point" on page 7

deployment of the 370P Series access points.
"Safety and Regulatory Compliance" on page 12

information.
Package Contents
370P Series access point

Ethernet cable gland x1

Copper lug x1

M4x6 screw x1

The weatherproof caps for Ethernet, Console, and power interfaces are connected to the access point, not
loose in the package.
Mounting kits for use with the 370P Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Rev 02 | June 2019
provides a detailed hardware overview of the 370P Series access points.
provides key questions to ask and items to consider when deploying an
describes the multi-step process for a successful installation and
provides an overview of safety and regulatory compliance
1
