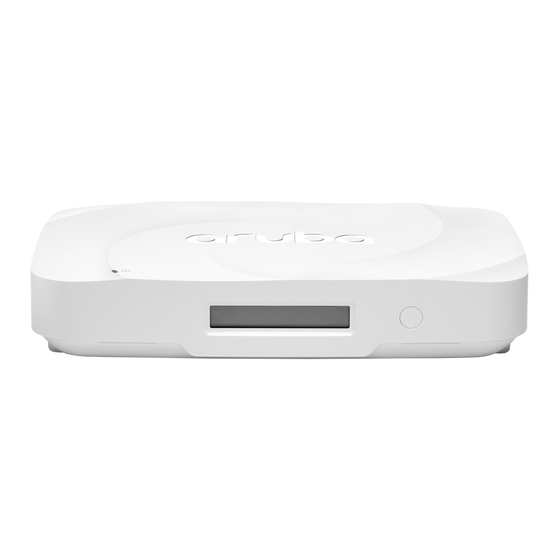

605R Series Remote Access Points
Installation Guide
The Aruba 605R Series access points are dual-radio tri-band 802.11ax Wi-Fi 6E remote access points that
provide connectivity for both wired and wireless client devices.
Package Contents
The following materials are included with this product:
AP-605R Access Point x 1
n
AC-to-DC Power Adapter (with power cord) x 1
n
(For AP-605R bundle only) Aruba AP-605CM12 LTE CAT12 Cellular Module (pre-installed) x 1
n
To simplify the ordering, Aruba offers the AP-605R bundle that combines an AP-605R access point, a power adapter
(with power cord) and a AP-605CM12 LTE CAT12 Cellular Module (pre-installed)
Hardware Overview

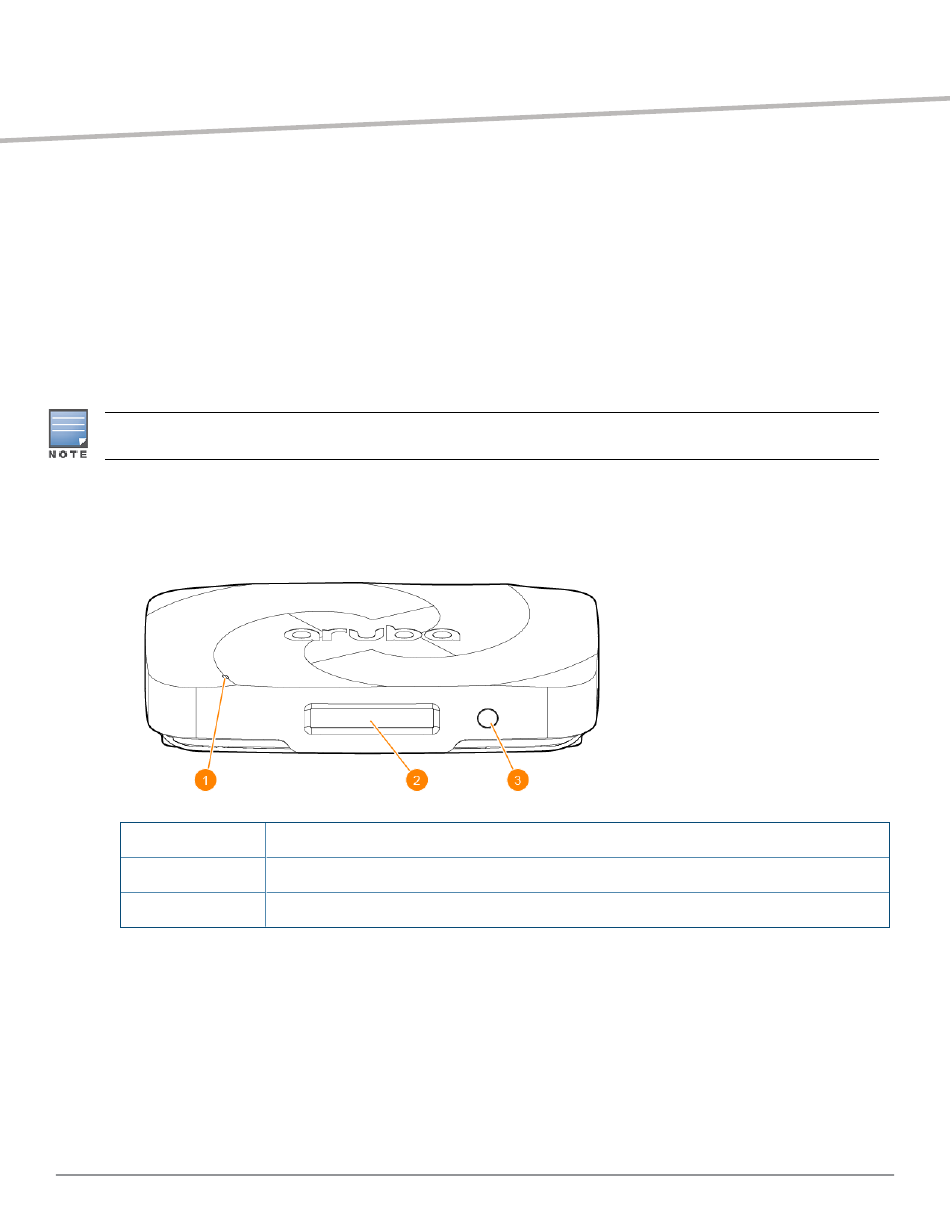

Figure 1 AP-605R Front View
1
2
3
605R Series Remote Access Points | Installation Guide
System Status LED
LCD Panel
LCD Button
1
Advertisement
Table of Contents
Related Manuals for Aruba Networks 605R Series
Summary of Contents for Aruba Networks 605R Series
- Page 1 605R Series Remote Access Points Installation Guide The Aruba 605R Series access points are dual-radio tri-band 802.11ax Wi-Fi 6E remote access points that provide connectivity for both wired and wireless client devices. Package Contents The following materials are included with this product: AP-605R Access Point x 1 AC-to-DC Power Adapter (with power cord) x 1...
-
Page 2: System Status Led
Figure 2 AP-605R Bundle Front View System Status LED LCD Panel LCD Button The antennas of the LTE module are in a folded position when taken out of the package. To ensure the antennas function well, put the antennas in a vertical position as shown in . System Status LED The system status LED is located on the top panel of the access point indicates the system status of the access point. -
Page 3: Lcd Panel
LED Display Settings The LEDs have three operating modes that can be selected in the system management software: Normal mode: default after power on. Refer to Table Off mode: the LED is off Blink mode: the LED blinks green Pressing the reset button for less than 10 seconds during normal operation will toggle the LED mode between “normal”... -
Page 4: Reset Button
Figure 3 605R Series Rear and Side View Reset Button Micro-B Console Port E0 Ethernet Port (Orange) E1 Ethernet Port (Orange and Blue) E2 Ethernet Port (Blue) E3 Ethernet Port (Blue) E4 Ethernet Port (Red) USB Interface Kensington Lock Slot... -
Page 5: Ethernet Ports
Aruba support portal. Ethernet Ports The 605R Series access point has five Ethernet ports (E0 - E4), shown in Figure The E0 port is a 100/1000Base-T auto-sensing MDI/MDIX uplink port . The E1 port is a 100/1000/2500Base-T auto-sensing MDI/MDIX port, which can be configured as a secondary uplink port or downlink port by system management software. -
Page 6: Usb Interface
Table 3: Ethernet Port LEDs Color/State Meaning Left Meet one of the following conditions: access point is powered off port is disabled no link established Green - blinking Activity detected on the port Green - solid Link established at optimum speed (1Gbps or 2.5Gbps) Amber - solid Link established at reduced speed (100Mbps) Right (E4 only) -
Page 7: Access Point Installation
(class 3.2 per ETSI 300 019). You can put the 605R Series access point on any flat surface such as a desktop. Installing the SIM Card (For AP-605R Bundle Only) To use the AP-605CM12 cellular module, you need to install a SIM card to the SIM card tray on the AP-... - Page 8 Figure 7 Removing Cellular Module from the Access Point Captive screws Mounting tab 2. Insert the SIM ejector needle (provided in package) into the small hole on the SIM card tray. The SIM card tray will pop open. See Figure Figure 8 Opening the SIM Card Tray 3.
- Page 9 Figure 9 Inserting a SIM Card 5. Align the AP-605CM12 cellular module with the opening in the access point. 6. Insert the AP-605CM12 cellular module into the access point and tighten the two M3 captive screws using a Phillips screwdriver. See Figure Figure 10 Installing Cellular Module onto Access Point Software...
-
Page 10: Verifying Post-Installation Connectivity
The regulatory model number RMN is not the marketing name or model number of the product. The following regulatory model numbers apply to the 605R Series AP-605R RMN: APINR605 AP-605CM12 RMN: APINCM12 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s author-... - Page 11 RF Radiation Exposure Statement: This equipment complies with RF radiation exposure limits. This equipment should be installed and operated with a minimum distance of 7.87 inches (20 cm) between the radiator and your body for 2.4 GHz, 5 GHz, and 6GHz operations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 12 (2) L'exploitation sur les plates-formes pétrolières, les voitures, les trains, les bateaux et les aéronefs est interdite, sauf pour les gros aéronefs volant au-dessus de 10 000 pieds. EU and UK Regulatory Conformity The Declaration of Conformity made under Radio Equipment Directive 2014/53/EU as well as the United Kingdom's Radio Equipment Regulations 2017/UK is available for viewing below.
- Page 13 Japan Korean México La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debeaceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Нормативные...
- Page 14 Taiwan 第 十 二條 經 型 式認 證 合 格 之低 功 率 射 頻電 機 ， 非 經許 可 ， 公 司， 商 號 或 使用 者 均 不得 擅 自 變 更頻 率 、 加 大功 率 或 變...
-
Page 15: Contacting Support
FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. Operation in the 5.9725-7.125GHz band is prohibited for control of or communication with unnamed aircraft systems. - Page 16 if not, send a written request for specific software version and product for which you want the open source code. Along with the request, please send a check or money order in the amount of US $10.00 to: Hewlett Packard Enterprise Company Attn: General Counsel WW Corporate Headquarters 1701 E Mossy Oaks Rd Spring, TX 77389...
