Aruba Networks AP-114 Installation Manual

AP-110 Series Wireless Access Point
Installation Guide
The Aruba AP-114 and AP-115 wireless access points support the IEEE 802.11n
standard for high-performance WLAN. These access points use MIMO (Multiple-
in, Multiple-out) technology and other high-throughput mode techniques to
deliver high-performance, 802.11n 2.4 GHz and 5 GHz functionality while
simultaneously supporting existing 802.11a/b/g wireless services. The AP-110
Series access points work only in conjunction with an Aruba Controller.
The Aruba AP-110 Series access point provides the following capabilities:
 Wireless transceiver
 Protocol-independent networking functionality
IEEE 802.11a/b/g/n operation as a wireless access point

 IEEE 802.11a/b/g/n operation as a wireless air monitor
 Compatibility with IEEE 802.3at PoE+ and 802.3af PoE
 Central management configuration and upgrades through a controller
The AP-110 Series requires ArubaOS 6.3.1.0 or later.
Package Contents
AP-114 or AP-115 access point

 9/16" and 15/16" Ceiling Rail Adapters
 Installation guide (this document)
Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use
these materials to repack and return the unit to the supplier if needed.

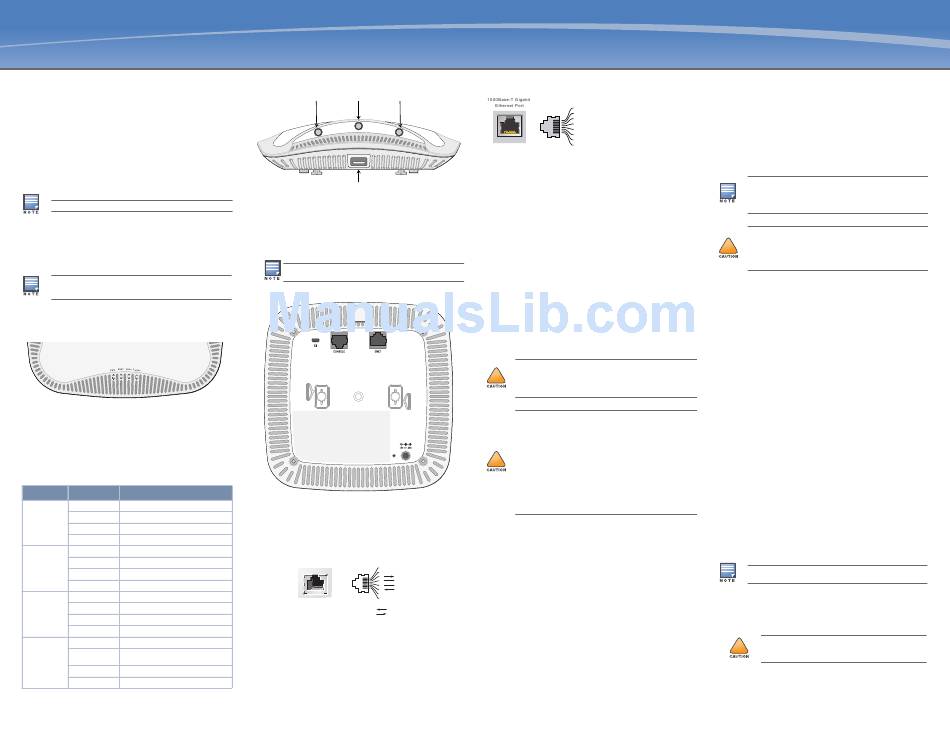

AP-110 Series Hardware Overview
Figure 1 AP-110 Series LEDs
LEDs
The AP-110 Series is equipped with four LEDs that indicate the status of the
various components of the AP.
 PWR: Indicates whether or not the AP-110 Series is powered-on
ENET: Indicates the status of the AP-110 Series' Ethernet port

 5 GHz: Indicates the status of the 802.11a/n radio
 2.4 GHz: Indicates the status of the 802.11b/g/n radio
Table 1 AP-110 Series Series LED Meanings
LED Color/State Meaning
PWR Off No power to AP
Red Initial power-up
Green - Flashing AP booting
Green - Steady AP ready
ENET Off Ethernet link unavailable
Yellow - Steady 10/100Mbps Ethernet link established
Green - Steady 1000Mbps Ethernet link established
Flashing Ethernet link activity
5 GHz Off 5 GHz radio disabled
Yellow - Steady 5 Ghz radio enabled in non-HT WLAN mode
Green - Steady 5 Ghz radio enabled in HT WLAN mode
Flashing - Green 5 Ghz Air or Spectrum Monitor
2.4 GHz Off 2.4 GHz radio disabled
Yellow - Steady 2.4 Ghz radio enabled in non-HT WLAN
mode
Green - Steady 2.4 Ghz radio enabled in HT WLAN mode
Flashing - Green 2.4 Ghz Air or Spectrum Monitor
Figure 2 AP-110 Series Side (AP-114 shown)
ANT0 ANT1 ANT2
USB Port
External Antenna Connectors
The AP-114 is equipped with three external antenna connectors. The connectors
are labeled ANT0, ANT1, and ANT2, and correspond to radio chains 0, 1, and 2.
USB Interface
The AP-110 Series is equipped with a USB interface for connectivity with cellular
modems.
The USB interface is disabled when the AP-110 Series is powered from
802.3af PoE.
Figure 3 AP-110 Series Rear
Console Port
The serial console port allows you to connect the AP to a serial terminal or a
laptop for direct local management. This port is an RJ-45 female connector with
the pinouts described in Figure 4. Connect it directly to a terminal or terminal
server using an Ethernet cable.
Figure 4 Serial Port Pin-Out
Serial RJ-45 Female
Console Port
Pin-Out
1
2
3 TxD
4 GND
5 GND
6 RxD
7
8
Direction
Input
Output
Ethernet Port
AP-110 Series is equipped with one 10/100/1000Base-T (RJ-45) auto-sensing,
MDI/MDX wired-network connectivity port. This port supports IEEE 802.3af and
802.3at Power over Ethernet (PoE) compliance, accepting 48 VDC (nominal) as a
standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE)
such as a PoE midspan injector, or network infrastructure that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the AP. These ports
have RJ-45 female connectors with the pin-outs shown in Figure 5.
Figure 5 Gigabit Ethernet Port Pin-Out
RJ-45 Female Signal Name Function
Pin-Out
1 BI_DA+ Bi-directional pair +A
2 BI_DA- Bi-directional pair -A
BI_DB+ Bi-directional pair +B
3
BI_DC+
4 Bi-directional pair +C
5 BI_DC- Bi-directional pair -C
BI_DB- Bi-directional pair -B
6
BI_DD+
7 Bi-directional pair +D
8 BI_DD- Bi-directional pair -D
DC Power Socket
If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately)
can be used to power the AP-110 Series.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used
to power this device, as long as it complies with all applicable local regulatory
requirements and the DC interface meets the following specifications:
12 VDC (+/- 5%)/18W

 Center-positive 1.7/4.0 mm circular plug, 9.5 mm length
Reset Button
The reset button can be used to return the AP to factory default settings. To reset
the AP:
1. Power off the AP.
2. Press and hold the reset button using a small, narrow object, such as a
paperclip.
3. Power-on the AP without releasing the reset button. The power LED will
flash within 5 seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is
completed. The AP will now continue to boot with the factory default settings.
Before You Begin
FCC Statement: Improper termination of access points installed in the
United States configured to non-US model controllers will be in violation of
!
the FCC grant of equipment authorization. Any such willful or intentional
violation may result in a requirement by the FCC for immediate termination
of operation and may be subject to forfeiture (47 CFR 1.80).
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands.
Please refer to the ArubaOS User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande
fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au ArubaOS User
Guide pour les details des restrictions.
!
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im ArubaOS
User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla ArubaOS User Guide per avere informazioni detagliate sulle
restrizioni.
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their
placement have been determined, the Aruba controller(s) must be installed and
initial setup performed before the Aruba APs are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for
the software version installed on your controller.
AP Pre-Installation Checklist
Before installing your AP-110 Series AP, ensure that you have the following:
 CAT5e or better UTP cable of required length
 One of the following power sources:
IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The

POE source can be any power source equipment (PSE) controller or
midspan PSE device
Aruba AP AC-DC adapter kit (sold separately)

 Aruba Controller provisioned on the network:
 Layer 2/3 network connectivity to your access point
One of the following network services:

 Aruba Discovery Protocol (ADP)
DNS server with an "A" record

DHCP Server with vendor-specific options

Summary of the Setup Process
Successful setup of an AP-110 Series access point consists of five tasks, which
must be performed in this order:
1. Verify pre-installation connectivity.
2. Identify the specific installation location for each AP.
3. Install each AP.
4. Verify post-installation connectivity.
5. Configure each AP.
Aruba Networks, Inc., in compliance with governmental requirements, has
designed the AP-110 Series access points so that only authorized network
administrators can change the settings. For more information about AP
configuration, refer to the ArubaOS Quick Start Guide and ArubaOS User
Guide.
Access points are radio transmission devices and as such are subject to
governmental regulation. Network administrators responsible for the
!
configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel
assignments appropriate to the location in which the access point will be
used.
Verifying Pre-Installation Connectivity
Before you install APs in a network environment, make sure that the APs are
able to locate and connect to the controller after power on.
Specifically, you must verify the following conditions:
 When connected to the network, each AP is assigned a valid IP address
APs are able to locate the controller

Refer to the ArubaOS Quick Start Guide for instructions on locating and
connecting to the controller.
Identifying Specific Installation Locations
You can mount the AP-110 Series access point on a wall or on the ceiling. Use the
AP placement map generated by Aruba's Airwave VisualRF Plan software
application to determine the proper installation location(s). Each location
should be as close as possible to the center of the intended coverage area and
should be free from obstructions or obvious sources of interference. These RF
absorbers/reflectors/interference sources will impact RF propagation and
should have been accounted for during the planning phase and adjusted for in
VisualRF plan.
Identifying Known RF Absorbers/Reflectors/Interference
Sources
Identifying known RF absorbers, reflectors, and interference sources while in
the field during the installation phase is critical. Make sure that these sources are
taken into consideration when you attach an AP to its fixed location. Examples
of sources that degrade RF performance include:
Cement and brick

 Objects that contain water
 Metal
Microwave ovens

 Wireless phones and headsets
Installing the AP
Service to all Aruba Networks products should be performed by trained
service personnel only.
Using the Ceiling Rail Adapter
The AP-110 Series ships with two ceiling rail adapters for 9/16" and 15/16" ceiling
rails. Additional wall mount adapters and ceiling rail adapters for other rail
styles are available as accessory kits.
Make sure the AP fits securely on the ceiling tile rail when hanging
!
the device from the ceiling, because poor installation could cause it
to fall onto people or equipment.
1. Pull the necessary cables through a prepared hole in the ceiling tile near
where the AP will be placed.
2. Place the adapter against the back of the AP with the adapter at an angle of
approximately 30 degrees to the tabs (see Figure 6).
