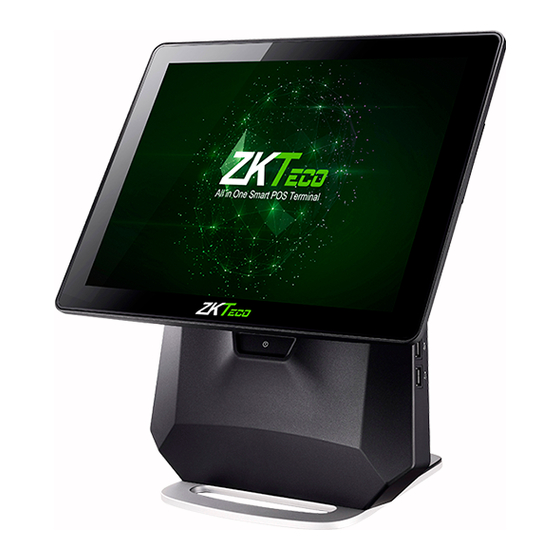

ZKTeco ZK75 Series User Manual
  1. Manuals
  2. Brands
  3. ZKTeco Manuals
  4. Touch terminals
  5. ZK75 Series
  6. User manual

ZKTeco ZK75 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
ZK75 Series
Version 1.1
Date: September, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZK75 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco ZK75 Series

Summary of Contents for ZKTeco ZK75 Series

  • Page 1 USER MANUAL ZK75 Series Version 1.1 Date: September, 2017...
  • Page 2 Important Claim Firstly, thank you for purchasing this hybrid-bio terminal. Before using, please read this manual carefully to avoid the unnecessary damage! The company reminds you that the proper use will improve the use affect and authentication speed. No written consent from our company, any unit, or individual isn’t allowed to excerpt, copy the content of this manual in part or in full, also spread in any form.
  • Page 3 All rights reserved. Except as specifically permitted herein, no portion of the information in this document may be reproduced in any form or by any means without the prior written permission from ZKTeco. Due to the constant renewal of products, the company cannot undertake the actual product in consistence with the information in the document, also any dispute caused by the difference between the actual technical parameters and the information in this document.

  • Page 4: Safety Instructions

    Safety Instructions Read these instructions carefully. Keep these instructions for future reference. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning. Please keep this equipment from humidity. Lay this equipment on a reliable surface when install.

  • Page 5: Table Of Contents

    Table of Contents 1. Packing List ......................................1 1.1 Standard Accessories ....................................1 1.2. Optional Accessories ....................................1 2. System View ....................................... 2 2.1. Rear View ..........................................2 2.2. Side View ..........................................2 2.3. Front View ........................................... 2 2.4. Back View..........................................3 2.5.
  • Page 6 3.18. RJ11(Cash Drawer) connector Pin Definition......................... 14 4. System Assembly & Disassembly ............................16 4.1. HDD ............................................. 16 4.2. Memory ..........................................16 4.3. MSR ............................................17 4.4. VFD ............................................17 4.5. 2 Display ........................................17 4.6. Wi-Fi ............................................. 18 5. Device Driver Installation ................................ 19 5.1.

  • Page 7: Packing List

    1. Packing List 1.1 Standard Accessories System (with stand) Power Adapter Power Cord Driver Bank 1.2. Optional Accessories Single MSR 8” /10” 2 Display ZK75 Series User Manua l...

  • Page 8: System View

    2. System View 2.1. Rear View ☆ Please make sure 19V DC plug in the left righdirection before plugging in DC jack. 2.2. Side View 2.3. Front View ZK 75 Series User Manual...

  • Page 9: Back View

    3*RJ45 BIOS Insyde BIOS Power AC 19V 90W Adaptor Thermal Solution Fan-less Dimension 366 (W)x 377 (H) x265 (D)mm Operating Temperature 0°C ~ 35°C Storage Temperature -20°C ~ 60°C Storage Humidity 20% ~ 80%, non-condensing ZK75 Series User Manua l...

  • Page 10: Internal Layout

    Display ZK7550 ZK7550W LCD Panel Size 15-inch TFT LCD (LED Backlight) 15.6-inch TFT LCD (LED Backlight) Resolution 1024*768 Pixels 1366*768 Pixels Brightness 350 cd/m 250 cd/m Touch Panel 5-wire Resistive Type / Projected Capacitive Type Note:Intel® Celeron J1900 CPU does not support POS Ready 2009 2.6.

  • Page 11: Pin Definition

    3. Pin Definition 3.1. 2-Layer USB2.0 connector Pin Definition Definition Definition 3.2. 2-Layer USB3.0+2.0 connector Pin Definition Definition Definition 3.3. LAN: RJ45 Pin Definition ZK75 Series User Manua l...

  • Page 12: Line-Out Jack Pin Definition

    Definition MDI0A+ MDI0A- MDI1A+ MDI1A- MDI2A+ MDI2A- MDI3A+ MDI3A- 3.4. LINE-OUT JACK Pin Definition Definition GND_AUD GND_AUD LINE_OUTR2 LINE_OUTL2 LINE2-JD 3.5. VGA+USB+DC12V connector Pin Definition Definition Definition DDC_CLK DDC_DATA ZK 75 Series User Manual...

  • Page 13: Vga Pin Definition

    VSYNC +12V HSYNC USB D- +12V BLUE USB D+ Reserve for VGA +5V GREEN 3.6. VGA Pin Definition Definition Definition Green Blue I2C DATA HSYNC VSYNC I2C CLK 3.7. LVDS connector Pin Definition ZK75 Series User Manua l...

  • Page 14: Edp Connector Pin Definition

    Definition Definition +3.3V +3.3V +3.3V +3.3V DATA1- DATA0- DATA1+ DATA0+ CLK- DATA2- CLK+ DATA2+ DATA3- Brightness DATA3+ BKL enable LED Power +12V LED Power +12V LED Power +12V LED Power +12V 3.8. EDP connector Pin Definition: Definition Definition HotPlug Detect ZK 75 Series User Manual...

  • Page 15: Dc Jack Pin Definition

    TxD0- TxD0+ BKL enable Brightness AUX+ AUX- +12V +3.3V +12V +3.3V +12V +12V 3.9. DC Jack Pin Definition Definition +19V Ground +19V 3.10. RJ45(COM) connector Pin Definition Definition +5V/+12V ZK75 Series User Manua l...

  • Page 16: Sata: 22-Pin Sata Pin Definition

    DSR# DTR# RST# CTS# 3.11. SATA: 22-pin SATA Pin Definition Definition Definition SATA_TX0_P SATA_TX0_N SATA_RX0_N SATA_RX0_P ZK 75 Series User Manual...

  • Page 17: Mini-Pcie Pin Definition

    3.12. Mini-PCIE Pin Definition Definition Definition WAKE# +V3.3V SMB__CLK PCIE_TX_N SMB_DATA PCIE_TX_P +1.5V CLKREQ# USB D- USB D+ CLK_PCIE_N CLK_PCIE_P ZK75 Series User Manua l...

  • Page 18: Int. Speaker Pin Definition

    W_DISABLE# +V1.5V RESET# PCIE_RX_N +3.3V_AUX +V3.3V PCIE_RX_P +V1.5V 3.13. Int. Speaker Pin Definition Definition Left Out + Left Out - Right Out- Right Out+ 3.14. Touch Button for Power On/Off connector Pin Definition Definition ZK 75 Series User Manual...

  • Page 19: Nfc Port Connector Pin Definition

    +5V Standby +5V Status Power On# 3.15. NFC port connector Pin Definition Definition USB D- USB D+ 3.16. Sideward USB port connector Pin Definition Definition USB D+ USB D- USB D+ USB D- ZK75 Series User Manua l...

  • Page 20: Front Panel Function Connector Pin Definition

    3.17. Front Panel function connector Pin Definition Definition Definition DSR4# TxD5 for touch panel DTR4# RxD5 for touch panel RTS4# CTS4# +12V TxD4 RxD4 +3.3V +5V Standby USB D- USB D+ Power On# 3.18. RJ11(Cash Drawer) connector Pin Definition Definition C/D_OPEN# C/D Status ZK 75 Series User Manual...
  • Page 21 +12V/+24V ZK75 Series User Manua l...

  • Page 22: System Assembly & Disassembly

    4. System Assembly & Disassembly 4.1. HDD Note: Unscrew 4 screws and remove the base cover Fasten HDD on HDD bracket with 2 screws Install HDD with 2 screws 4.2. Memory Put the memory into socket ZK 75 Series User Manual...

  • Page 23: Msr

    4. Cover the Top cover (with Hinge hole) 4.5. 2 Display 1. Remove the Top cover 2. Plug 2 display (VFD) cable 3. Install 2 display with 2 screws 4. Cover the Top cover (with Hinge hole) ZK75 Series User Manua l...

  • Page 24: Wi-Fi

    4.6. Wi-Fi 1. Put the WI-FI module into the Mini-PCIE Slot. 2. Connect 2 antennas on Wi-Fi module.( Notice: The antenna in black should be connected on position 1 of WI-FI module, and antenna in gray should be connected on position 2 of WI-FI module) 3.

  • Page 25: Device Driver Installation

    5. Device Driver Installation 5.1. Resistive Type Touch Panel and P-CAP 1. Click “Next”. 2. Click “Next”. 3. Click “Next”. 4. Select “None”, Click “Next”. 5. Click “OK”. 6. Select “Support Multi-Monitor System”, Click “Next”. 7. Click “Next”. ZK75 Series User Manua l...
  • Page 26 8. Click “Next”. 9. Click “Next”. 10. Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next”. 11. Would you do 4 point calibration now? Click “Yes”. 12. Do 4 points aligrment to match display. 13. Calibration utility. ZK 75 Series User Manual...

  • Page 27: Magswipe Card Reader Configuration Utility

    Software folder of CD. 3. Follow the wizard to complete the installation. Launching Program  Below steps guide you how to load the Utility program. From Start/Programs, click MagSwipe folder Click MagSwipe Configuration Utility to launch the program. ZK75 Series User Manua l...
  • Page 28 Configuration  1. Select Reader Interface The reader to be configured should be connected. Select the corresponding connected reader interface and click the Continue button After the interface selection is made, click the Continue button. The utility attempts to communicate with the connected reader.
  • Page 29 When all the setting parameters are selected, use the "Send To MSR... " button to send configuration data to the reader device. When the reader has received the data correctly, the settings take effect immediately. ZK75 Series User Manua l...
  • Page 30 Load From File The configuration data can be loaded into the configuration utility from a file that has been previously saved. Select this command, start a "File Open" dialog, which allows selection of the file. Save To File The configuration data can be saved as a file and being used later to configure other readers. When saving a configuration the "File Save"...
  • Page 31 With the bi-directional operation, the user can swipe the card in both swipe directions and the data encoded on the magnetic stripe will be output. In the single swipe direction selections, the card can only be ZK75 Series User Manua l...
  • Page 32 swiped in one specified direction to read the card. The default setting will decoding card data with the card swiped in either the forward or the reverse direction. "Raw Data" is an output of the decoded magnetic stripe data in hexadecimal format (no ASCII character conversion is performed).
  • Page 33 The magnetic stripe End Sentinel character can be added to the end of a magnetic stripe data string. This character simulates the end of character for track1, track2 or track3. This default is '?' Track Settings  ZK75 Series User Manua l...
  • Page 34 Track Selection There are three tracks of info rmation possible on a magnetic stripe. This option selects the tracks that will be decoded (read). Note that the magnetic stripe reader must have the hardware configuration (read head and circuits) for reading the specified tracks.
  • Page 35 The function key output be used to support the special key to delay card data output. USB HID KB Polling Interview The user can input the number between 1 to 255 for the delay of output. Check Current Reader Setting ZK75 Series User Manua l...

  • Page 36: Rfid

    After you connect the device, the current reader configuration can be displayed by selecting this button. The configuration data of the connected reader will be displayed like in the example: 5.3. RFID 5.3.1. Install driver 1. Check the Device Manager to verify the status of RFID reader. Computer Management ->...
  • Page 37 3. Select “Browse my computer for driver software. ” 4. Click Browse to select file called HFF320U \Driver\FTD\x64,and click Next. 5. Install the driver ZK75 Series User Manua l...

  • Page 38: Install Framework 4.0

    6. Install complete and then click “close” 7. Restart the computer 5.3.2. Install framework 4.0 1. Double-click to install. ZK 75 Series User Manual...

  • Page 39: Quick Start With Demonstration Software

    1. The demonstration software is “MP Studio.exe” provided in the folder “Demo Software”. There is no software setup required; just double click the”MP Studio.exe”. The demonstration software can run either from CD or a copy on hard drive. The GUI of software is shown in below picture and ready to use. ZK75 Series User Manua l...

  • Page 40: Configuration Utility Of I-Button Reader Installation

    Below steps guide you how to install the Utility program.  Insert the setup CD Run the ZKTeco IButton Utility.exe setup file that is located in the Software folder of CD   Follow the wizard to complete the installation.
  • Page 41 ZK75 Series User Manua l...
  • Page 42 2. To execute “IButton_V1.0.exe” for setup communication between software and IButton module. The utility program will detect the connected reader. If detected, all the input text boxes will be enabled. If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected.

  • Page 43: Vfd

    8-Bit CRC + 48-Bit ID + 8-Bit FC DEMO SETUP&OUTPUT OUTPUT DATA : a!ab00000003bdfa01? b!ab00000003bdfa01? 5.5. VFD 1. Power on VFD and waiting test page of EEPROM test, Baud rate and Command page. Set up the customer display by " VFD set.exe” ZK75 Series User Manua l...
  • Page 44 2. Setup VFDset.exe software. ZK 75 Series User Manual...
  • Page 45 Please then follow the steps as shown in the above figure, the baud rate will show on states page of VFD module (Note: You may check it when power on VFD module), then click “Open COM” button. 7. “Get Setting from VFD” button to get all the settings from ZKTeco and it’ll refresh the “VFDset.exe” software.
  • Page 46 9. Click “Set All Default” button to show default setting, the Default table is Character Type ：USA Command Type ：EPSON/EURPOPE Baud Rate Setting ：9600/n/8/1 Pass-through Mode ：None Welcome msg line1 ：*** VFD DISPLAY *** Welcome msg line2 ：**HAVE A NICE DAY AND THANK YOU 7.
  • Page 47 To save user’s setting in file; for example, below picture to save file name as “GOODLUCK” file set for Welcome Message. 10. Click “Load” button After saving, you must restart the utility here. Then load your setting rename-GOOD LUCK.vfd. ZK75 Series User Manua l...

  • Page 48: Bios/Utility Setup

    6. BIOS/Utility setup Press <DEL > key to enter SETUP CMOS UTILITY when system boot up. 1. Please press <DEL > key tenderly and slowly. 2. Please press <ENTER >over SCU Button key. 3. Press <F9> to view the system information ZK 75 Series User Manual...

  • Page 49: Advanced

    6.1 Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: 6.1.1. Boot Configuration Use the Boot Configuration menu to select power-on state for Num lock. ZK75 Series User Manua l...

  • Page 50: Audio Configuration

    6.1.2. Audio Configuration Use the Audio Configuration menu to read Audio configuration information and configure the Audio settings 6.1.3. Video Configuration Use the Video Configuration menu to read Video configuration information and configure the Video settings ZK 75 Series User Manual...

  • Page 51: Sata Configuration

    6.1.4. SATA Configuration Use the SATA Configuration menu to read SATA configuration information and configure the SATA settings 6.2. Security Use the Security menu to install or change the password ZK75 Series User Manua l...

  • Page 52: Power

    6.3. Power Use the Power menu to install or change the power settings. AC Loss Auto Restart: Enable or disable system power on automatically after AC power restored Wake on LAN: Enable or disable system wake by onboard LAN chip COM Voltage: This item allows you to select off, 5V or 12V powered COM LVDS Firmware update: This item allows you to enable or disable LVDS Firmware update 6.4.

  • Page 53: Exit

    6.5. Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values or to save configuration changes. ZK75 Series User Manua l...

  • Page 54: Lcd Surface Cleaning

    7. LCD Surface Cleaning 1. How to clean the LCD surface properly?  Do not spray any liquids on the LCD screen directly, and do not use paper towels, this can cause the LCD screen to become scratched. Always apply the solution to your cloth first, not directly to the parts you are cleaning. You want to ...
  • Page 55 European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. ZK75 Series User Manua l...
  • Page 56 Longgang District, Shenzhen China 518129 Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com ZK 75 Series User Manual © Copyright 2017. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for.
