Introduction
IO Connectivity – 6300ESB:
- 4 Hi-Speed USB2.0 ports
- AC'97 Codec
- 2 Serial ATA ports
- PCI-X, PCI slots
1.3.2

Ultra ATA/66/100

The 6300ESB provides two channel Ultra ATA/66/100 Bus Master IDE
controller, that support Ultra ATA/66/100 protocols, perfect for such
demanding applications as real-time video, multimedia, and high
performance operating system. A new IDE cable is required for Ultra
ATA/66/100. This cable is an 80-conductor cable; however the connectors
are, of course, backwards compatible with ATA/33.
1.3.3 Hardware Monitoring
Hardware monitoring allows you to monitor various aspects of your
systems operations and status. The features include CPU temperature,
voltage and RPM of fan.

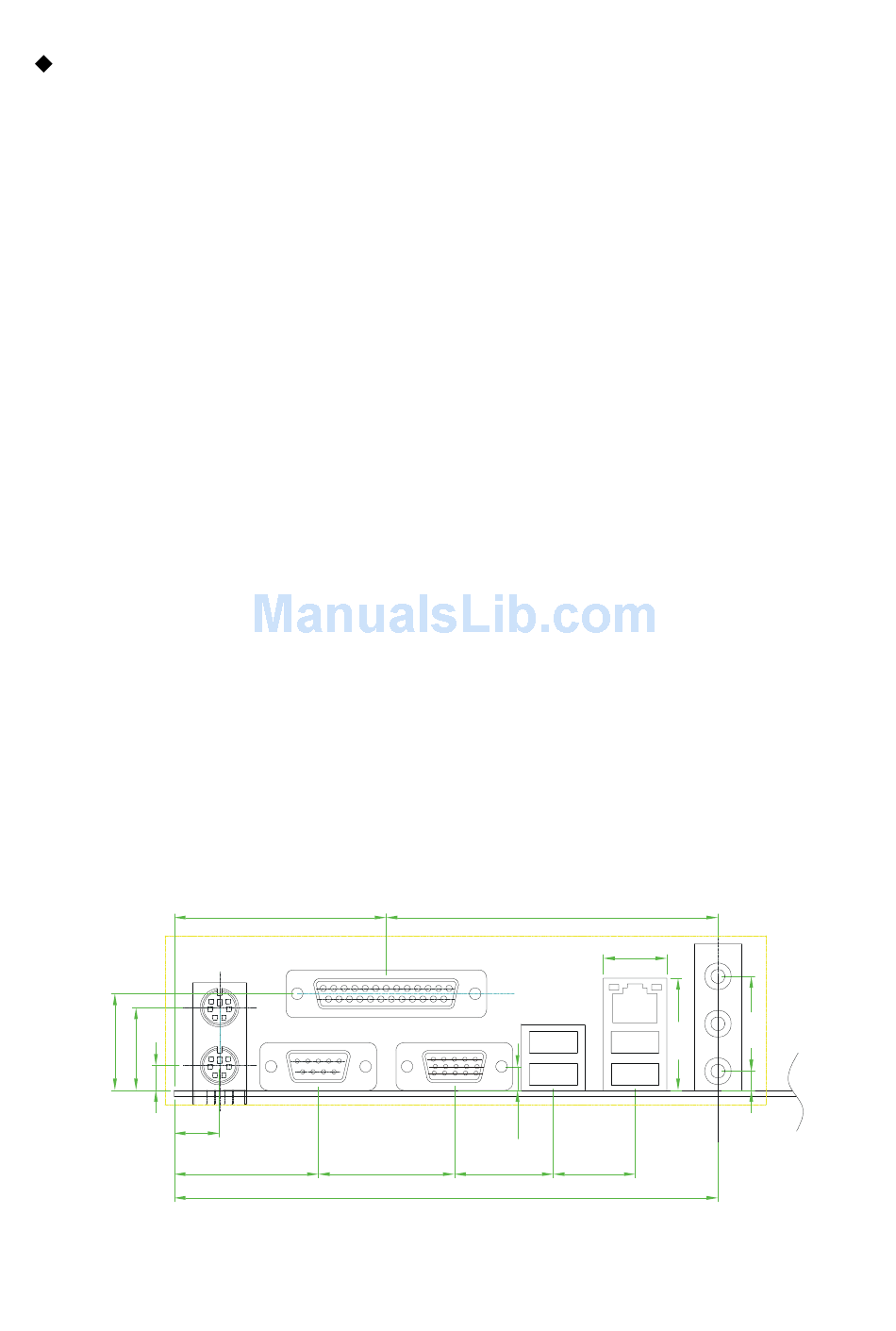

1.3.4 I/O Shield Connector
The board is equipped with an I/O back panel. Please use the
appropriate I/O shield (figure 1).
25.42
21.75
6.50
11.96
56.05
38.10 35.97
Figure 1: I/O back panel layout
87.71
6.22
26.13 21.64
143.76
4
16.80
25.00
29.50
5.00
