Summary of Contents for Avermedia AVerDiGi EB1304 MOB
Page 1

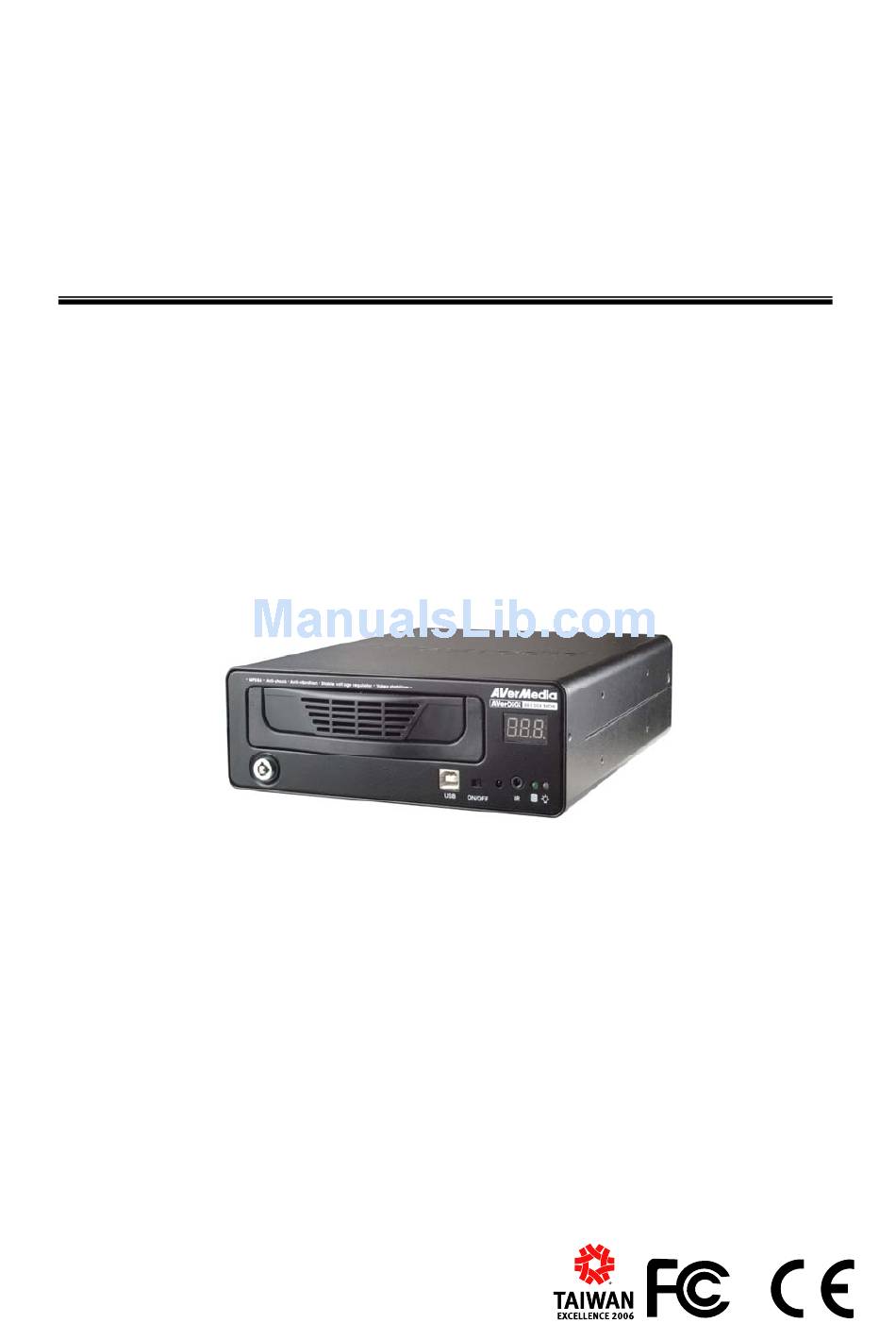

® AVerMedia AVerDiGi EB1304 MOB Mobile Security DVR System User Manual...
Page 2
The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
Page 3
WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID UNAUTHORIZED PRODUCT MODIFICATION.
Table of Contents Chapter 1 Introduction ...............1 Package Content..................1 Features and Specifications ...............2 Front Panel....................3 Back Panel ....................4 Setting Up the DVR Unit................5 1.5.1 Installing the Hard Disk ................5 1.5.2 Mounting the DVR Unit ................6 1.5.3 Connecting the Sensor/Relay device.............7 Familiarizing the Remote Control Buttons ..........
Chapter 1 Introduction AVerDiGi EB1304 MOB is a 4-channel stand-alone DVR unit for mobile solution that can be installed on the vehicle for security monitoring. It provides real-time monitoring and digital recording of surveillance video. Up to four video cameras and four sensor devices can be hooked up to this DVR unit.
(3) Quick Installation Guide (4) Software CD (User Manual included) (5) Z-bracket x 2 (including 4 screws) (6) Removable hard disk drawer accessories (with spare screws) (7) Power cable (8) Camera Power cable (9) Extended IR Sensor cable (10) USB cable Features and Specifications Non-PC stand-alone security digital video recorder 4 composite video inputs and 1 composite output...
Front Panel (2) (3) (4) (5) (6) Name Function (1) Removable HDD Lock/unlock the hard disk rack Keylock (2) USB 2.0 Port Connect to PC for video backup or playback (3) Power Switch Power on / off the DVR unit (4) IR Sensor Receive signal from the remote control to operate the unit (5) IR Sensor Port...
Back Panel (10) (11) (12) Name Function Audio In Input the audio signal from a microphone or audio output device. The audio is embedded with channel 1 The audio input device needs to be powered by external power. Audio Out Output the audio signal to a speaker The audio output device needs to be powered by external power.
7. You may now connect all the cables. When the power is connected, the Power LED light turns on - For hard disk spec, please referring to http://www.avermedia.com/nvd/hardware-recom_eb_c.asp The DVR unit support hard disk hot swap. Therefore, user can swap the hard disk without shutdown the DVR unit.
AVerMedia does not guarantee or provide warranties, explicitly, implied or statutory with respect to the reliability of the hard disk function or its compatibility. In no event AVerMedia shall be liable for damages, with respect to any business interruption of clients, lost profits, loss of programs or other data on your information handling system or otherwise.
1.5.2.3 Connecting Devices The DVR unit can connect up to 4 video cameras, 4 sensor devices, 1 alarm device and output video to a TV or CRT/LCD monitor. Follow the illustration below to make the connection: Each time you change the video display output, the power must be turned off and on to reset the DVR unit.
Page 12
1.5.3.1 I/O Card Sensor and Relay pinhole allocation: The signal from the sensor (i.e., infrared sensors, smoke detectors, proximity sensors, door sensors, etc.) is being transmitted to the unit and this triggers the system to respond and send signal to relay device (i.e., alarm, telephone etc). Pin # Definition Sensor 1 Ground signal...
Familiarizing the Remote Control Buttons Use the Remote control to operate the OSD menu on surveillance screen. (10) (11) (16) SELECT MENU (12) (15) LEFT RIGHT (13) ▲ FOCUS + ZOOM + DOWN ▼ FOCU S - ZOOM - SPEED - SPEED + (14) RM-H6...
Page 14
Button Function To play the video Reverse the video playback at the speed of 2x, 4x 8x or 16x To move the select to left Fast play the video playback at the speed of 2x, 4x 8x or 16x To move the selection to right Stop playing / Stop recording (11) To move the select to down...
Chapter 2 Operating the EB1304 MOB Using the EB1304 MOB for the First Time For the fist time using the DVR unit, suggest user connect with the monitor and setup DVR unit by OSD menu. Once the DVR unit has been set up, user can use LED panel with remote control to modify setting of DVR unit.
2.1.3 Set up the System Date and Time Before starting record video, adjust the date and time first. Press to call up the OSD menu and then use to go up and ▲ ▼ down and select Submenu. And then, press to confirm the selection.
2.3.1 To Playback Video SEARCH METHOD Press (play). TIME SEARCH EVENT LIST Use the ▲ ▼ buttons to go up and down and select TIME SEARCH or EVENT LIST. Then, press (play) to make a selection. TIME SEARCH (search by date and time): TIME SEARCH HARD DISK : MASTER...
Page 18
Listed below are the following recording conditions: A – Always Recording It records non-stop and automatically continue recording when interrupted. S – Sensor Recording It records when the sensor has activated. M – Motion Recording It records when any movement is detected B –...
Chapter 3 OSD Navigation Tree The follow figure is an OSD menu tree map. To call out the OSD menu, press button on the remote control. MAIN MENU RECORD SCHEDULE RECORD SCHEDULE CAMERA SELECT 00 : 00 - 01 : 00 ALWAYS REC 13 : 00 - 14 : 00 ALWAYS REC...
Page 20
buttons to move the selection to the left and right. The red frame turns yellow when users are making a selection. If the unit is currently recording the video, user may have to stop video recording to change the settings. OSD MENU Description MAIN MENU...
Page 21
OSD MENU Description Select from the available language JACK SETUP The DVR unit provides a jack port for external extend line for system LED indicator or IR receiver. It is convenient for user to easily indicate the DVR unit status or remote control the DVR unit when the DVR unit is installed at hide place.
Page 22
OSD MENU Description SUBMENU VIDEO ADJUSTMENT : PASSWORD CHANGE VIDEO ADJUSTMENT Select the camera number and set to adjust the video DATE 2006 / 12 / 11 brightness, contrast, hue, and saturation value. TIME 17 : 54 : 50 AUTO RECORD VIDEO ADJUSTMENT AUTO SCAN CAMERA...
Page 23
OSD MENU Description Display the current video system ─ PAL or NTSC TEMPERATURE SET: SUBMENU PASSWORD CHANGE VIDEO ADJUSTMENT Set the DVR unit temperature type and high/low 2006 / 12 / 11 DATE threshold limit. TIME 17 : 54 : 50 AUTO RECORD TEMPERATURE SET AUTO SCAN...
Page 24
OSD MENU Description HARD DRIVE SETUP OVERWRITE ENABLED : OVERWRITE ENABLED HDD SIZE 78MB Enable/disable replacing the earliest recorded file when HDD USED 232MB the hard disk space runs out. By default, the HDD HDD FORMAT overwrite setting is enabled. HDD FORMAT : For security purpose, you may have to enter the password to format hard disk.
Page 25
OSD MENU Description SENSOR SETUP SENSOR REC TIME : SENSOR REC TIME 010 SEC ALARM OUT TIME 010 SEC Set the amount of time (in second) to record when the NOT INSTALLED CHANNEL - 1 sensor has been triggered. CHANNEL - 2 NOT INSTALLED CHANNEL - 3 NOT INSTALLED...
Chapter 4 Setup DVR in LED Mode Besides OSD menu mode, user can setup DVR system in LED mode with remote control when the DVR unit couldn’t connect the surveillance monitor. To setup the DVR system, refer to the following function description. Press button to enter or exit setup function ▲...
Page 27
Symbol of Title Function Symbol of Selection (D1 mode) [NOTE] Record mode The recording function must be stopped when set up this function. (CIF mode) Record Framerate(PAL) Record Framerate(NTSC)
Page 28
Symbol of Title Function Symbol of Selection (Best) (High) (Good) [NOTE] Video Quality The recording function must be stopped when set up this function (Medium) (Normal) (Low) Hard Disk Setup...
Page 29
Symbol of Title Function Symbol of Selection (Yes) Hard Disk Overwrite (No) [NOTE] 1. The recording function must (Password) Hard Disk Format/Password be stopped when set up this Check function When display, user can start to enter the (To enter password) password by using the number key on the remote control.
Page 30
Symbol of Title Function Symbol of Selection (Enter 1 digit) From 1st digit to 6th digit [NOTE] (Enter 2 digit) When user enter each digit of password, the LED panel will display each digit of indicating (Enter 3 digit) as right column shown. Using Password Check the number key buttons of remote control to enter the...
Page 31
Symbol of Title Function Symbol of Selection (IR) Jack Setup (LED) Hard disk plug out Hard disk is full Hard disk shutdown (higher LED display current Warning indication than limited temperature) temperature and flash Hard disk stop (lower than LED display current limited temperature) temperature and flash Warning indication...
LED Panel Message Definition While the DVR system is recording, LED panel will display general information of the system. When LED panel shows Dot point at right of display information and falshing means the system is recording. SPEED + Press to display system temperature.
Chapter 5 Using USB Playback Console Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function (Must support DirectDraw) Audio card or built-in Speaker 1 available USB2.0 port Installing the USB Playback Console To install the Playback Console Application: Place Installation CD into the CD-ROM drive.
Running the USB Playback Console To run the application, click the USB Playback Console icon on the PC desktop. (10) (11) (17) (12) (13) (16) (15) (14) Name Function Video playback screen To select the video file for playing. The playback application supports *.dvr and *.avf file type.
Name Function Full screen Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard. When you switch to full screen in multiple-channel mode, Left click to toggle to only display one of the video in the multiple-channel mode or all.
Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to end the cut. Then, click Segment to set the end mark. To cancel segmentation, click Segment button again. Click Output button to save the wanted portion. In the Save As dialog box, locate on where user wants to save the file, type the filename, and select the video format.
To Backup Recorded Video File Click HDD backup button on the USB Playback Console interface. OSD setup menu will appear on the surveillance monitor. Press Select (Yes) to accept HDD Backup application to get the recorded video file from the hard disk. And, EB1304 MOB will stop recording automatically.
Page 38
Name Function All recorded video events list No.: the list order number Record: the record type(see also Chapter 2.3.1) Begin Time: the beginning of record time End Time: the end of record time Display first frame of each recorded video channels from 4 selected channels.
Chapter 6 Using ImageVerification Image Verification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification To run the ImageVerification application, click the Watermark button on USB Playback Console main interface.
Chapter 7 Using i-Enhance The bundled i-Enhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot. You can also save the setting and apply it on other files.
Name Function (12) Noise Reduce Adjust the softness and repair the damaged colours. (13) Sharpness Improve the overall image by enhancing edges. This gives the image more depth. (14) Effects Gray Scale: convert the image into black and white (monochrome). Normalize: adjust the brightness intensity.
Any other cause which does not relate to a product defect. 3. Cartons, cases, batteries, cabinets, tapes, or accessories used with product. 4. AVerMedia does not warrant that this product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose.
