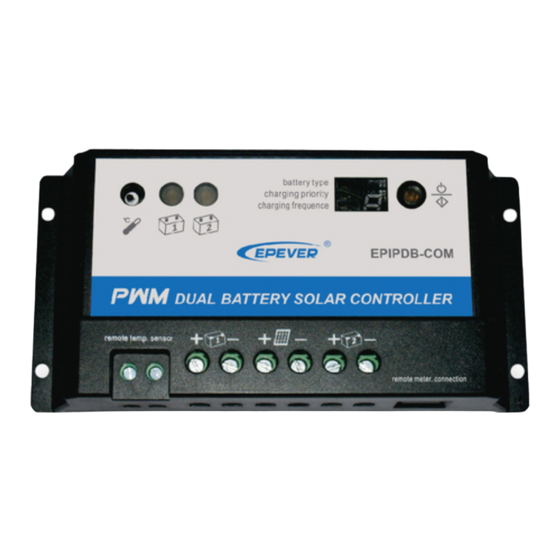

INSTRUCTION MANUAL
RATINGS (12V or 12/24V auto work)
EPIPDB-COM,
12V or 12/24V auto-work, 10Amp
EPIPDB-COM
12V or 12/24V auto-work, 20Amp
NOTES: For use with solar panels only
TECHNICAL INFORMATION
Setpoint
Regulation voltage
Boost voltage
Float voltage
Maximum solar voltage
Battery voltage range
Boost time
Self-consumption
Meterbus connection
Temp. compensation
Terminals
Temperature
Note: all the data is for 12V, for 24V, please use 2x.

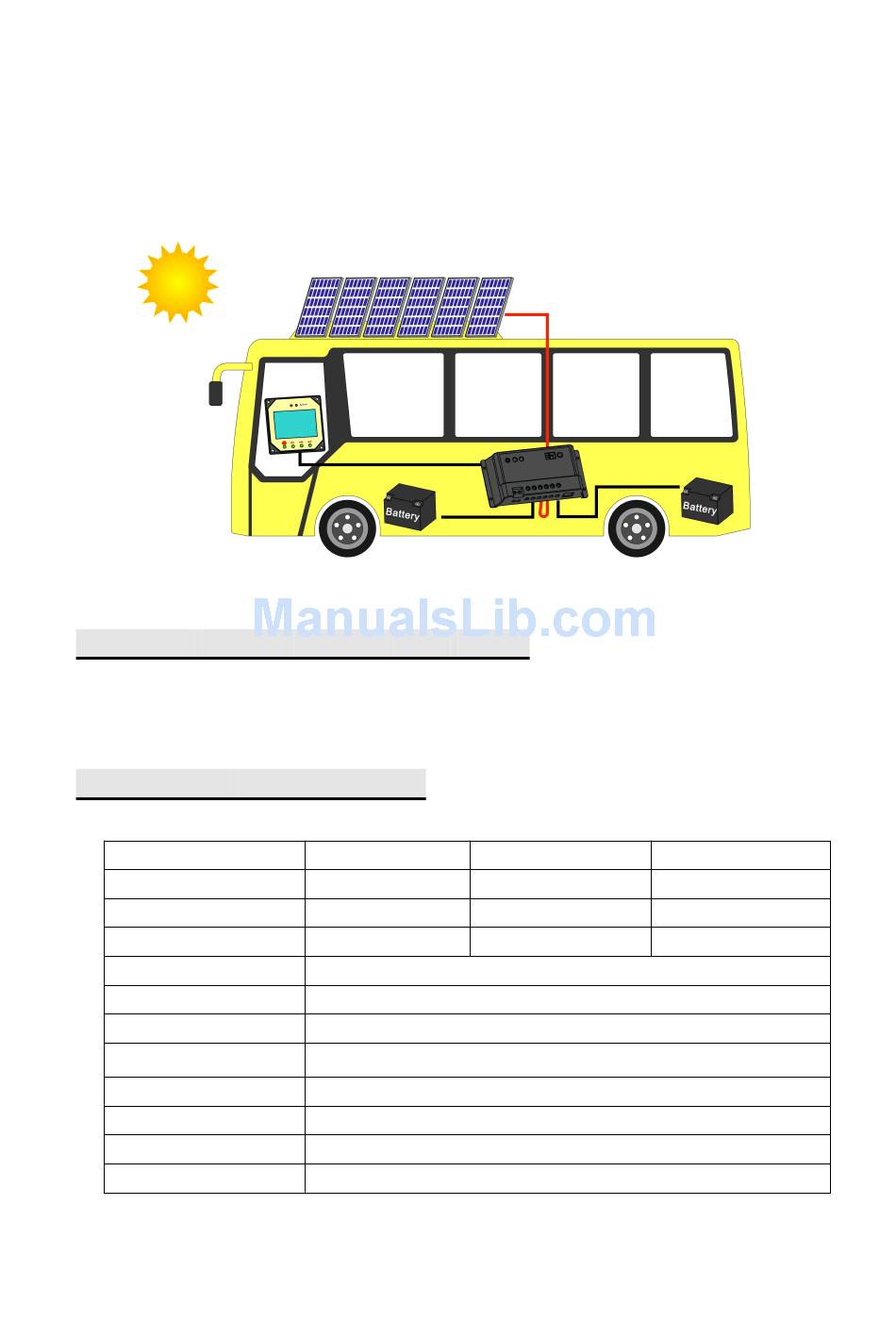

duo-battery charging solar controller,
----------
Sealed battery
Flooded battery
14.2V
14.4V
14.4V
14.6V
13.7V
13.7V
30V(or 55V)
1-15V
30 minutes
4mA at night, 10mA at charging
8-pin RJ-45
-30mV/12V
4mm2
-35℃ to +55℃
For RVs,Caravans,and boats
EPIPDB-COM series
----------
Gel battery
14.6V
14.8V
13.7V
Advertisement
Table of Contents
Related Manuals for Epsolar EPIPDB-COM series
Summary of Contents for Epsolar EPIPDB-COM series
- Page 1 INSTRUCTION MANUAL duo-battery charging solar controller, ---------- For RVs,Caravans,and boats EPIPDB-COM series ---------- RATINGS (12V or 12/24V auto work) EPIPDB-COM, 12V or 12/24V auto-work, 10Amp EPIPDB-COM 12V or 12/24V auto-work, 20Amp NOTES: For use with solar panels only TECHNICAL INFORMATION...
- Page 2 Major feature of duo-battery controller: (Note: connect the components as the 1-6) Connect with the battery #1 Connect with the battery #2 Connect with the PV. Remote temp. sensor A connection point for RTS(option) to remotely monitor battery temperature. Local temp. sensor Measures ambient temperature.
- Page 3 SETTING MODE: Battery type mode Charging priority Charging frequency Three leds flashing, each LED express different specifications, choose the LED first according to the following information, and then press the switch for 5 seconds until the number flashing, choose one number as you need, and leave it and the number you set will be saved.
- Page 4 TROUBLESHOOTING: 1. LED blinking, short circuit, check the PV and battery, and make sure that they are in correct connection. 2. LED slowly flashing, fully charged. 3. LED ON, on charging 4. LED frequent flashing, no charging, and there is battery 5.
- Page 5 REMOTE METER DISPLAY: REMOTE METER OPERATION INSTRUCTION: the key(from left to right) is: K1-K4, or Next , Left , Right , Set The meter display as following order: Solar panel, battery 1, battery 2, other data as four team data. Use K2 or K3 to check the data between the teams.
- Page 6 PICTURE 2. PV solar Information Next Battery 1 Information Next Battery 2 Information Next Temperature & Time Information Next PICTURE 3 K4 for setting Temperature Units (from degree to Fahrenheit K1/K4 Black Light Timer（default: 30 seconds） K1/K4 Black Light brilliance （default: 30 seconds） K1/K4 Data repeat option（default: auto）...
- Page 7 K3+K4 System check PICTURE 4 display as following every 0.5 seconds Out of system check OTHER INSTRUCTION: Specifications: Rated voltage: 12V, suggest min voltage: 8.0V. Low backlight on: <23mA, no backlight and LED. Strong backlight on: <20mA Backlight and LED indicator off: <17mA Working temperature: -15℃...
