Primera Signature, Inscripta rinter Autoloader Operator's Manual page 10

10
2
1

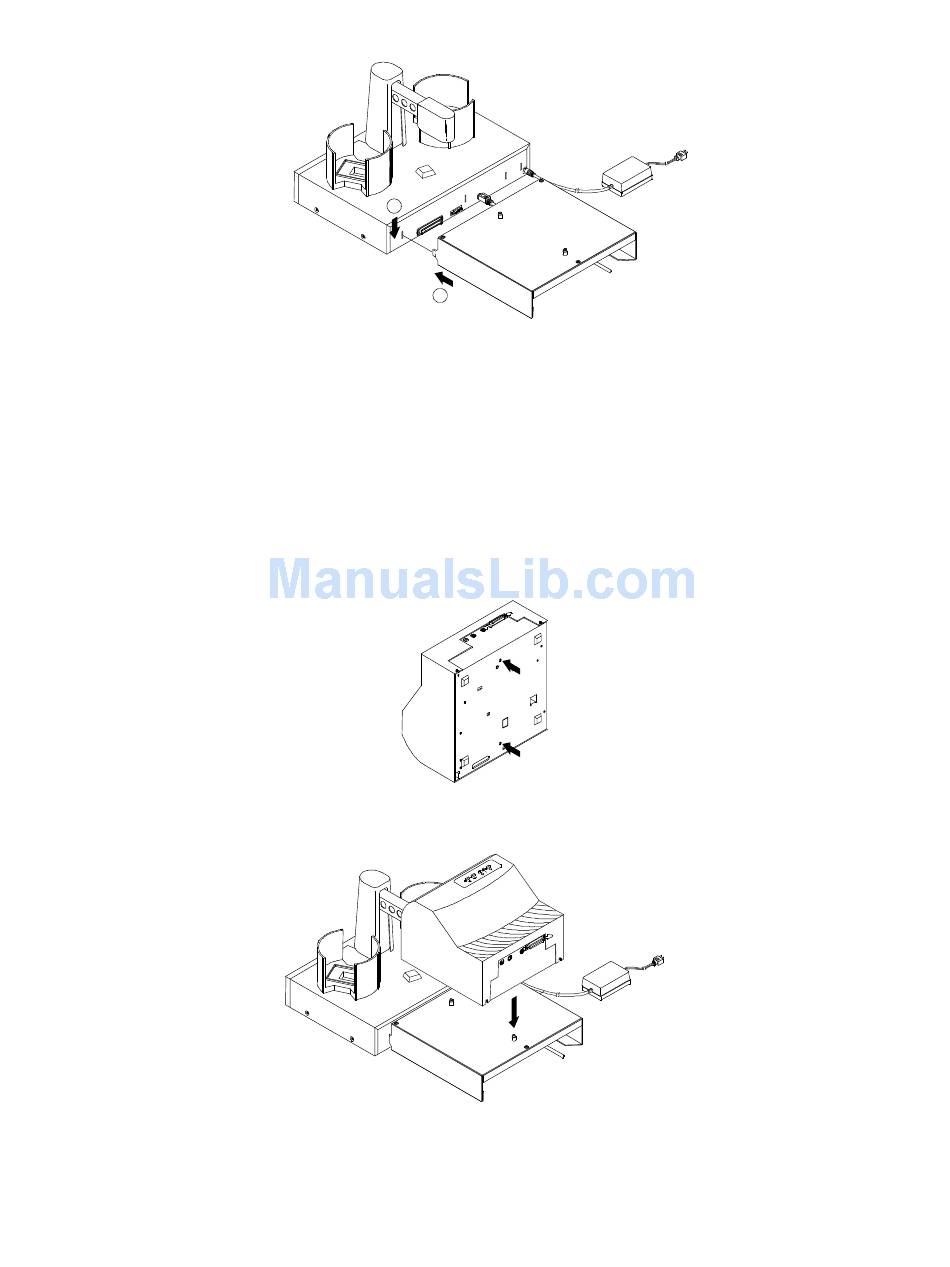

Figure 6: Attaching the Printer Stand
Make sure that the Printer Control Cable is routed neatly out the back of the Printer Stand so that it
can be connected to your printer.
If you are using the Inscripta Thermal CD Printer, you will also need to install a Tray Support
Bracket to the top cabinet of the Conductor. Follow the instructions packed with the Thermal Printer
Printer Stand for installation of this bracket.
5. Place the printer on top of the Printer Stand, making sure that the silver locating pins are
inserted into the locating holes on the bottom of the printer.
Figure 7: Locating Holes on Bottom of Printer
Figure 8: Mounting Printer Onto Stand
