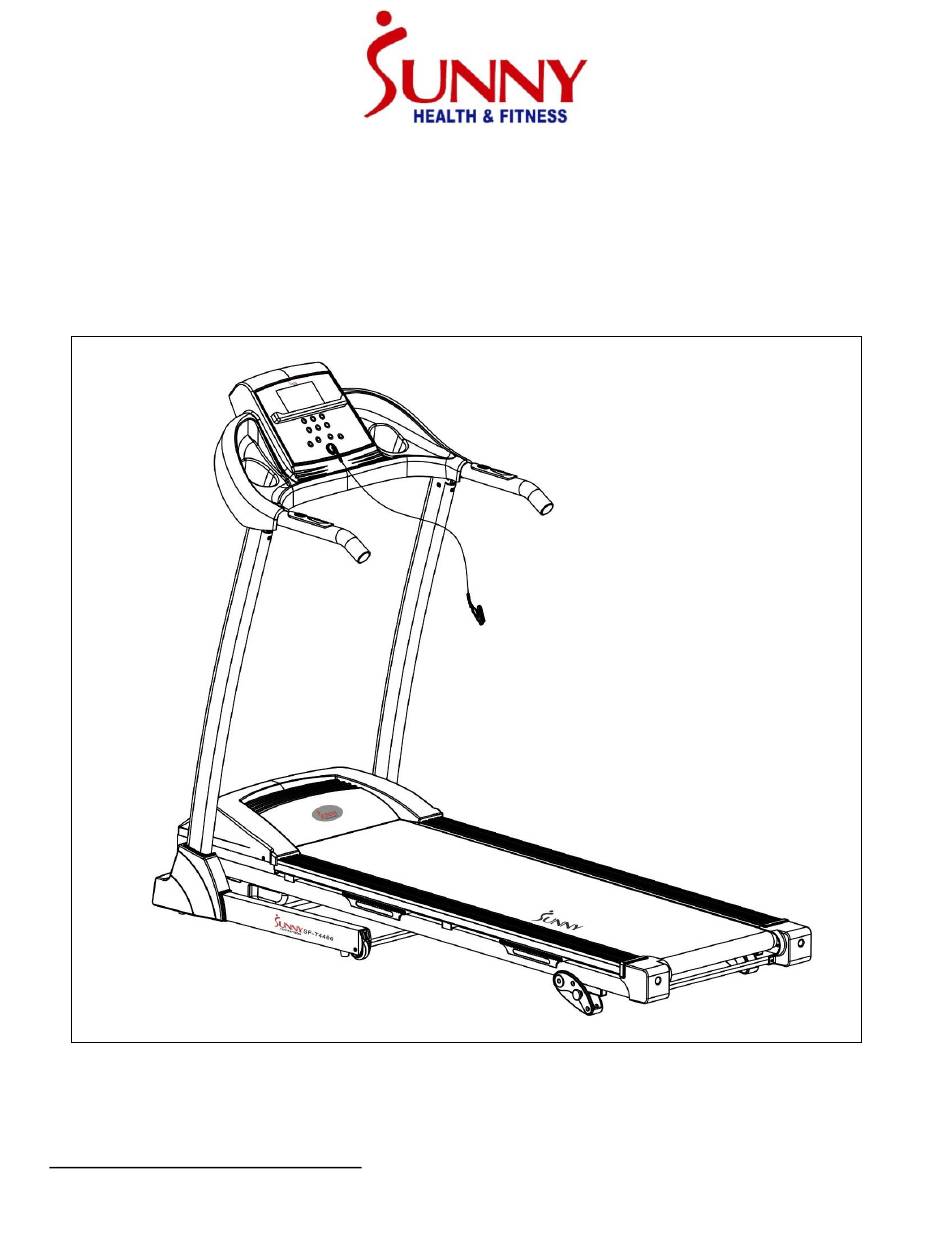

TREADMILL
SF-T4400
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading

Related Manuals for Sunny Health & Fitness SF-T4400

Summary of Contents for Sunny Health & Fitness SF-T4400

  • Page 1 TREADMILL SF-T4400 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2 IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –...
  • Page 3 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
  • Page 4 IMPORTANT OPERATING INSTRUCTION 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4.
  • Page 5 EXPLODED DIAGRAM...
  • Page 6 PARTS LIST Description Specification Description Specification Base Frame Allen Socket Bolt M8*45 Main Frame Allen Socket Screw M10*35 Computer Bracket Allen Socket Bolt M6*55 Left Upright Tube Right Upright Tube Allen Screw M6*35 Motor Bracket Self-tapping Screw ST4.2*20 Fixing Pin Screw M5*8 Turning Bushing...
  • Page 7 HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...

  • Page 8: Base Frame (

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Open the carton and remove contents. Place the Main Frame (No. 2) on level ground, ensure that you have a work area that is clean and has adequate space.

  • Page 9: Main Frame (

    We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 4: Support the Upright Tubes (No. 4 & No. 5) with your hands to prevent them from falling down.

  • Page 10: Right Upright Tube 1

    We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 6: Attach the Left & Right Upright Tube Covers (No. 33 & No. 34) to the Base Frame (No.
  • Page 11 MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 20) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.
  • Page 12 LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. 70) and Running Belt (No. 20) is essential as the friction between the two affects the life span and function of the treadmill. It is suggested that the Running Board (No.

  • Page 13: Air Pressure Cylinder 1

    FOLDING INSTRUCTIONS FOLDING: Place your hand at position “A” and lift up on the Main Frame (No. 2) until the Air Pressure Cylinder (No. 13) “B” locks into the tube. When Pressure Cylinder (No. 13) successfully locks into the tube, you will hear a clicking sound.
  • Page 14 HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “A” to support the top end of the treadmill. Next, place one foot at position “B”...
  • Page 15 ADJUSTING THE INCLINE ATTENTION: For your safety and convenience, always fold the treadmill (as shown below) before attempting to adjust the incline. There are three holes located on the Adjustable Foot Pad (No. 29). To adjust the level of incline, remove the 2 Fixing Pins (No. 7) from the left and right side. Align the holes of the Adjustable Foot Pad (No.
  • Page 16 IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 17: Running Belt 1

    THE DISPLAY CONSOLE QUICK START: 1. Insert the magnet end of the safety key into the computer console. 2. Press the START button, and the system will automatically display a 3 second countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.5 MPH. 3.
  • Page 18 WINDOW DISPLAY SPEED: Displays the current speed (The speed range on this treadmill is 0.5-9 MPH). When setting PROGRAMS, the speed is programmed in intervals; PROGRAMS are from P1-P9. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop smoothly and display “End”...

  • Page 19: Console 1

    FUNCTION KEYS: PROGRAM: Press the PROGRAM button to set your desired interval setting. Programs are displayed as P1-P9 and the various intervals are shown on the console of the treadmill. MODE: Press this button to select a MODE. Pressing once will enter H1, the TIME countdown mode starting from 10:00 MINS, H2 is the DISTANCE Countdown Mode starting from 1 MILE, and H3 is the CALORIES countdown mode which starts from 50 KCAL.
  • Page 20 BODY MASS INDEX: Press the PROGRAM button until the window displays FAT to access Body Mass Index. Press MODE to enter F-1, F-2, F-3, F-4, F-5. F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Mass Index Press SPEED +/- BUTTONS to set F1-F4 (refer to the chart below). Once you have finished setting F1-F4, press MODE.
  • Page 21 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. 66) from the computer console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the computer will show “- - -” and the treadmill will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
  • Page 22 EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.

  • Page 23: Control Board

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key not inserted. Insert Safety Key. Not calibrated correctly. Re-calibrate speed setting. Running speed inaccurate Speed set in the wrong Change setting to proper Units of measurement.
