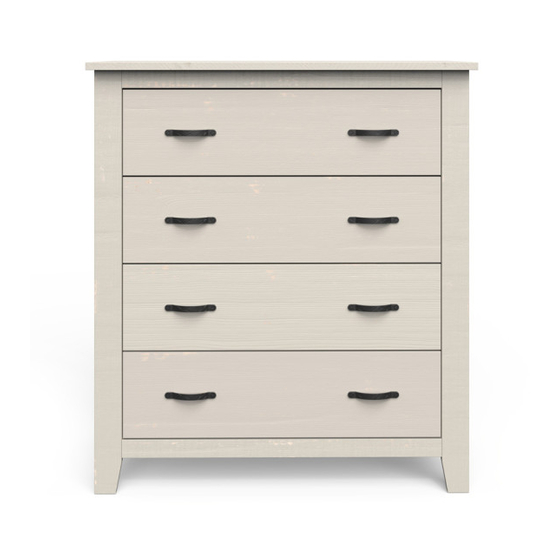

Dalton - 4 Drawer Chest
Assembly Instructions -
Dimensions
Width - 90cm
Depth - 40cm
Height - 87cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
246/6422
257/8767
226/3113
MADE IN
BRITAIN
Issue 2 - 23/06/14
Advertisement
Related Manuals for Argos Dalton 246/6422
Summary of Contents for Argos Dalton 246/6422
- Page 1 Dalton - 4 Drawer Chest Assembly Instructions - 246/6422 Please keep for future reference 257/8767 226/3113 Dimensions Width - 90cm Depth - 40cm MADE IN Height - 87cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 23/06/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 36kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left End Right End Left Internal Right Internal (DF696) (DF697) (851 x 365mm) (851 x 365mm) (DF703)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 4 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Runners must be Fit runners to the pushed up against the drawer front drawers Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the small drawer front...
- Page 8 Assembly Instructions Step 10 Prepare the left end Tap 2 wooden dowels into the left end Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. 10mm Insert 3 large locking nuts into the left end Note: The arrow on the...
- Page 9 Assembly Instructions Step 12 Fit the left end to a Note: Dowels palister this end Push the left end onto a pallister Use a screwdriver to tighten the 3 large locking nuts fitted to the left end Note: Turn the large locking nuts as far as they will go - more than...
- Page 10 Assembly Instructions Step 14 Prepare the left internal end Tap 2 wooden dowels . into the left internal end Insert 5 large locking nuts into the left internal end Step 15 Prepare the right internal end Tap 2 wooden dowels . into the right internal end Insert 5 large locking nuts...
- Page 11 Assembly Instructions Step 17 Note: Dowels this end Fit the right internal end to the palister Push the right internal onto the pallister fitted to the the right Use a screwdriver to tighten the 3 large locking nuts fitted to the right internal end Step 18 Prepare the plinth and...
- Page 12 Assembly Instructions Step 19 Fit the plinth to the right end Push the plinth onto the right end Use a screwdriver to tighten the large locking fitted to the plinth Note: Support the plinth until the left end has been fitted. Step 20 Fit the 2 rails to the right end...
- Page 13 Assembly Instructions Step 21 Fit the left end Push the left end onto the plinth rails Use a screwdriver to tighten the 3 large locking nuts fitted to the plinth and the rails Step 22 Secure the rails to the internal ends Fix the 2 rails to the...
- Page 14 Assembly Instructions Step 24 Fit the top Push the top onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the 2 internal ends Step 25 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by...
- Page 15 Assembly Instructions Step 26 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 27 Fit the runners screw screw...
- Page 16 Assembly is complete Internal Drawer panel If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3039...
