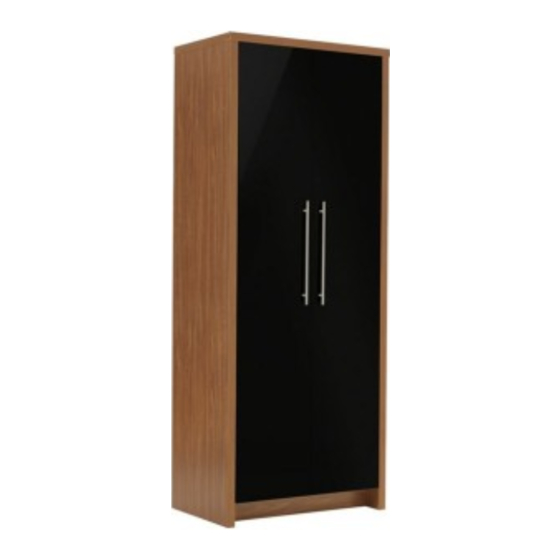

Camden - 2 Door Tall Robe
Assembly Instructions -
Dimensions
Width - 80cm
Depth - 49.5cm
Height - 200.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
244/3012
227/6117
MADE IN
BRITAIN
Issue 2 - 25/03/14
Advertisement
Related Manuals for Argos Camden 244/3012
Summary of Contents for Argos Camden 244/3012
- Page 1 Camden - 2 Door Tall Robe Assembly Instructions - 244/3012 Please keep for future reference 227/6117 Dimensions Width - 80cm Depth - 49.5cm MADE IN Height - 200.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 25/03/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 47kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (DF3A1) (796 x 492mm) Horizontal (DF4A1) (722 x 473mm) Left Side Right Side Plinth (DF1A1)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side To fit the rail holder . , screw through the top hole with screw and into the shallow mark hole drilled in the left side...
- Page 6 Assembly Instructions Step 2 Prepare the right side To fit the rail holder . , screw through the top hole with screw and into the shallow mark hole drilled in the right side . Make sure that it is fitted straight, in line with the panel edges Finished and then fit another...
- Page 7 Assembly Instructions Step 3 Prepare the 2 horizontals Insert 4 large locking nuts into each of the 2 horizontals Note: The arrow on the locking nut must point towards the hole in the Finished edge of the panel. front edge 10mm Tap 2 wooden dowels into each of the 2...
- Page 8 Assembly Instructions Step 5 Prepare the top Screw 4 small metal dowels into the holes on the top Finished Note: Tighten metal front edge dowels up fully against the panel. Step 6 Fit the top Attach the top onto the assembly. Note: You will need to slide the 2 small metal dowels...
- Page 9 Assembly Instructions Step 8 Fit the plinth and the back rail Push the plinth the back rail onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the plinth back rail Note: Support the end of the plinth and back rail until the...
- Page 10 Assembly Instructions Step 10 The measurement from top corner X to bottom corner X must be Fit the back panel equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
- Page 11 Assembly Instructions Step 11 Fit the hanging rail Push the hanging rail into the rail holders fitted to the side panels. Step 12 Prepare the 2 doors Push fit 4 hinges into each of the doors Secure each hinge with 2 screws Note: Before securing with the screws, make...
- Page 12 Assembly Instructions Step 13 IMPORTANT Carefully choose which 2 holes Drill 2 handle holes in each of the doors you need to drill in each door Important: Please follow these instructions carefully. ONLY drill these Lay the 2 doors 2 holes in 1 door down onto a smooth surface.
- Page 13 Assembly Instructions Step 14 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 14 Assembly Instructions Step 15 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 15 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 16 ALR2988...
