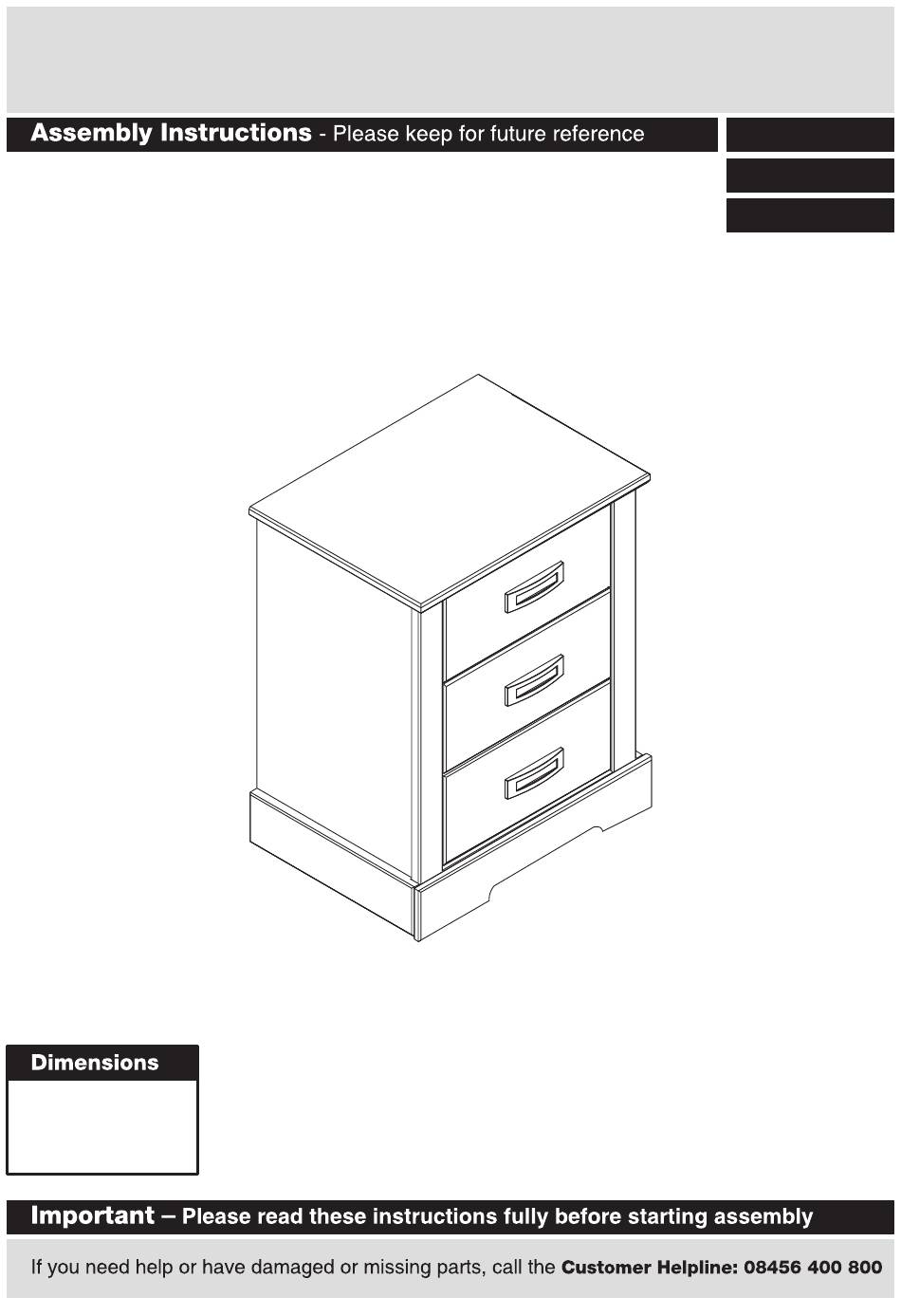

- Page 1 Mendoza - 3 Drawer Bedside 228/9953 244/8316 258/3044 Width - 47.6cm Depth - 35.4cm Height - 60.1cm Issue 1 - 12/09/12...
- Page 3 2 Left side panel 1 Top panel (57.6 x 33.8cm) (47.6 x 35.4cm) 4 Bottom front rail (40.8 x 6.4cm) 3 Right side panel 5 Back rail (40.8 x 5cm) (57.6 x 33.8cm) 8 Drawer runner x 6 6 Front plinth (47.5 x 9cm) 7 Side plinth x 2 (29 x 5.1cm)
- Page 4 Ø8x25mm Wooden dowel x 36 50mm Screw x 12 30mm Screw x 30 25mm Screw x 07 Handle x 03 22mm Bolt x 06 Nails x 20 Profile 485mm x 01 35mm Screw x 04 Ø6x25mm Thin wooden dowel x 04 Ø8x35mm Long wooden dowel x 06...
- Page 5 Fitting wooden dowels: Insert dowels into the indicated parts. Insert thin wooden dowels on top front rail only. Note the hole...
- Page 6 Assembling cabinet: View from top. Fix bottom front rail back rail and top front rail to the left side panel using screws Note: Holes on top front rail must be facing up as shown in the diagram. Step 3 Assembling cabinet: Fix bottom front rail back rail and top front...
- Page 7 Assembling cabinet; Turn cabinet with its front facing up. Fix the top panel the sides using screws Fix top front rail the top panel using screws Assembling cabinet: Fix side plinths the side panels using screws Note: Make sure side plinths are aligned to the bottom and front edges of the side panels.
- Page 8 Step 6 Fixing drawer runners: Carefully stand the product uprigth. Fix drawer runners the sides using screws as shown. Step 7 Fixing back panels: Important: Cabinet MUST be “square” when back panels are attached. Attach back panel to the right side first using nails Position profile onto...
- Page 9 Step 8 Assembling the drawers: Attach drawer sides to the drawer front using screws Slide drawer bottom into slots on drawer sides. Holding the drawer back in place and flush to the edge of drawer side, fix them to the drawer back using screws Using bolt attach...
