Page 1: User Manual

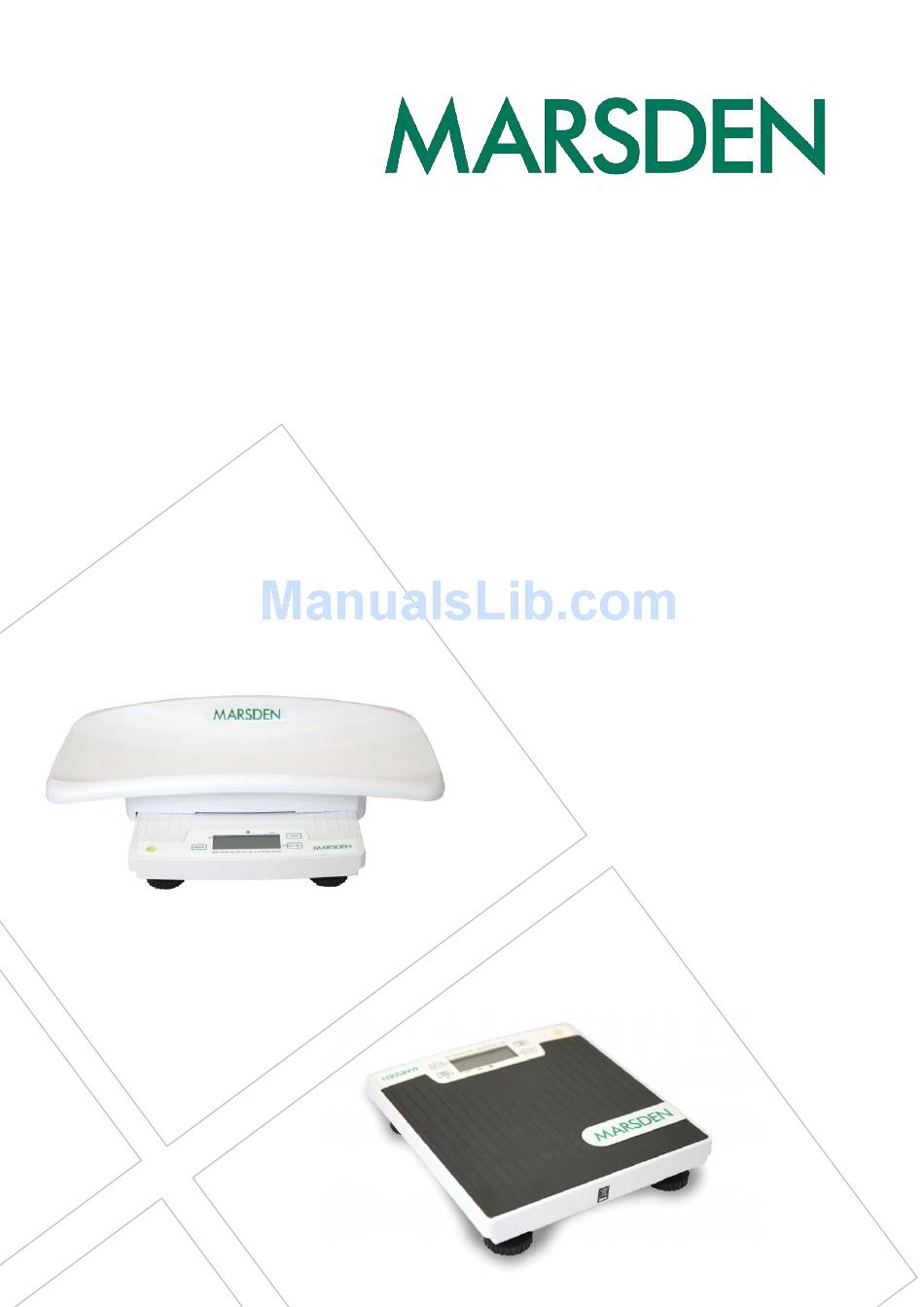

USER MANUAL M-400 M-410 M-420 M-430 Please take time to read these instructions before starting to use the scale Version 1.1 10/17... - Page 2 Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply Functions of the Scale Fitting the Baby Tray Setting the Bluetooth Function Error Messages Troubleshooting EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Manufacturer’s Declaration of Conformity Page 2...
-
Page 3: Product Specification

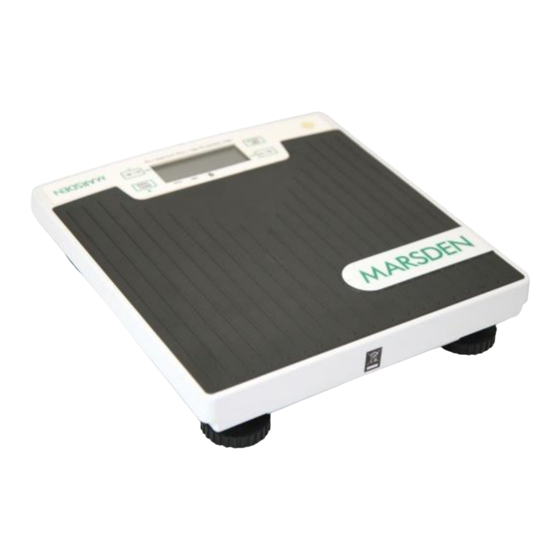

Please note the maximum capacity of the scale you have purchased. This must not be exceeded. This manual covers the M-400 and M-410 Baby Scales, and the M-420 and M-430 Adult Floor Scales. Product Specification... -
Page 4: Safety Instructions
Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: • When using electrical components under increased safety requirements, always comply with appropriate regulations. -
Page 5: Explanation Of Graphic Symbols
This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Transport and storage temperature limit indicating the upper and lower limit (transport and storage temperature on packaging). -
Page 6: Power Supply
Remove the batteries if you do not intend to use the scale for a long period of time. Connecting the Mains Adaptor Connect the adaptor to the scale using the port highlighted below. Only use the mains adaptor supplied by Marsden for this unit. Page 6... -
Page 7: Function Keys
Function Keys Please note: some features are model-dependent. M-400 M-410/M-420/M-430 ON/ZERO/OFF/- 1. Press this key to switch on the scale. The display will show 0.00kg. Pressing the ON/ZERO/OFF/- key on the opposite side of the display (M-410/M-420/M-430 only) will reverse the scale’s display; therefore the display can be viewed by the patient. - Page 8 TARE/+ 1. The TARE/+ key can be used to remove the weight of any unwanted item. For example, when weighing a baby it is normal for a blanket to be placed onto the scale. Press the TARE/+ key once and the weight of the blanket will be removed from the weight reading when the baby is weighed.
- Page 9 Tap-on Function The M-420 and M-430 can also be switched on by using the Tap-on function, to avoid having to bend down to switch the scale on. A short firm press of the platform will turn on the scale and the display will show 0.00kg. The direction of display can be reversed by pressing the ON/ZERO/OFF button when the scale is showing 0.00kg on the display.
- Page 10 1. The baby tray can be slid on or off. To slide the tray on, locate the edges of the base where the tray will slide on. 2. Once the tray has slid onto the base, tighten the screws on both sides. 3. Your M-400/M-410 is now ready for weighing babies! Page 10...
-
Page 11: Setting The Bluetooth Function
Setting the Bluetooth Function (M-420/M-430 only) The M-420 and M-430 can be purchased with a Bluetooth module fitted. 1. Press the TARE key for three seconds. The display will show ‘set.’ 2. Press the BMI/HOLD key until the display shows ‘bluet.’ 3. -
Page 12: Troubleshooting
If the scale fault is due to mechanical or electronic defect then the scale will be repaired or replaced under warranty. The purchaser will need to return the scale to the original place of purchase (Marsden/your Authorised Dealer). Before you contact your Authorised Dealer, please read through the following section carefully. -
Page 13: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-400/M-410/M-420/M-430 is intended for use in the electromagnetic environment specified below. The customer or user of the scale should ensure that it is used in such an environment. - Page 14 Guidance and manufacturer’s declaration – electromagnetic immunity. The M-400/M-410/M-420/M-430 is intended for use in the electromagnetic environment specified below. The customer or user of the scale should ensure that it is used in such an environment. Immunity Test IEC 60601 test level...
-
Page 15: Recommended Separation Distance
Recommended separation distance between portable and mobile RF communications equipment and the M-400/M-410/M-420/M-430. The M-400/M-410/M-420/M-430 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the scale can help prevent electromagnetic... -
Page 16: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorised EU Representative: Manufactured by: Charder Electronic Co., Ltd. - Page 18 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk www.marsden-weighing.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
