「 WF-2055」Package Checklist
The package includes the following items:
One WF-2055 module
One Quick Start
One software utility CD
One screw driver
One RS-232 cable (CA-0910)
One Antenna 2.4GHz - 5 dBi (ANT-124-05)
Note:
1.
If any of these items are missed or damaged, contact the local distributors
for more information. Save the shipping materials and cartons in case you
want to ship in the future.
2.
This document supports the RevB version for the WF-2055 module. For
the previous version, please refer the v1.x version quick start on the CD.

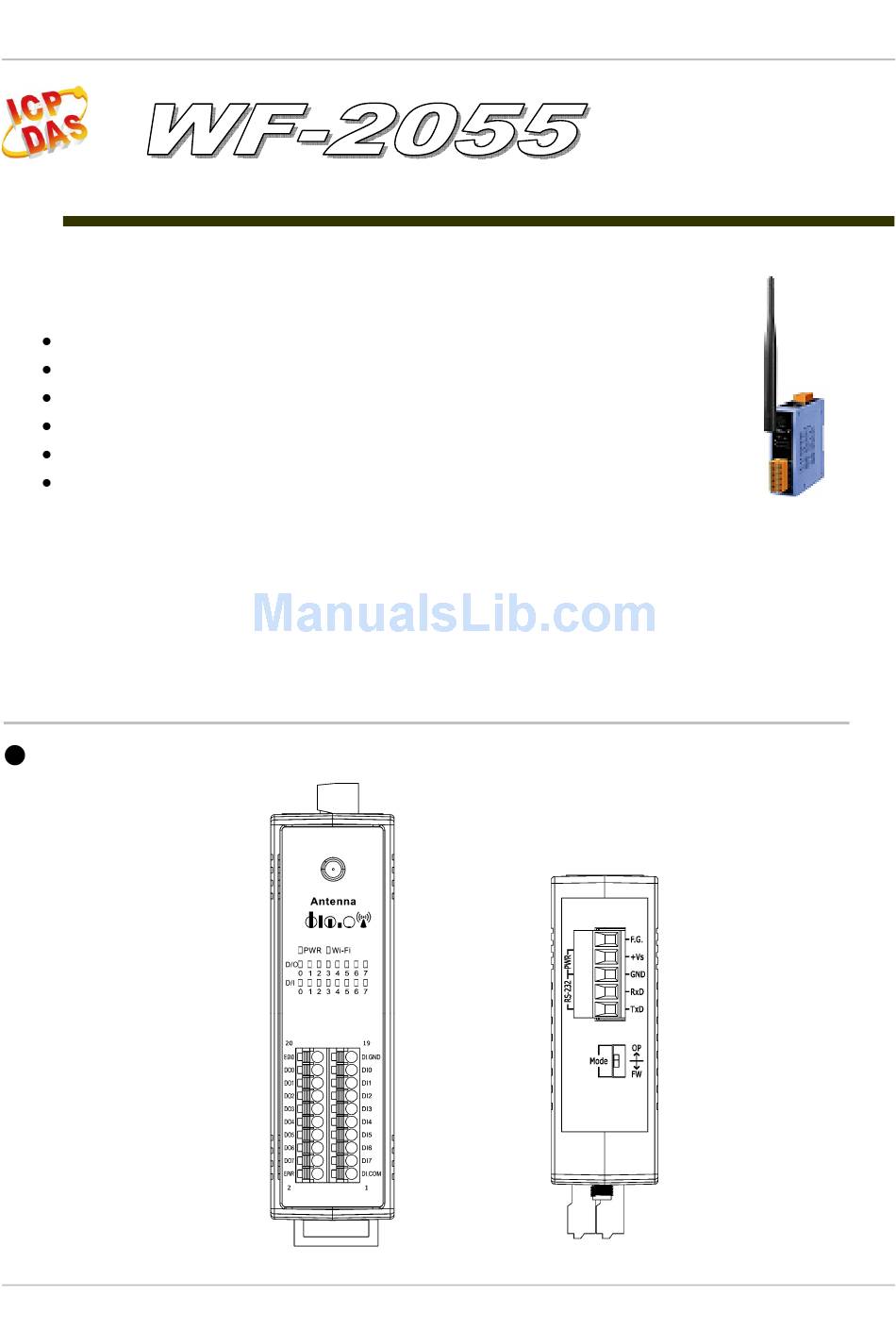

Appearance and pin assignments
Figure 1: Appearance of the WF-2055
WF-2055 Quick Start RevB1.0 2016/09
Quick Start
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF-2055 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA WF-2055

Summary of Contents for ICP DAS USA WF-2055

  • Page 1 Save the shipping materials and cartons in case you want to ship in the future. This document supports the RevB version for the WF-2055 module. For the previous version, please refer the v1.x version quick start on the CD.
  • Page 2 WF-2055 Quick Start RevB1.0 2016/09 Table 1: I/O Connector - WF-2055 I/O Connector - WF-2055 Terminal No. Pin Assignment Terminal No. Pin Assignment DI.COM EXT.PWR DI.GND EXT.GND Table 2: Power/Signal Connector Power/Signal connector Pin Assignment Description Frame Ground +10 ~ +30 VDC...
  • Page 3 WF-2055 Quick Start RevB1.0 2016/09 Figure 2: Power and Serial port wire connection I/O connection Figure 3: DI / DO wire connection...
  • Page 4 WF-2055 Quick Start RevB1.0 2016/09 Installation Before use, associated hardware configuration, the steps described as follows： Step 1: Checking the WF-2000 series firmware operation mode It needs to set the DIP switch to the "OP" position (operation mode), as resetting the power, WF-2000 series will be in the operation mode.
  • Page 5 1 and 254 except 1, Subnet mask as "255.255.255.0". Finally, press "OK" button. 02、Wireless network connection : a. View available wireless networks and you can see the "WF-2055" wireless network in the list. b. Select the "WF-2055" and press the "Connect" button.
  • Page 6 WF-2055 Quick Start RevB1.0 2016/09 Access I/O data 01、Connection with Modbus TCP utility a. Open Modbus TCP utility and key in the IP address as "192.168.255.1", Port as "502". Finally, press the "Connect" button. Figure8: Modbus TCP utility Connection interface b.
  • Page 7 WF-2055 Quick Start RevB1.0 2016/09 e. Use the function code "0x04", and set the reference number as "0x32" to get the Counter monitor data. Figure 12: Counter monitor interface Table 3: (0xxxx) DO address Begin Address Points Descriptions Range Access Type...
  • Page 8 WF-2055 Quick Start RevB1.0 2016/09 Troubleshooting Item Problem Solution Description Power Failure 1. Please return to the ICP DAS for inspection and repair (PWR LED Off) 1. Make sure that the service set identifier device (SSID) settings are the same.
