Dynojet Power Commander V Installation Instructions Manual page 4

FIG.D
FIG.E
FIG.F
PCV
I11-012.01 www.powercommander.com
zip tie
PCV
stock

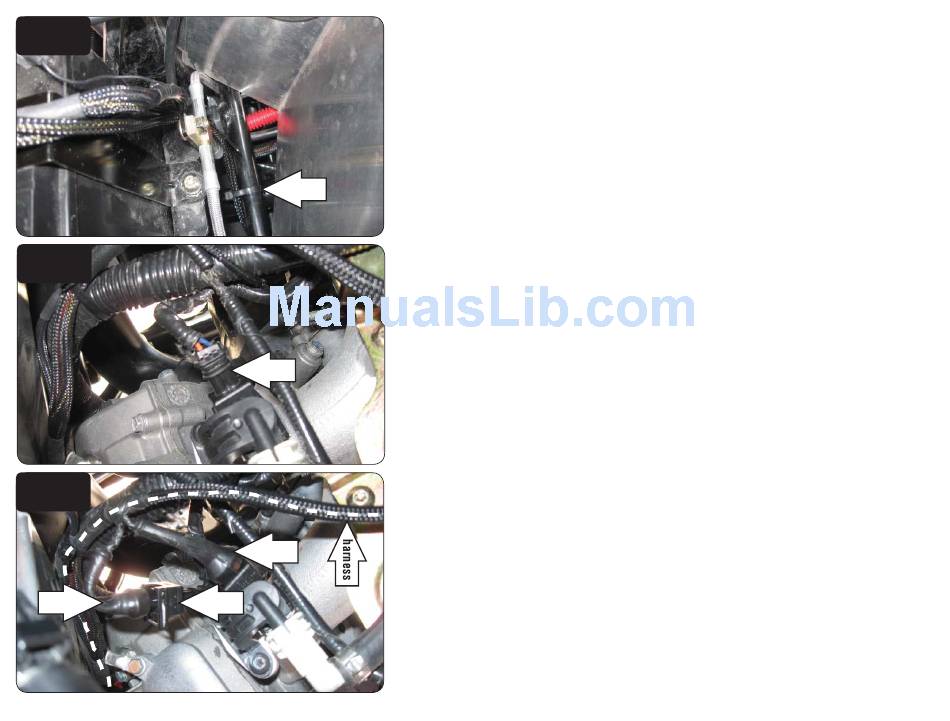

6 Route the PCV harness down the back side of the battery, go underneath the
frame crossover, and up the inside of the aluminum panel as shown in
Figure D.
7 Using the supplied zip ties, secure the PCV wiring harness to the frame. Make
sure the harness does not interfere with the drive shaft.
8 Unplug the stock wiring harness from the front fuel injector as shown in
Figure E.
9 Attach the connectors with the orange colored wires from the PCV harness to
the front fuel injector and stock harness as shown in Figure F.
2012-2014 Arctic Cat Wildcat - PCV - 4
