2018 Triumph Street Triple 765
I n s t a l l a t i o n I n s t r u c t i o n s
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
21-024
www.powercommander.com
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
PARTS LIST
1

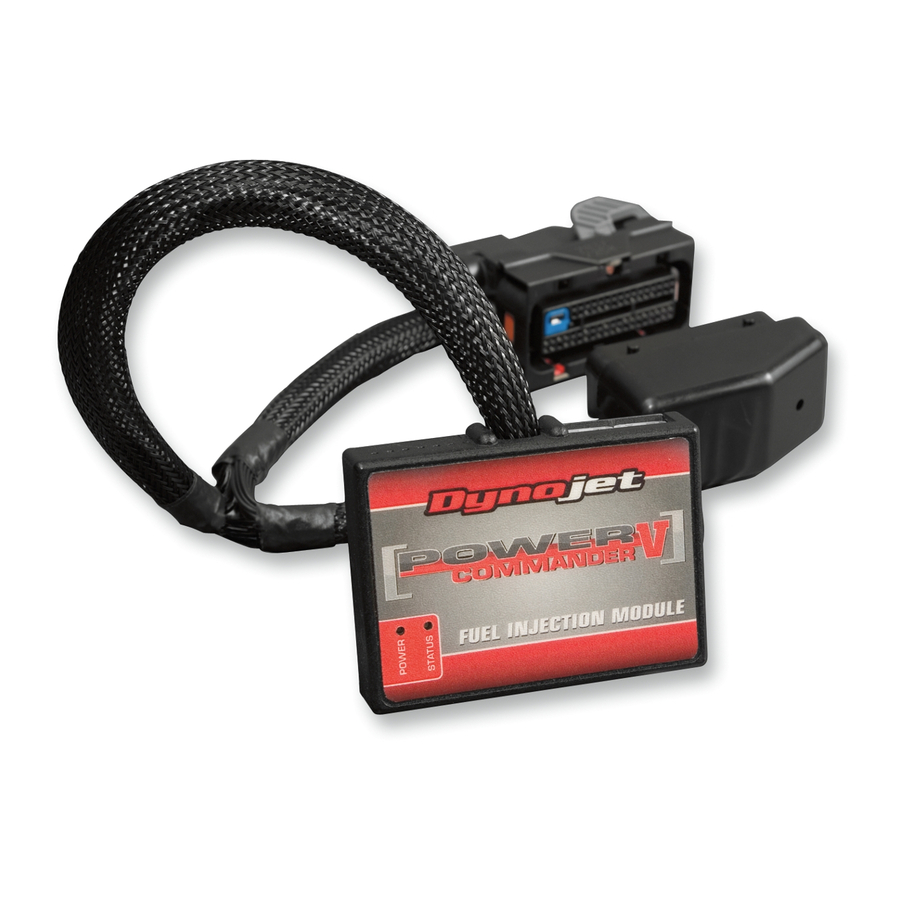

Power Commander
1
USB Cable
1
Installation Guide
2
Power Commander Decals
2
Dynojet Decals
2
Velcro strips
1
Alcohol swab
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2018 Triumph Street Triple 765 - PCV - 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power commander V and is the answer not in the manual?

Questions and answers

Related Manuals for Dynojet Power commander V

Summary of Contents for Dynojet Power commander V

  • Page 1 USB Cable Installation Guide Power Commander Decals 2018 Triumph Street Triple 765 Dynojet Decals Velcro strips I n s t a l l a t i o n I n s t r u c t i o n s Alcohol swab THE IGNITION MUST BE TURNED...
