Summary of Contents for Tektronix P6139A

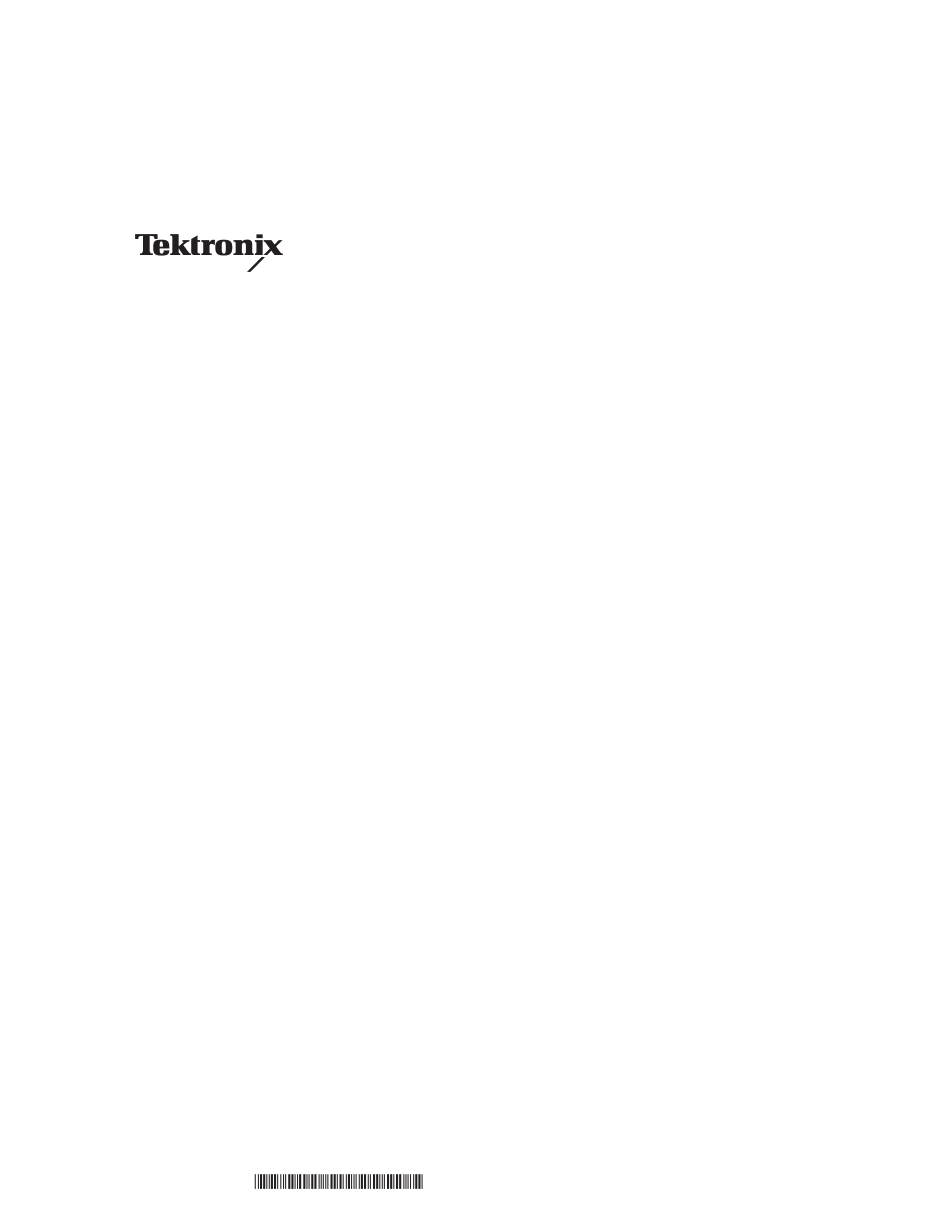

- Page 1 Instructions P6139A 10X Passive Probe 063-0870-03 www.tektronix.com 063087003...
- Page 2 Copyright Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077-1000...
- Page 3 Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located.
-
Page 4: Contacting Tektronix
6:00 a.m. – 5:00 p.m. Pacific time Or contact us by e-mail: tm_app_supp@tek.com For product support outside of North America, contact your local Tektronix distributor or sales office. Service Tektronix offers extended warranty and calibration programs as options on many support products. -
Page 5: General Safety Summary
Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. P6139A Instructions... - Page 6 Symbols on the Product. The following symbols may appear on the product: DANGER Protective Ground ATTENTION Double High Voltage (Earth) Terminal Refer to Manual Insulated Certifications and Refer to the specifications section for a listing of certifications and compliances Compliances that apply to this product. P6139A Instructions...
-
Page 7: Operating Basics

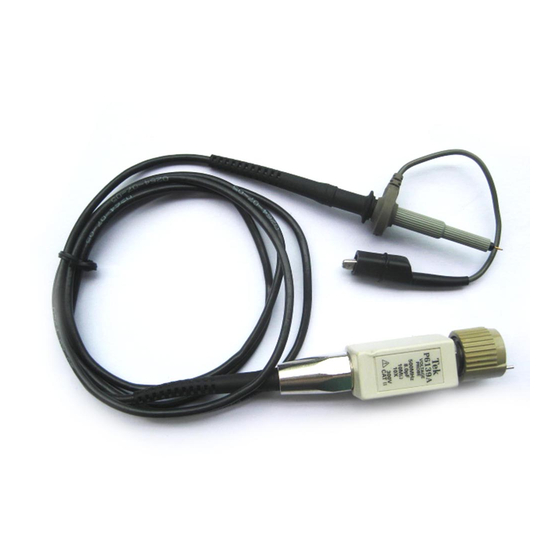

Operating Basics The P6139A is a compact high impedance passive probe designed for use with Tektronix TDS 3000 and TDS 500 Series digitizing oscilloscopes. The P6139A has a 1.3 meter cable and is fully compatible with the Tektronix family of compact size (3.5 mm) probe accessories. -
Page 8: Features And Accessories
Features and Accessories Table 1 illustrates the features and standard accessories of the P6139A probe. Table 1: Features and Accessories Feature/Accessory Description Applications/Notes Retractable hook tip Connects the probe tip to wires and component leads for hands-free measurement. NOTE. For a solid connection, firmly push and twist the hook tip onto the probe tip before using. -
Page 9: Specifications
Specifications The characteristics listed in Table 2 apply to a P6139A probe installed on a Tektronix TDS 3054 oscilloscope unless otherwise noted. Specifications apply when the instrument warms up for a period of at least 20 minutes in an environment that does not exceed the limits described in Table 3 on page 4. - Page 10 –62 C to +85 C (–80 F to +185 F) Humidity Five cycles (120 hr) at 95% to 97% relative humidity Altitude < 2000 meters Tektronix standard 062-2847-00, class 3. Refer to MIL-E-16400F, paragraph 4.5.9 through 4.5.9.5.1, class 4. P6139A Instructions...
- Page 11 Specifications ohms degrees –25 Phase (ohms) (degrees) –50 –75 –100 Frequency (Hz) Figure 3: Typical P6139A input impedance Voltage (RMS) Frequency (MHz) Figure 4: Typical P6139A voltage derating P6139A Instructions...
- Page 12 Pollution Degree 2 Do not operate in environments where conductive pollutants may be present. Safety UL3111-1, First Edition & IEC61010-2-031, First Edition CSA C22.2 No. 1010.1-92 & CAN/CSA C22.2 No. 1010.2.031-94 EN61010-1/A2 EN61010-2-031 Pollution Degree 2 P6139A Instructions...
-
Page 13: Replaceable Parts
Replaceable Parts Figure 5: P6139A probe with standard accessories P6139A Instructions... - Page 14 Replaceable Parts Replaceable parts: P6139A probe and standard accessories Fig. & Tektronix part Serial no. Serial no. Mfr. index number effective discont’d Name & description code Mfr. part number number P6139A 5 –1 206–0440–00 COMP BOX ASSY:1.3M,P6139A 80009 206–0440–00 –2 131–3219–00...
- Page 15 Replaceable Parts Figure 6: P6139A probe optional accessories Replaceable parts: P6139A probe optional accessories Fig. & Tektronix part Serial no. Serial no. Mfr. index number effective discont’d code Name & description Mfr. part number number OPTIONAL ACCESSORIES 6 –1 013–0226–00...
- Page 16 PO BOX 500 TK2469 UNITREK CORPORATION 3000 LEWIS & CLARK HWY VANCOUVER, WA 98661 SUITE 2 TK2548 XEROX CORPORATION 14181 SW MILLIKAN WAY BEAVERTON, OR 97005 TK2565 VISION PLASTICS INC 26000 SW PARKWAY CENTER DRIVE WILSONVILLE, OR 97070 P6139A Instructions...
