Note: The holes in the disk enclosure sheet metal for the rear hold-down screws should align with
the captured nuts in the side of the support rails as in item 4 of Figure 1-21.

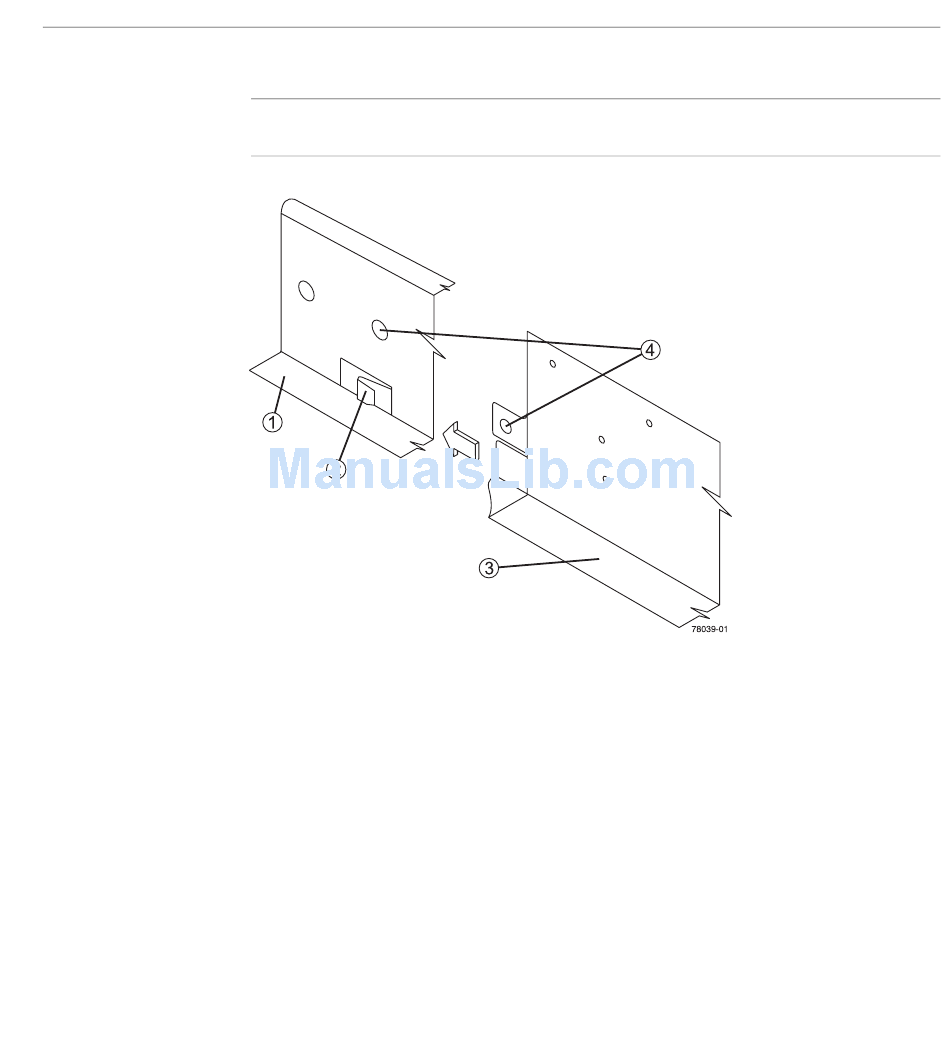

Figure 1-21
Sliding the RAID/Disk Enclosure into the Rail's Rear Clip
Use the following numbered items to identify key parts of the rail and disk enclosure rear
connection points:
1. Support rail
2. Clip
3. Partial view of the disk enclosure rear sheet metal
4. Alignment hole in the disk enclosure rear sheet metal for captured nut in the support
rail.
Use Figure 1-22 on page 26 and the steps that follow to properly secure the disk enclosure in the
rack with screws (see item 1).
