1: SGI InfiniteStorage NEXIS 2000 Quick Start

Data Manager, One SATA Controller, and One Disk Expansion Enclosure

12
Use the following steps and Figure 1-12 to cable a data manager to a single-controller SATA
RAID enclosure with one disk expansion enclosure.
1. Connect the Data Manager's Fibre Channel PCI card port A to the RAID controller's host 1
port in the controller enclosure, see Figure 1-12.
2. Connect the Data Manager's Fibre Channel PCI card port B to the RAID controller's host 2
port.
3. Connect the RAID controller's expansion connector (far right) to the disk expansion
enclosure's input connector (left side).
Data manager
RAID controller
enclosure
Disk enclosure
expansion

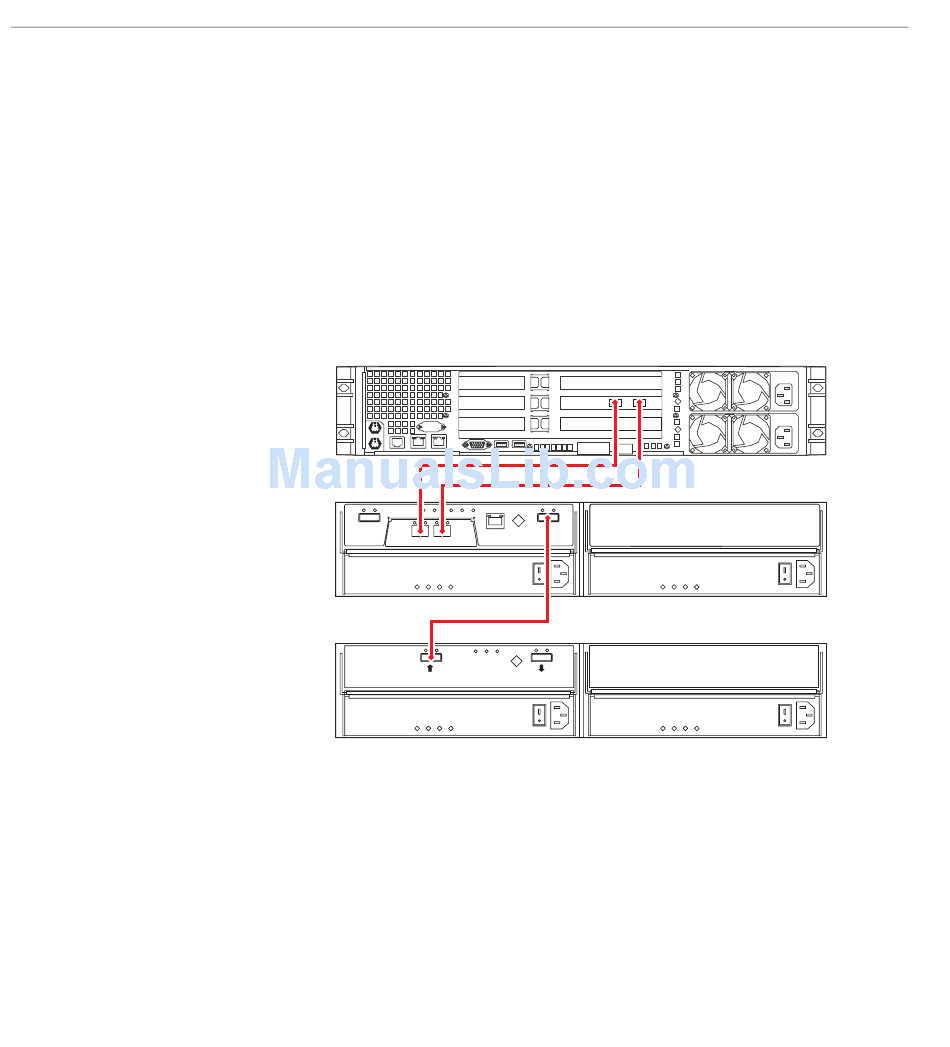

Figure 1-12
Data Manager, Single-Controller RAID Enclosure and One Disk Expansion
