System Indicators
007-4988-001
Expansion drive enclosures cable to the primary disk enclosure. The RAID controller/drive
enclosure has a set of indicators on the front-left side that help you determine the operational status
of the unit, see Figure 1-7.
1.
Module locate LED
2. Service required LED
3. Module over temperature LED
4. Power good LED

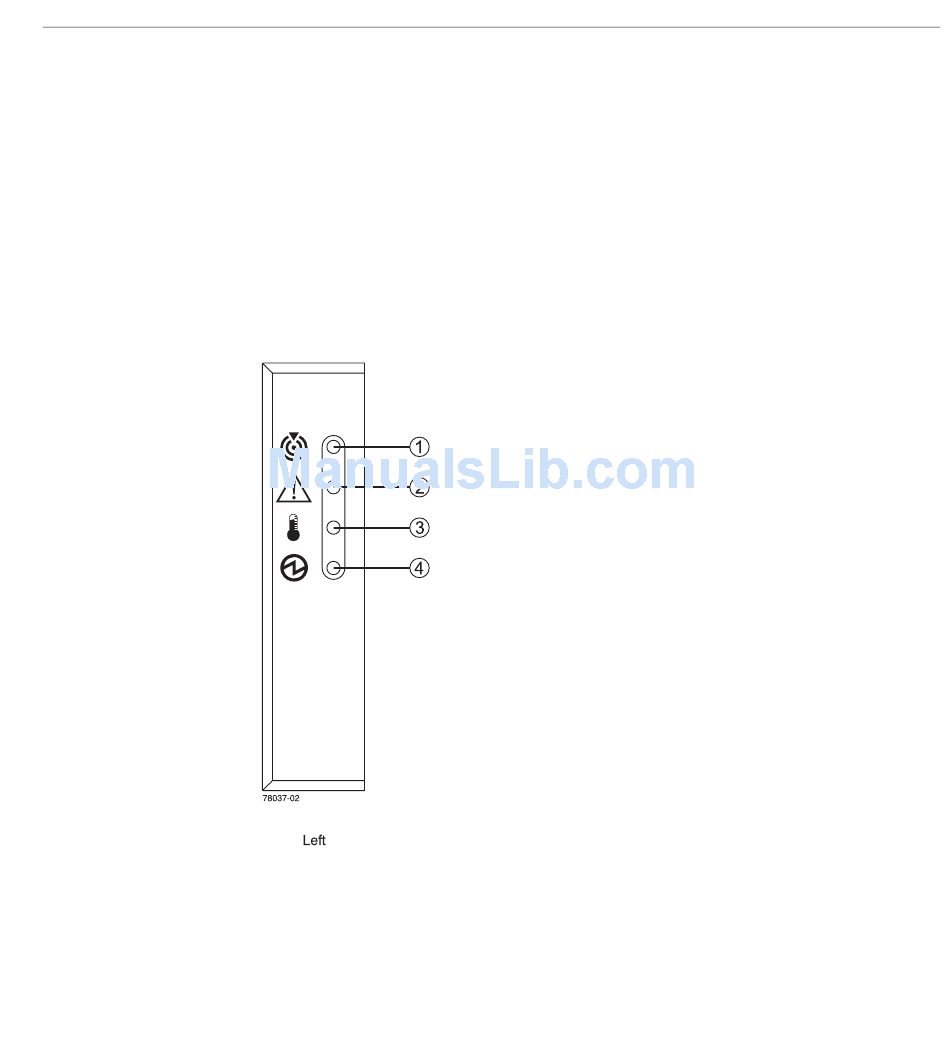

Figure 1-7
NAS Drive Module Status LEDs
System Indicators
7
