1: SGI InfiniteStorage NEXIS 2000 Quick Start
24

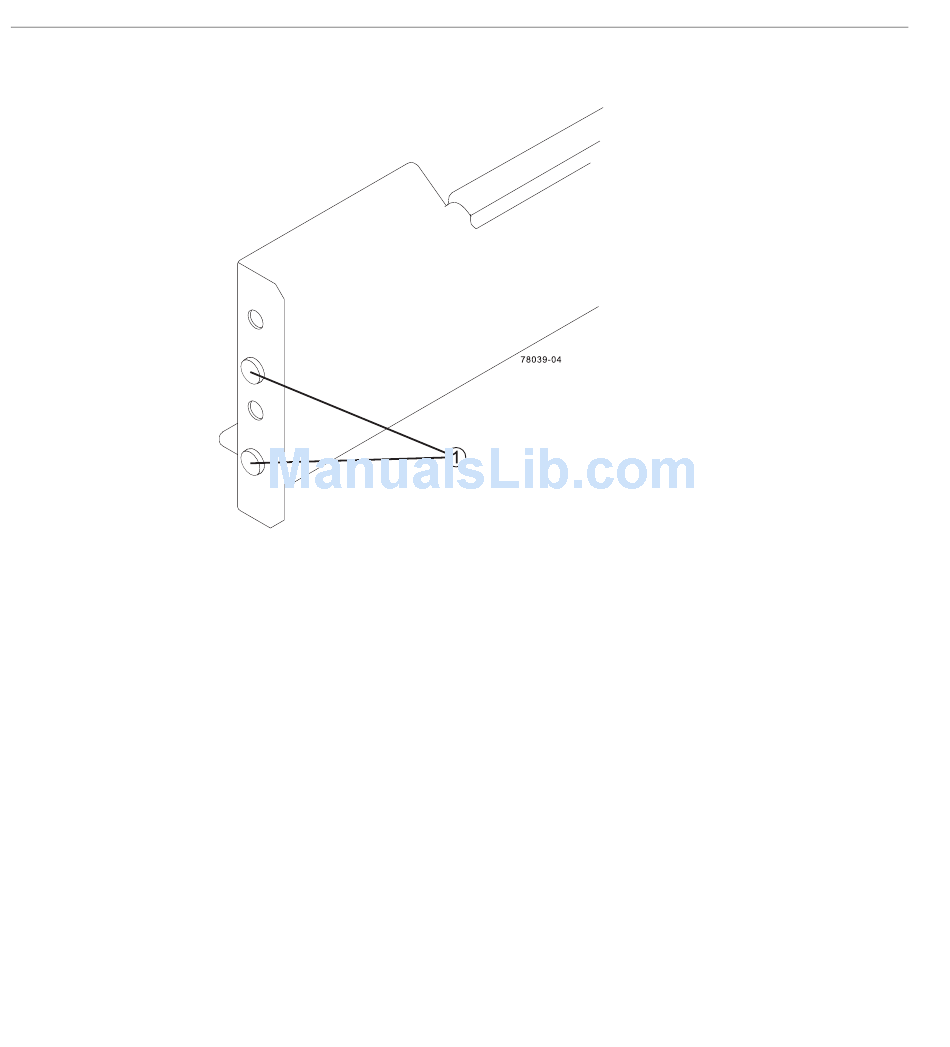

Figure 1-20
Support Rail Alignment Spacers Example
Finish the installation of the rails and install the RAID/disk enclosure using the following steps
and Figure 1-21 on page 25.
1.
Insert one M5 screw through the front of the cabinet and screw into the top captured nut in
the support rail.
2. Insert two M5 screws through the rear of the disk enclosure and screw them into the captured
nuts in the rear flange in the support rail.
3. Tighten the adjustment screws on the support rail as appropriate.
4. Repeat these steps for the second support rail.
5. With the help of one other person, slide the rear of the disk enclosure onto the support rails
from the front of the rack. Make sure the enclosure is correctly aligned on the support rails
by confirming that:
–
The mounting holes on the front flanges of the disk enclosure align with the mounting
holes on the front of the support rails.
–
The rear edge of the disk enclosure sheet metal fits into the clip on the support rail.
007-4988-001
