Intermec CK60 Instructions

Intermec CK60 Instructions

Serial snap-on adapter
Hide thumbs Also See for CK60:
1
2

Advertisement

Quick Links

Download this manual
Specifications
Environmental
Operating Temperature:
-20°C to +50°C (-4°F to +122°F)
Storage Temperature:
-30°C to +70°C (-22°F to +158°F)
Relative Humidity:
5% to 95%
Serial RS-232 DB9M Connector Pinouts
Pin Number Signal Name
I/O to Computer
Description
1
DCD
I
RS-232 Data carrier detect
2
RXD
I
RS-232 Receive data
3
TXD
O
RS-232 Transmit data
4
DTR
O
RS-232 Data terminal ready
5
GND
PWR
Signal Ground
Serial RS-232 DB9M Connector Pinouts (
)
Pin Number Signal Name
I/O to Computer
Description
6
DSR
I
RS-232 Data set ready
7
RTS
O
RS-232 Request to send
8
CTS
I
RS-232 Clear to send
9
PWR_OUT
PWR
5VDC 0.5 A To power external devices
DB9 Shell
C-GND
PWR
Chassis Ground

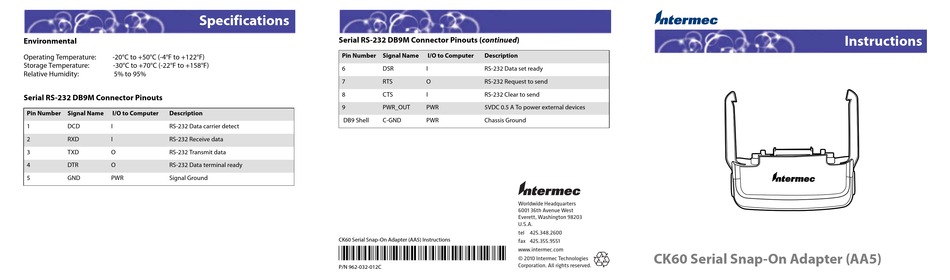

CK60 Serial Snap-On Adapter (AA5) Instructions
*962-032-012C*
P/N 962-032-012C
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
CK60 Serial Snap-On Adapter (AA5)
© 2010 Intermec Technologies
Corporation. All rights reserved.
Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the CK60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec CK60

Summary of Contents for Intermec CK60

  • Page 1 RS-232 Data terminal ready Signal Ground Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 CK60 Serial Snap-On Adapter (AA5) Instructions fax 425.355.9551 *962-032-012C* www.intermec.com CK60 Serial Snap-On Adapter (AA5) © 2010 Intermec Technologies Corporation. All rights reserved.
  • Page 2 To attach the serial adapter: handheld scanners. • Align metal clips with guides on either side of the CK60 and press firmly. The adapter Compatible scanners: 1551, 1553, 1555, 1800 Series, and 1470 Intermec scanners. latches into place. Cable required P/N 3-604032-06 To remove the serial adapter: •...
