SDB680 – INSTALLATION GUIDE

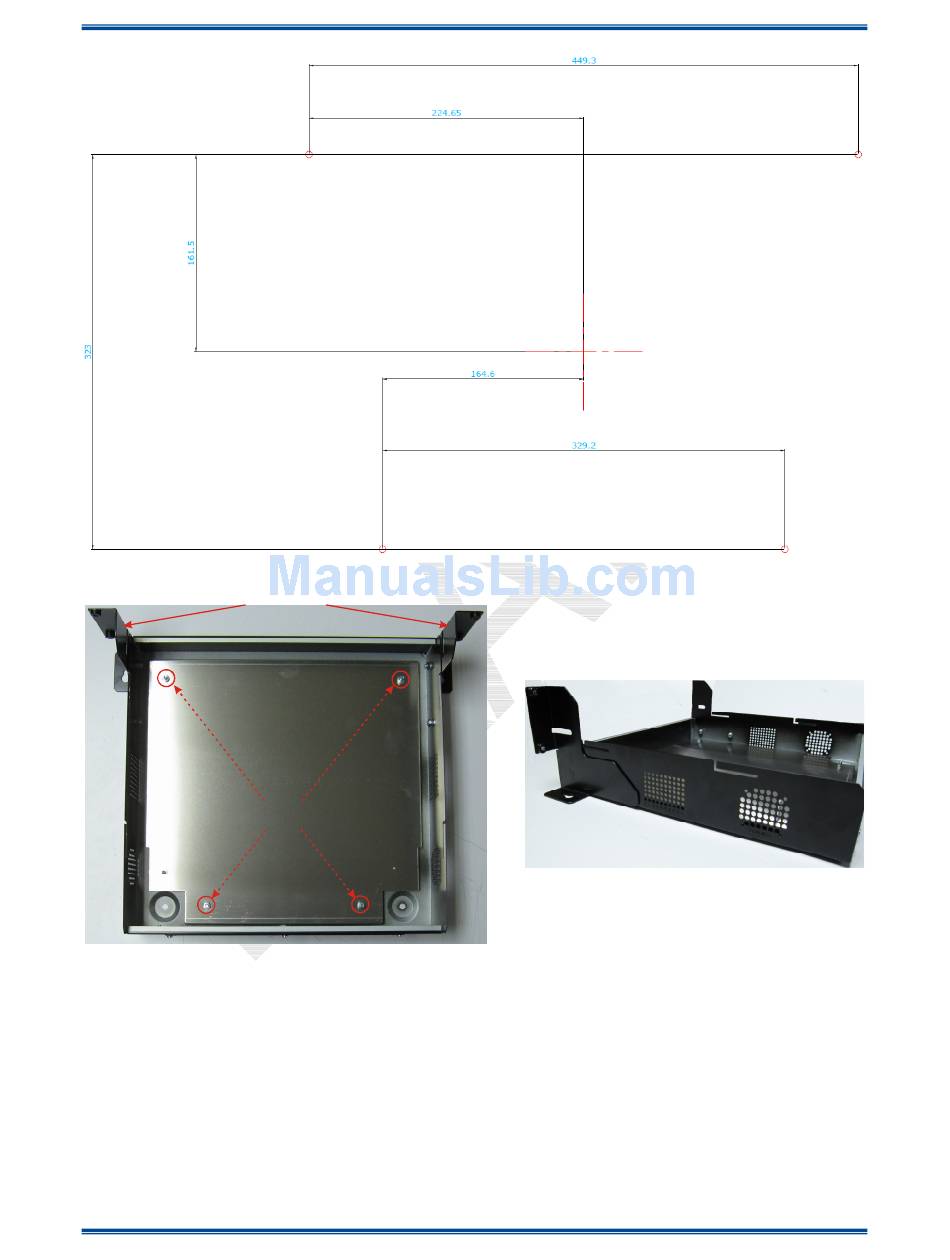

Figure 3. Mounting holes drilling template (dimensions in mm).

Wall Mount Brackets
Inner Chassis Plate
securing points
F
1.2
ITTING THE
10.
Ensuring that all cables are clear of the mounting position and cannot be trapped, offer the base station
up to the wall mount unit and fit the four keyhole standoffs on the base station (two per side) into the
mounting grooves on the wall mount case (see Figure 5 overleaf for details).
11.
Secure the front panel of the base station to the wall mount brackets using four M6 x 12 mm pozidriv
retaining bolts with plastic cup washers (two per side) (see Figure 6 overleaf).
May 15

Figure 4. Wall Mount Assembly.

SDB680 S
BASE TATION
Page 22
WALL MOUNT INSTALLATION
TNM-I-E-0046
