8) INSTALLER SETTINGS
NOTE: Waiting 1-Minute with no button presses will exit
the installer settings menu with all items saved as they
were last shown on the display screen.

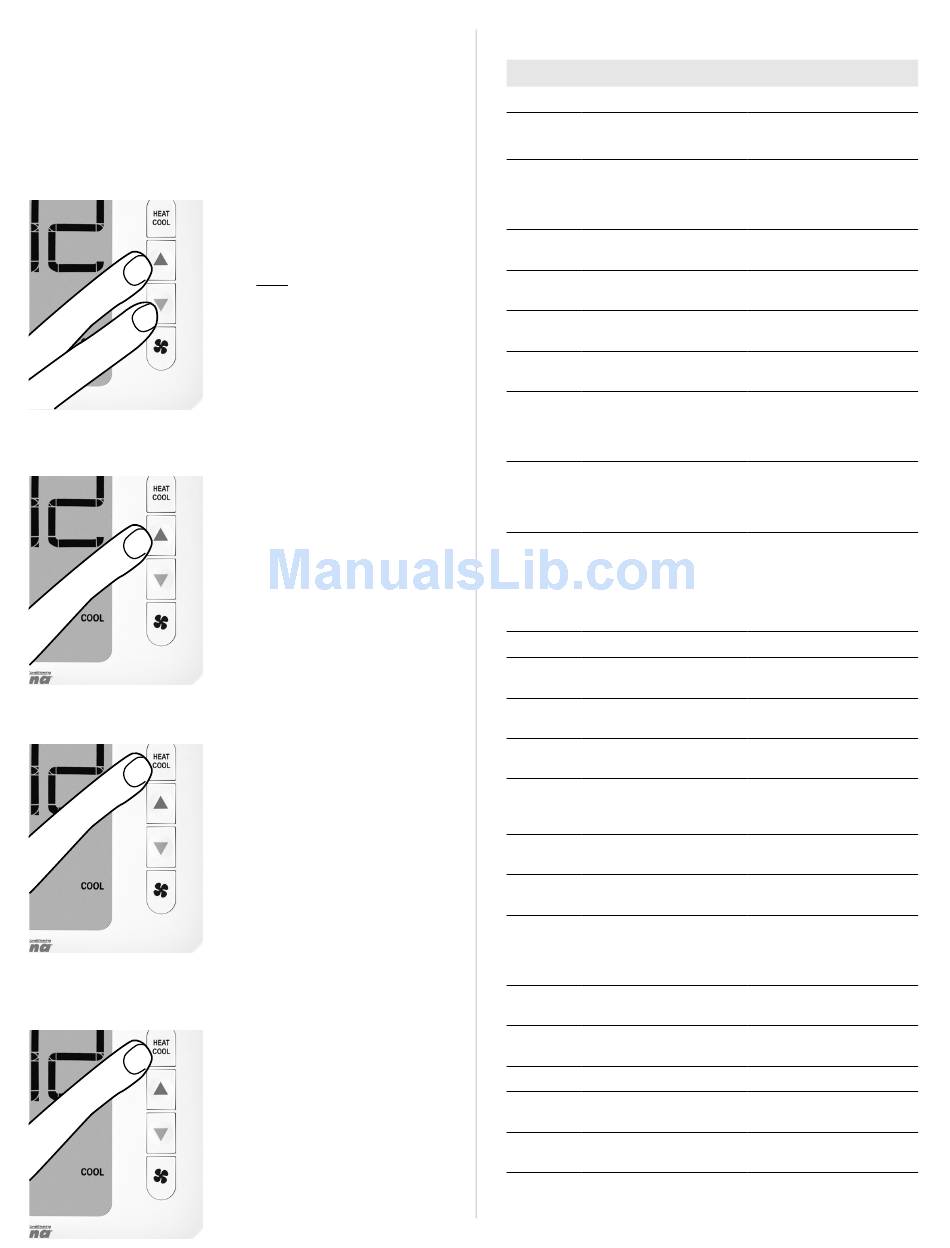

TO ENTER INSTALLER SETTINGS MENU:
TO CHANGE AN ENTRY:
TO ADVANCE TO THE NEXT MENU ITEM:
TO RETURN TO THE MAIN THERMOSTAT SCREEN:
With thermostat powered,
press System Mode button
until OFF is underlined.
After OFF mode is confirmed,
press and hold BOTH the Up
and Down buttons for at least
5 seconds until the screen
changes.
Use the Up or Down buttons
to change the setting option.
Press the Mode button one
time to advance to the next
item in the menu.
While at the last menu item,
press the System Mode
button one more time to exit
the Installer Settings menu.
SOFTWARE CONFIGURATION SETTINGS
MENU# SETTING
01
Scale
02
Temp. Calibration
03
Available Modes
04
Max. Heat
05
Min. Cool
06
System Type
07
HP Valve Type
08
Auto Dead-Band
09
Swing /
Temp. Differential
10
Aux. Stage Offset
(for Heat Pumps only)
--
12
High Fan
13
Programming
14
Clock Format
(see note #1)
15
Periods per/Day
(see note #1)
16
Auto Daylight
Savings (see note #1)
17
Backlight Always On
18
Use default set temp.
after mode change
(see note #2)
19
Default heat mode set
temp (see note #2)
20
Default cool mode set
temp (see note #2)
--
98
Compressor
Protection Bypass
99
RESET
NOTES: (#1) For Programmable operation only.
(#2) For Non-Programmable operation only.
OPTIONS
F, C
Zero, -5F to +5F
(-3C to +3C)
01: Heat, Cool, Auto
02: Heat, Cool
03: Heat Only
04: Cool Only
60F to 90F (80F)
(16C to 32C)
60F to 80F (65F)
(16C to 27C)
HP=Heat Pump
Con=Conventional
B: Valve on in Heat
O: Valve on in Cool
2.0F (1.11C)
3.0F (1.67C)
4.0F (2.22C)
5.0F (2.78C)
±0.25F (±0.14C)
±0.50F (±0.28C)
±1.00F (±0.56C)
±2.25F (±1.25C)
Off
1: 1.0F (0.5C)
2: 2.0F (1.0C)
3: 3.0F (1.5C)
4: 4.0F (2.0C)
5: 5.0F (2.5C)
On: Available
Off: Disabled
Off: Manual
On: Programmable
12: AM/PM
24: 24 Hr. Military
4: 4-Periods
2: 2-Periods
1: 1-Period
On: Auto DST
Off: Manual
Off=Turn off 10 sec
On=Always On
ON: Uses default
temps
OFF: Use last temp per
mode
70F (21C)
60F to max heat set temp
74F (23C)
80F to min cool set temp
No=Delays Remain
Yes=Suspend Delay
No=Save and Exit
Yes=Full Reset
