1) DESCRIPTION AND COMPATIBILITY
The Amana PHWT-A100C is a non-programmable
electronic thermostat, which can be used with the
following heating/cooling applications:
• Cooling/ Conventional PTAC Units (PTC) with or
without Electric Heat
2) SPECIFICATIONS
• Input Voltage: 19 to 30 VAC
• Output Rating: Max. 1.5A per terminal (3A total)
• Temperature Control: 45°F to 90°F (7°C to 32°C)
• Temperature Accuracy: ± 1°F (± 0.5°C)
• Wire Terminals:
C
24 VAC Common
GL
Fan LOW Speed
GH
Fan HIGH Speed
W
Heating Signal
Y
Cooling Signal
R
24 VAC Hot
B/O
Reversing Valve

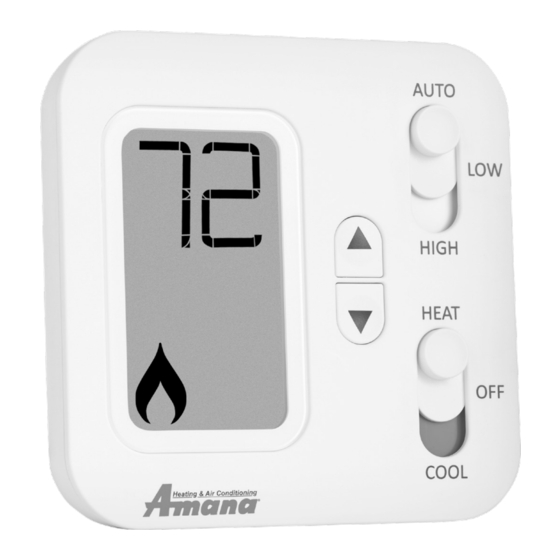

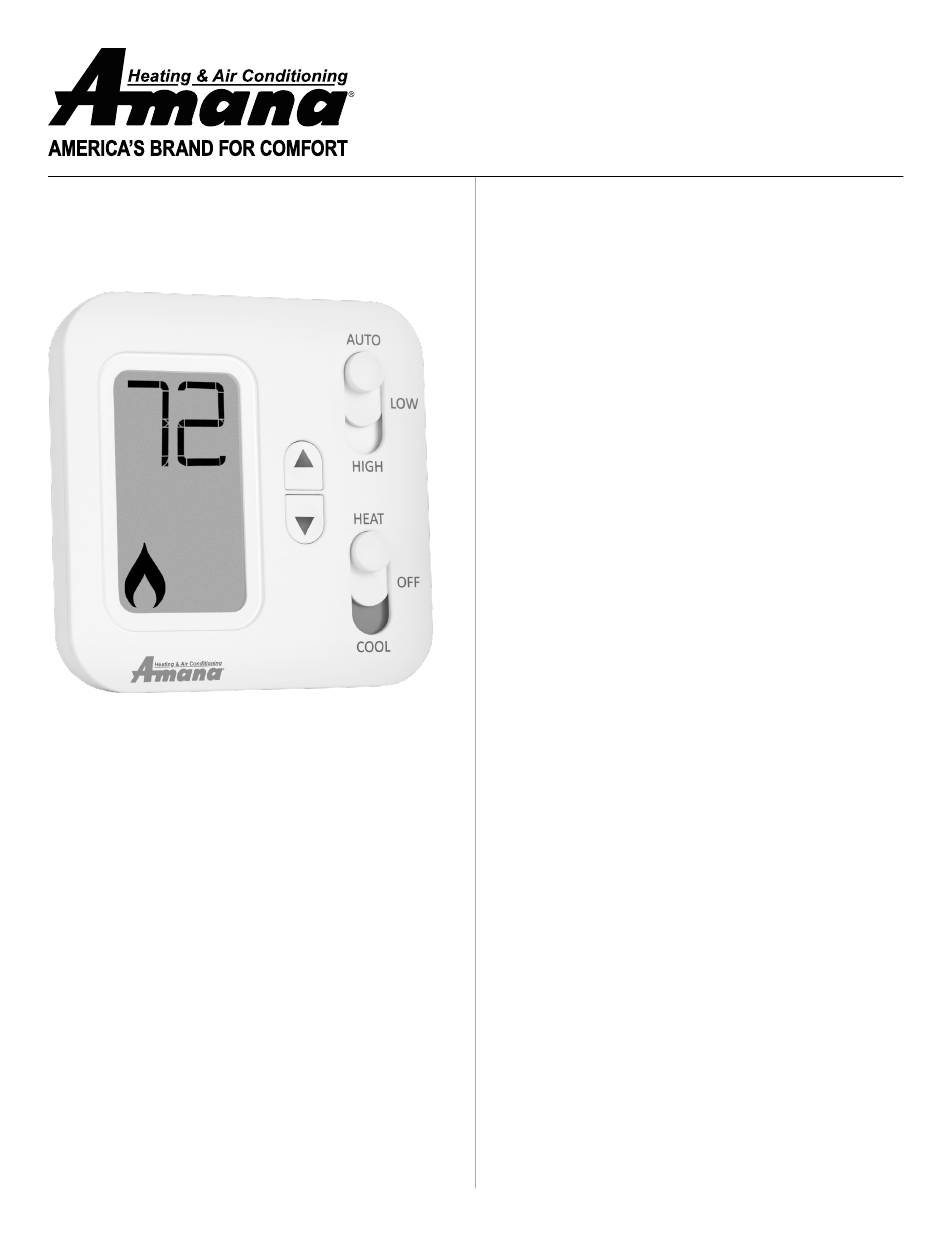

AMANA PHWT-A100C THERMOSTAT
3) SAFETY INFORMATION
• This thermostat is for LOW voltage applications only.
• Turn OFF electricity to all heating and cooling
components.
• All wiring must conform to applicable local
and national building and electrical codes and
ordinances.
4) TO REMOVE EXISTING THERMOSTAT
1. Write down the letters printed near each wire
terminal that is used, and the color of each wire it
is connected to; self-adhesive wire labels are also
enclosed.
2. Carefully remove wires from existing thermostat
and bend so they cannot fall back into wall or
touch each other.
3. Remove existing thermostat base from the wall.
5) TO INSTALL NEW THERMOSTAT
1. Mount the thermostat on an inside wall about
five feet above the floor in an area that has good
circulation, but is not directly affected by a vent
or duct.
2. If painting or construction is still ongoing, cover
the thermostat completely or wait until work is
complete before mounting thermostat.
3. If new mounting holes are needed, mark the
placement of the new mounting holes through
the thermostat base. Using a 3/16" drill bit,
drill the holes you have marked and insert the
supplied wall anchors.
4. Feed the wires through the wire opening in the
base and use supplied screws to mount base to
the wall.
5. Using Section 7) WIRING DIAGRAMS, wire each
terminal on the new thermostat base. Ensure that
the bare end is fully seated into the connector,
then tighten securely. Pull gently on wires to
ensure they are secure.
6. Place thermostat front back onto the base.
7. Restore power back to heating and cooling
components and thermostat.
8. See Section 8) INSTALLER SETTINGS MENU, to
adjust the required settings needed for each
system type.
PTAC DIRECT SALES, INC.
185 S. Kimball Avenue., Suite 130
Southlake, TX 76092
877.454.7822

Advertisement

loading

Summary of Contents for Amana PHWT-A100C

  • Page 1 1) DESCRIPTION AND COMPATIBILITY 2. If painting or construction is still ongoing, cover the thermostat completely or wait until work is The Amana PHWT-A100C is a non-programmable complete before mounting thermostat. electronic thermostat, which can be used with the 3. If new mounting holes are needed, mark the...
  • Page 2 6) FRONT PANEL CONTROLS THERMOSTAT BUTTONS: THERMOSTAT SYSTEM MODE SWITCH POSITIONS: HEAT position UP button OFF position DOWN button COOL position HEAT = thermostat permits heating operation UP / DOWN = used for raising or lowering the target set OFF = thermostat stops all heating or cooling functions temperature and selecting user options and settings in COOL = thermostat permits cooling operation the display screen.
  • Page 3 7) WIRING DIAGRAMS UP TO 1H/1C CONVENTIONAL APPLICATIONS: UP TO 1H/1C HEAT PUMP APPLICATIONS: (AMANA PTC PTAC MODELS) (AMANA PTH & HEH PTAC MODELS): NOT USED HP Reversing Valve 24V Power 24V Power A/C Cooling Heat Pump Compressor WHEN USED FOR...
  • Page 4 8) INSTALLER SETTINGS 20 (Default Cool Mode Set Temp): Determines the default set temperature that is used when first selecting cool MENU# SETTING OPTIONS mode. 98 (Delay Bypass): Contractor/Installer mode, turns F, C Scale off the compressor delays for testing the system; Zero, -5F to +5F Temp.
