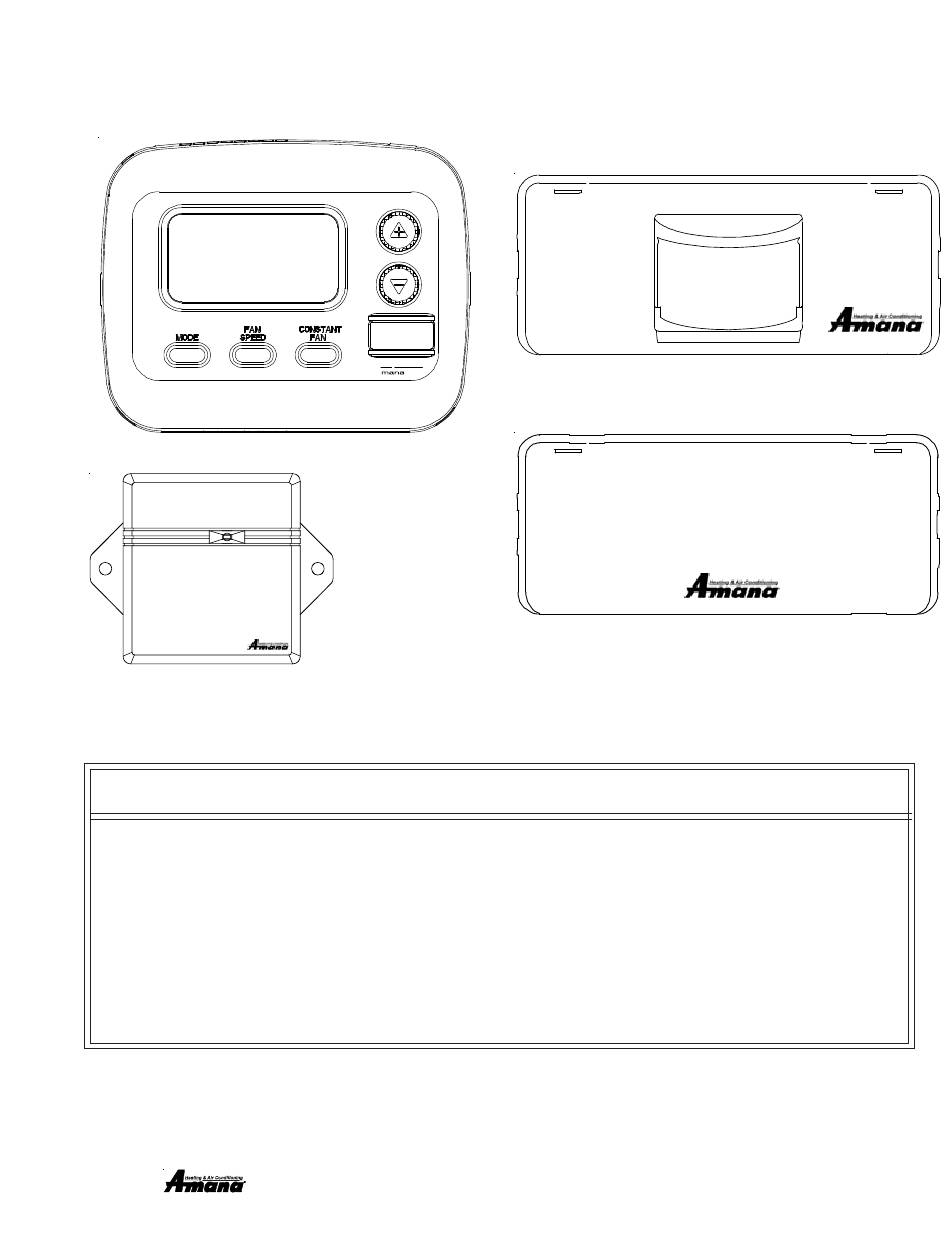

WIRELESS KITS (DT01*, DS01E, DD01E, DD01F)
for additional assistance and explanation prior to ordering materials or cutting openings.
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the product better than the customer.
Prior to actual installation, thoroughly familiarize yourself with this Instruction Manual.
it is possible to place yourself in a position which is more hazardous than when the unit is in operation.
Remember, it is your responsibility to install the product safely and to know it well enough
The precautions listed in this Installation Manual are intended as supplemental to existing practices.
However, if there is a direct conflict between existing practices and the content of this manual,
1/2013
IO-729C
I
NSTALLATION
A
Heating & Air Co nditioning
®
DS01E
DT01A
DT01G
The following installation instructions are for a typical installation.
Please contact your PTAC salesperson
This includes all safety precautions and related items.
Pay special attention to all safety warnings. Often during installation or repair
to be able to instruct a customer in its safe use.
Safety is a matter of common sense...a matter of thinking before acting.
Most dealers have a list of specific good safety practices...follow them.
the precautions listed here take precedence.
PTAC
I
NSTRUCTIONS
AIR CONDITIONING SENSOR
DD01E
AIR CONDITIONING SENSOR
DD01F
PTAC Direct Sales, Inc.
185 S. Kimball Ave.
Suite 130
Southlake, TX 76092
877.454.7822 (T)
877.647.6408 (F)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS01E and is the answer not in the manual?

Questions and answers

Summary of Contents for Amana DS01E

  • Page 1 PTAC WIRELESS KITS (DT01*, DS01E, DD01E, DD01F) NSTALLATION NSTRUCTIONS AIR CONDITIONING SENSOR Heating & Air Co nditioning ® DD01E DS01E DT01A DT01G AIR CONDITIONING SENSOR DD01F The following installation instructions are for a typical installation. Please contact your PTAC salesperson for additional assistance and explanation prior to ordering materials or cutting openings.
  • Page 2 • Use only one DD01E Passive Infrared Motion Sensor (PIR) door switch combination device and/or one DS01E to one DigiSmart™ PTAC unit. Antenna Installation For DT01* Kit Wire A DT01* antenna must be installed on the digital PTAC to allow operation of either the DS01* remote RF thermostat or a DD01* combination PIR motion sensor and door switch.
  • Page 3: Terminal Block

    Thermostat Installation for DS01E Kit NOTE: A DT01* must be installed on the digital PTAC unit for the DS01* to be operable. Skip these steps if not installing. 1. Select thermostat mounting location about five feet above the floor, on an inside wall, out of direct sun-...
  • Page 4: Power Connection

    Mounting Sensor/Door Magnet Installation WIRED MAGNET AND POWERED DOOR for DD01E and DD01F Kits SENSOR OPTION DD01E and DD01F must be mounted on the top door frame In cases where there is no top door frame, the sensor will as close to the door as possible in the horizontal position. need to be mounted on the wall next to the door.
  • Page 5 Door Magnet Installation Viewed from the back with the power block in upper right corner. Power Connection NOTE: Magnet buckets are shipped from the factory with the magnets in position A. The position may change based on the door and door frame alignment on page 6. Wired Magnet Connection...
  • Page 6 Security Screw location (located on each side of sensor) MAGNET MUST BE 15/16” FROM THE SENSOR MOUNTING PLATE MAGNET HOLDER MAY EXTEND 1/8” max. ABOVE THE DOOR (OR THE DD01E OR DD01F MAGNET MAY EXTEND BELOW THE DOOR FRAME) TO ENSURE THE MAGNET IS NO MORE THAN 1/8”...
  • Page 7 CONSTRUCTION STYLE 1 CONSTRUCTION STYLE 2 Place magnet in Position A Place magnet in Position B in instances when the door in instances when the door extends into the room and frame align. beyond the door frame. POSITION A POSITION B CONSTRUCTION STYLE 3 CONSTRUCTION STYLE 4 Place magnet in Position C...
  • Page 8 Steps 1 & 2. Configuration Settings The PTAC control will automatically self-configure to work with the wall thermostat (DS01E Kit) if installed and bound. The PTAC control will automatically self-configure to activate pre-configured energy management routine when the DD01E or DD01F is installed and bound to the PTAC.
  • Page 9 DP01* or DL01E Entering Room Number (Skip if not using DP01* Front Desk Platform) 1. The PTAC control can be set for a 4-digit room number. To select the first two digits (floor), press the HEAT key until appears, then press the up down arrows to select the first two digits.
  • Page 10 SAME PROPERTY!!! corners of the thermostat. RF TRANSMITS THROUGH WALLS. The wireless devices (DS01E and or DD01E must be bound to the PTAC DT01* control for proper in-room communication. Ensure the unit is powered but in the OFF position. NOTE: Both the DS01E and the DD01E must be bound to the PTAC unit during the same “learn”...
  • Page 11 CONFIGURATION SETTINGS CHART Configuration Code Description Option Code Description Interface Chassis Membrane* Wireless Remote Wired Thermostat Fan Operation Button present 7-Button, reverts to Cyclic Always run fan (even in Off) 7-Button, reverts to Continuous Reverse Cycle Operation Cooler Only Heat Pump* Service No Operation "Eo"...
  • Page 12 Setback Temps - DD01E / DD01F The DD01* and the DigiSmart™ control can be programmed for 3 different times to activate temperature setbacks. The current factory default temperature setbacks in v2.5 * software release are: 2º from set point in 30 minutes, 3º in one (1) hour, and 6º...
  • Page 13 9. Press HEAT key to scroll to third unoccupied setback time. Press either the up or down arrow to the desired third unoccupied setback time. 10. To exit configuration mode: Press the OFF key. NOTE: Configuration feature mode will also automatically exit if no keys are pressed for a period of two (2) minutes.
  • Page 14 Suggested Wireless Thermostat Locations in Typical Room Layouts Select thermostat mounting location about five feet above the floor, on an inside wall, out of direct sunlight, away from sources of radiant heat (lamps, fireplaces, heating and air conditioning equipment, etc.), away from windows or door to the outside, and avoid areas with poor air circulation.
  • Page 15 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 16 is a registered trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved. PTAC Direct Sales, Inc. 185 S. Kimball Ave. Suite 130 Southlake, TX 76092 877.454.7822 (T) 877.647.6408 (F)
