6.
Insert #8 wood screws into the four pilot holes. Tighten each screw into the mounting
surface until slightly less than 1/4 inch of the screw head protrudes.
7.
Align the mounting screws with the slots in the brackets and place the unit against the
surface, with the screws through the bracket slots.

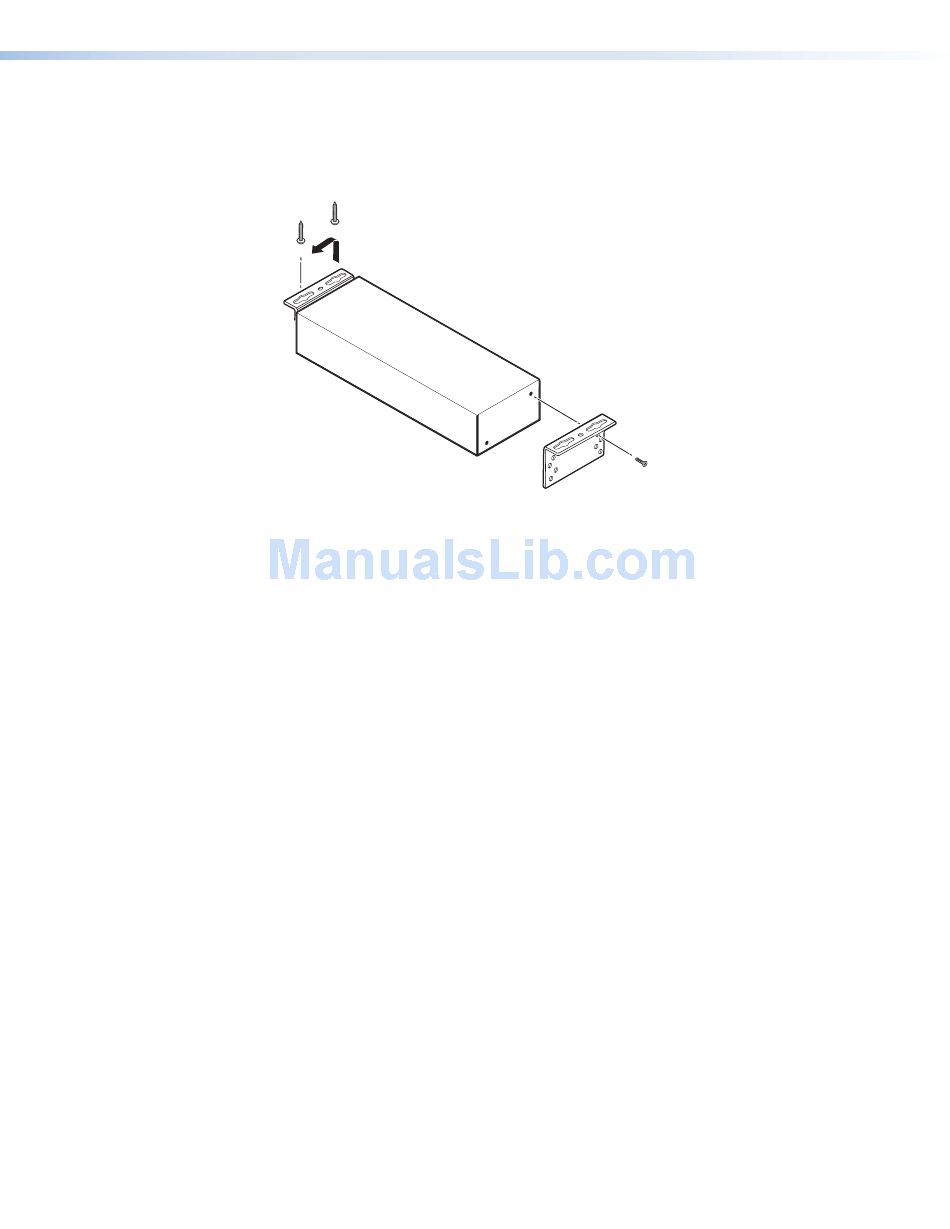

Figure 19.
Mounting the SW USB under Furniture
8.
Slide the unit slightly forward or back, then tighten all four screws to secure it in place.
SW USB Series • Reference Information
