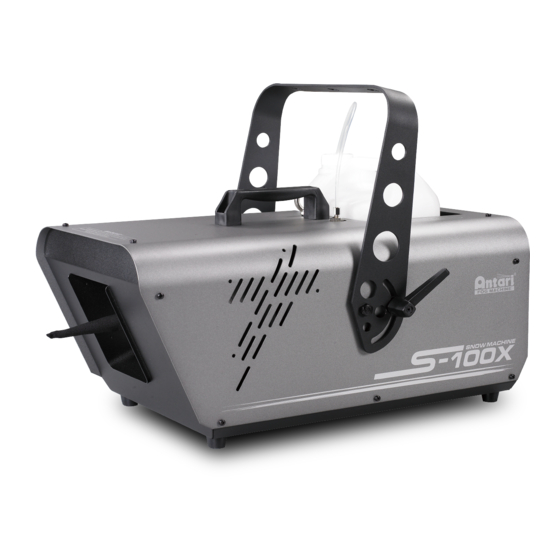

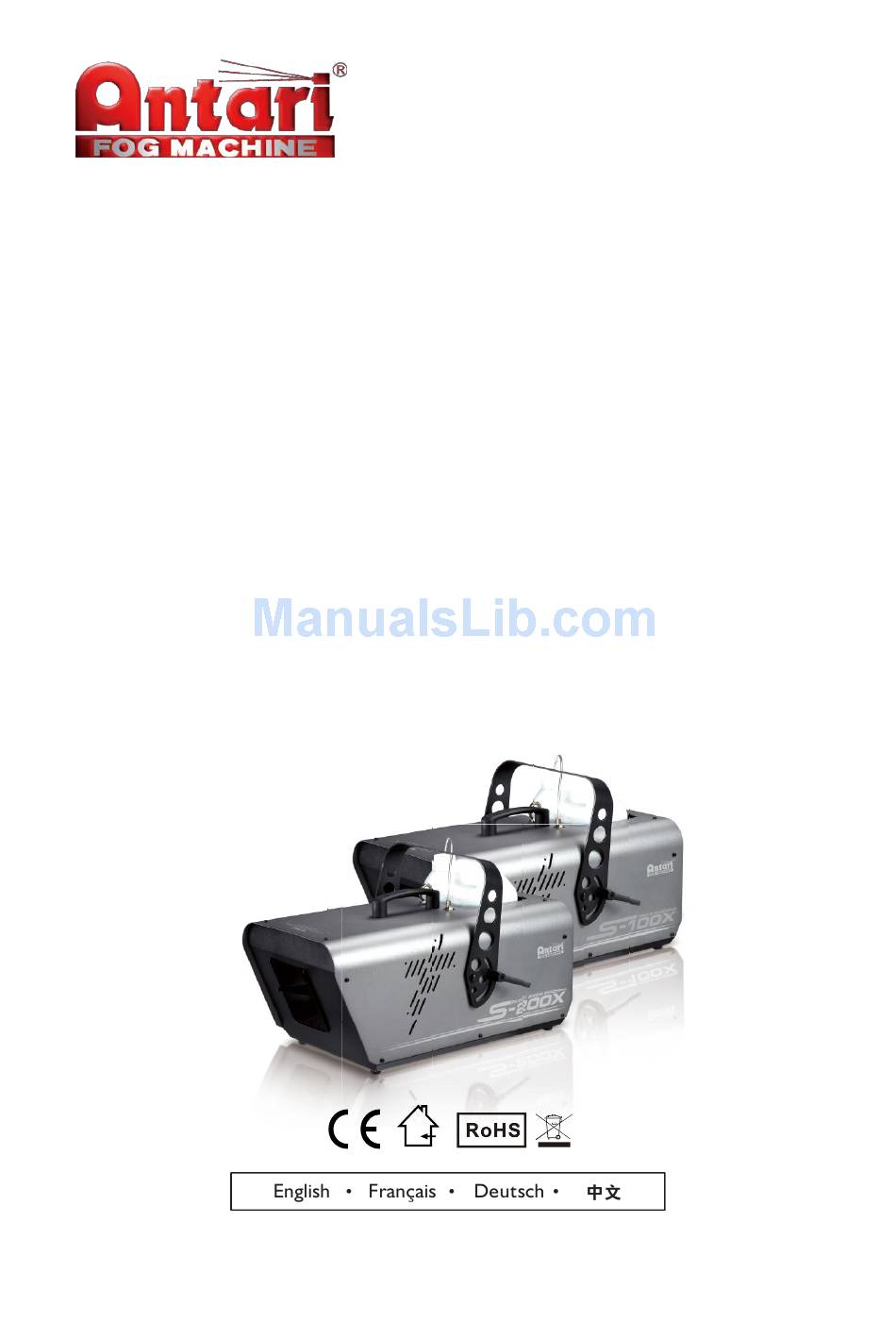

- Page 1 S-100X / S-200X Snow Machine User Manual © 2014 Antari Lighting and Effects Ltd.
-
Page 3: User Manual
Antari S-100X & S-200X Snow Machine Introduction Thank you for choosing an ANTARI Special Effects Machine. You now own a rugged and powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your ANTARI S-100X &... -
Page 4: Unpacking And Inspection
Always make sure there is sufficient liquid in the machine's liquid tank. If your ANTARI machine fails to work properly, discontinue use immediately. Drain all liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your ANTARI dealer for service. -
Page 5: Installation Note
4. Fill with ANTARI SL-5 Snow Liquid, ANTARI SL-5A Premium Snow Liquid or other high-quality, water-based snow liquid recommended by your dealer. Any other types of fluid can damage the unit. -
Page 6: Dmx Connector Pin Assignment
2. Turn on the machine by pressing the red power switch on the rear of the unit and make sure the red indicator that is located above the Power switch is lit. The units can be controlled by either DMX or the SC-2 volume remote control. See the respective topics below: 3. -
Page 7: Dmx Control
DMX Control Connect the DMX cord to the DMX IN socket on the rear of the machine. Test the system by activating the snow system's selected DMX channel. When the channel value is increased the snow machine should produce snow at a steadily increasing rate. - Page 8 Dip Switch Corresponding Chart Channel No. Dip Switch Example 1: Set DMX starting address to 69 Dip switch # 7 = 64 channel Dip switch # 3 = 4 channel Dip switch # 1 = 1 channel Total = 64 + 4 + 1 = 69 channel...
-
Page 9: Maintenance
This step helps to ensure that minimal debris will get into the machine or causes clogging. Snow Liquid Depending on the desired effect, use either ANTARI SL-5 Snow/Foam Liquid for normal snow or ANTARI SL-5A Snow Liquid for fast-dissipating snow. Technical Specifications MODEL S-100X &... - Page 10 C08S20X01...
